Hafele Wireless Adjustable Lighting Power Supply Kit for Fixed Shelving Systems

Hafele 833.88.986 Power Supply Kit for Adjustable Shelf Light System
12V Häfele Wireless Adjustable Shelf Lighting System

The Hafele 833.88.986 Power Supply Kit is designed to offer a convenient and efficient solution for integrating lighting into adjustable and fixed shelving systems, commonly used in closets, cabinets, and other storage spaces. This system allows for easy integration of lights, without the need for complicated cable management, making it an ideal choice for modern cabinetry designs.

Key Features:

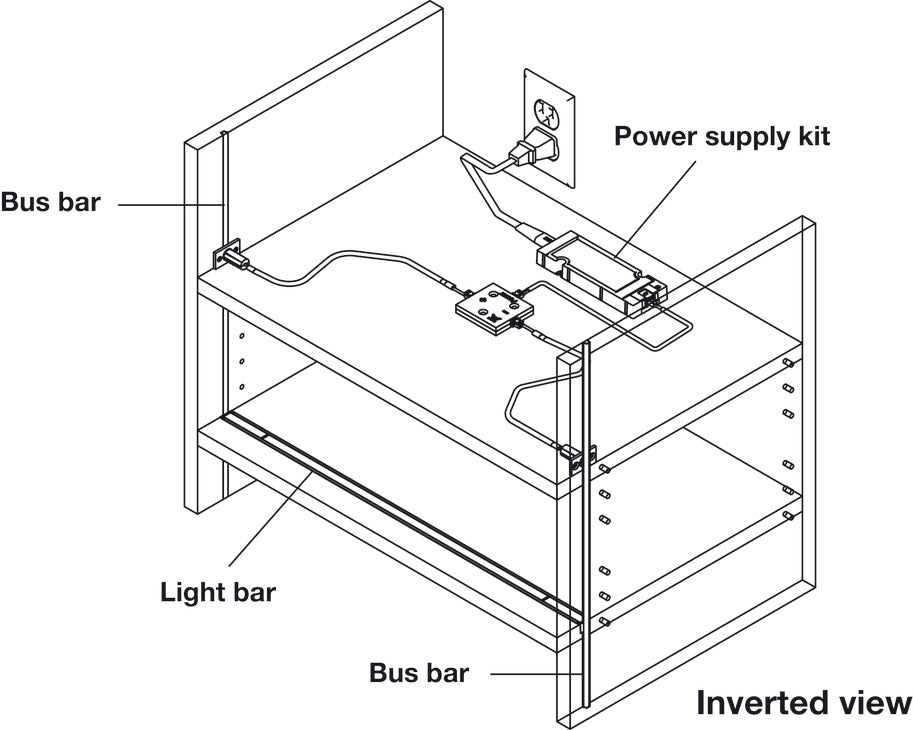

• Easy Installation: The Power Supply Kit is engineered for simple installation, whether placed at the top or bottom of the cabinet. It connects seamlessly to the Loox Driver to supply low voltage power to the Bus Bars.

• Wireless Adjustable Shelf Lighting: The system ensures that the height of adjustable shelves can be changed without concern for wiring connections, offering flexibility in shelving configurations.

• Efficient Manufacturing & Installation: The kit is designed with ease of manufacturing and installation in mind, streamlining the process while delivering high-performance lighting.

• Spring-Loaded Contact System: The spring-loaded contact assembly allows current to be transferred from the Bus Bar to the light bars, which are installed beneath the shelf for a sleek, integrated look.

• Bus Bar Compatibility: The system uses specially designed, brushed aluminum Bus Bars that are inserted into narrow vertical channels on the side panels of each cabinet or closet section. These Bus Bars allow for the flexible addition of lighting on adjustable shelves.

• No Additional Cables Needed: The light bars use a modular, plug-and-play connection system, with no additional cables or leads required for installation.

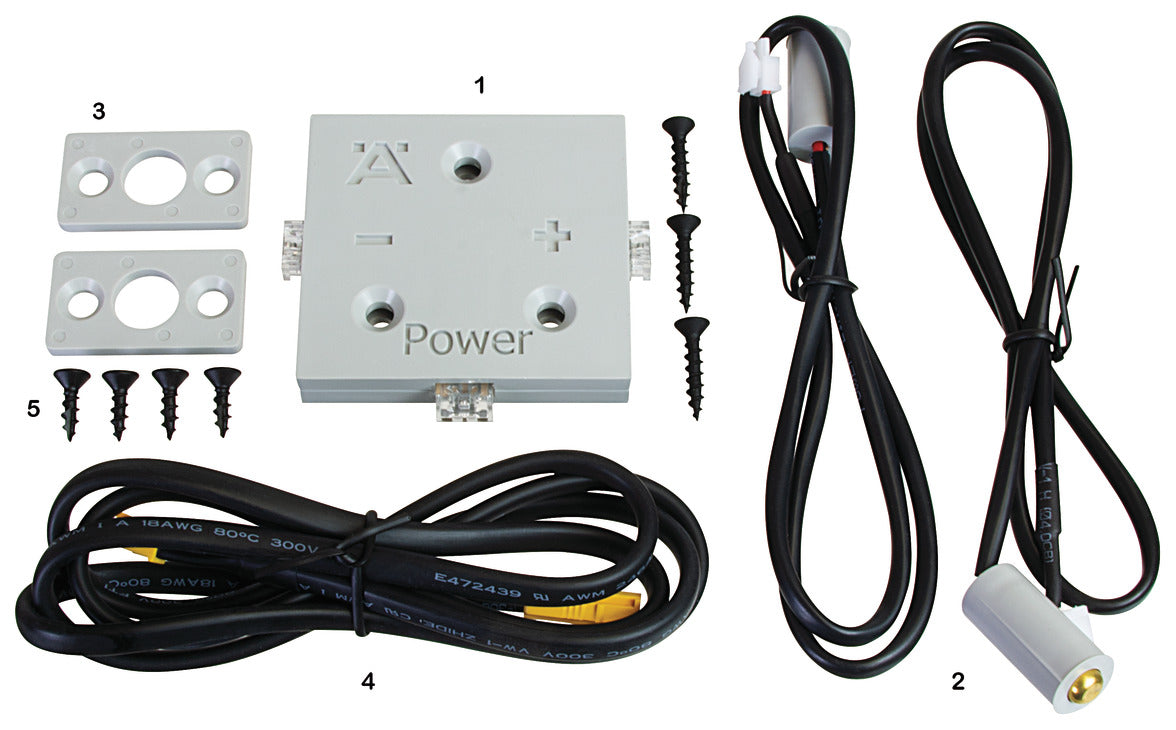

Supplied Components:

• 1 Splice Block with Clips
• 2 Spring Loaded Contact Connectors (with 500mm (19 11/16") cable and modular clips)
• 2 Mounting Brackets
• 1 Modular Power Cable (1 m / 39 3/8")
• Mounting Screws

Additional Information:

• For Wider Shelf Sections: For shelf sections wider than 914 mm (36"), an extension kit must be ordered separately.

• Drivers & Controls: The Loox Driver and controls are sold separately and must be ordered to complete the setup.

• Elegant Design: The Bus Bar’s thin design allows two bars to be applied back-to-back in a single panel, providing flexibility in installation and a clean, minimalistic appearance.

• Shelf Lighting: The light bars come in two types:

  • Medium Intensity 12V 2065 LED (3000K or 4000K) in 18", 24", 30", or 36" widths.
  • High Intensity 12V 2068 LED (3000K or 4000K) in 18", 24", 30", or 36" widths.

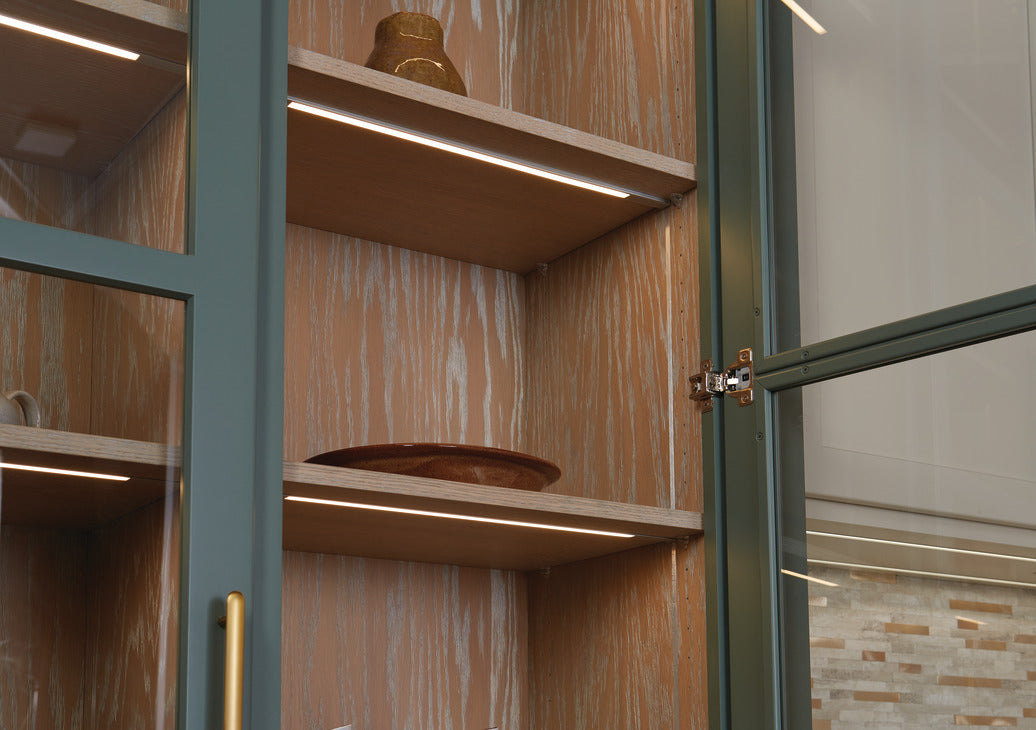

• Pre-Installed in Routed Shelf Channels: The light bars are ready to install into a routed shelf channel, ensuring quick setup and a seamless look.

• Lifetime & Certification: The system is ULc Certified and offers a long lifespan of 50,000 hours, ensuring durability and reliability over time.

Specifications:

• Power Supply Kit Connections: Connects to a Loox Driver to deliver a low-voltage current to the Bus Bars.
• Installation Location: Can be mounted at the top or bottom of the cabinet.
• Bus Bar Design: Designed to be inserted into narrow vertical channels within the cabinet or closet.
• Light Bars: Can be ordered in standard or custom lengths.
