Knape and Vogt Salice Full Inset Press-In Concealed Euro Free-Swinging Cabinet Door Hinge Kit with 90 Degree Opening Angle and 3-Way Adjustment - Pair

The Knape and Vogt Salice Full Inset Press-In Concealed Euro Free-Swinging Cabinet Door Hinge Kit with 90 Degree Opening Angle and 3-Way Adjustment - Pair. Designed with precision and durability in mind, this hinge offers a sleek and modern aesthetic for your cabinets. Its adjustable feature ensures a perfect fit, while its easy installation process makes it a preferred choice for both professionals and DIY enthusiasts. With smooth operation and a rust-resistant finish, this hinge promises longevity and a seamless cabinet door functionality. Elevate the look and functionality of your cabinets with this precision-engineered hardware.

• Constructed of steel for long lasting durability
• Three-way cam hinges provide fast and easy door adjustments. Horizontal, vertical and depth changes can be made without loosening any screws. These three adjustments make it easier than ever to fine-tune the fit of pocket doors such as those found on entertainment centers and computer workstations
• Packaged for use with KV 8071, 8081 and 8091 Pocket Door Systems. Packaging includes hinge bases, hinges, mounting screws and cover caps
• Four types of hinges are available to fit a wide varity of pocket door applications - standard inset, free swing, partial overlay and extra-thick doors

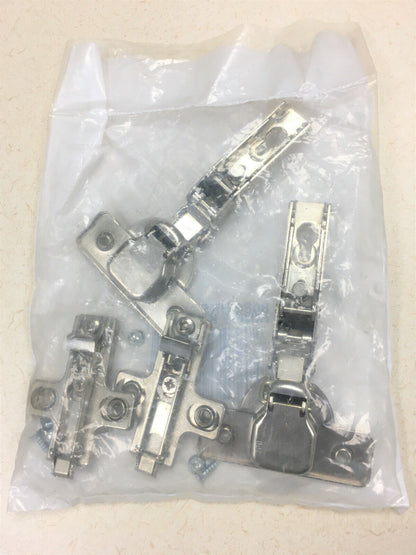

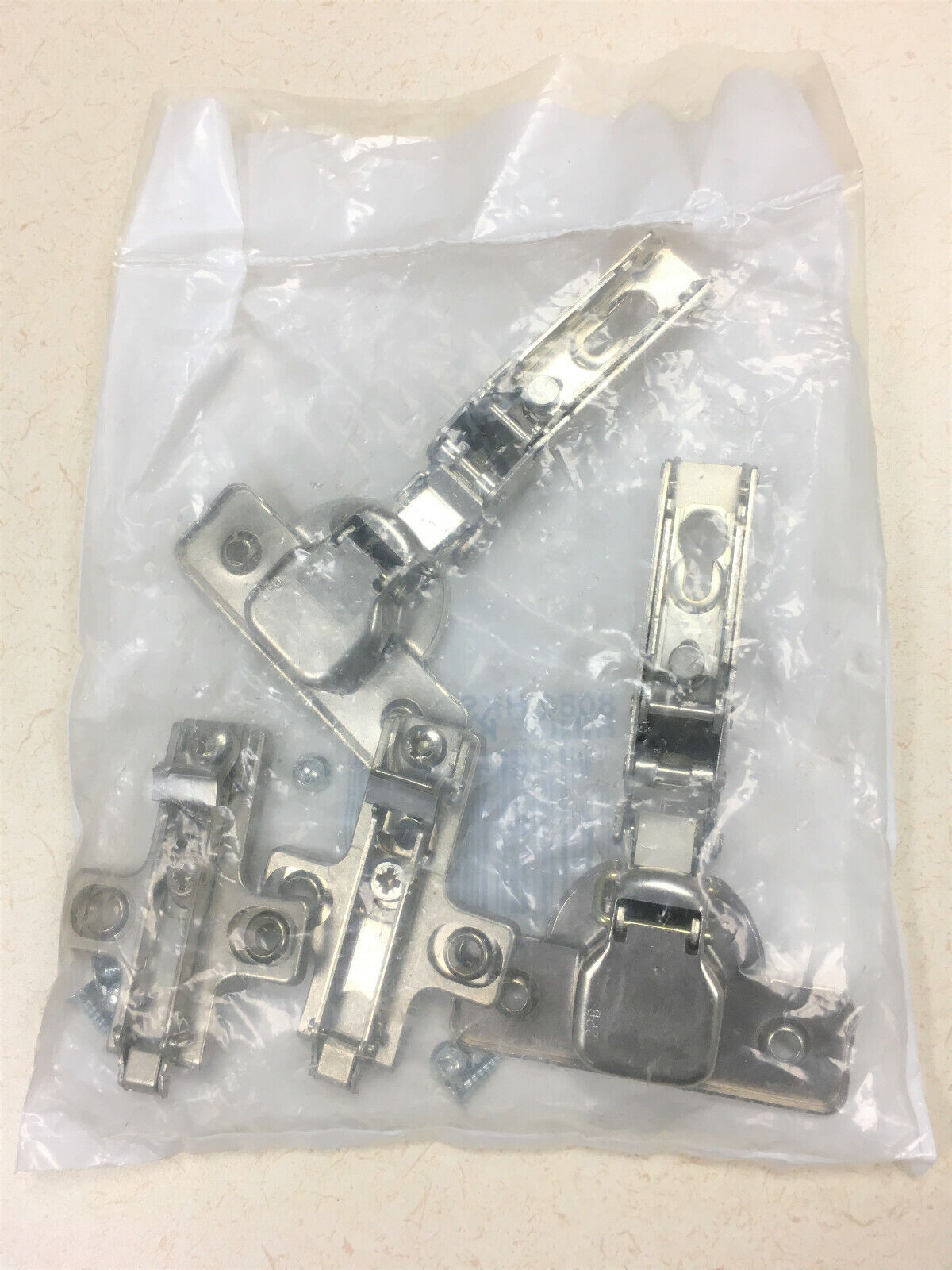

• Each Kit Includes: two (2) hinges, two (2) mounting plates and installation hardware
• Backed by the exclusive Knape & Vogt Limited Lifetime Warranty

Pocket/flipper door hinges for standard free swing Inset Press-In Concealed Euro Cabinet Door Hinge Kit for 3/4" maximum door thickness on either frameless or face-frame cabinets. Can be used with slides in the EZ Pocket Door System for doors that weigh up to 30 lbs. and are a maximum of 42" tall x 24" wide or with slides in the Pocket Door System for doors up to 75 lbs. and 72" tall x 26" wide. Require 40mm hinge cup holes. Note: The EZ Pocket Door System requires one set of hinges per door. The KV8091 Pocket Door System requires two sets of hinges per door.

Specifications:
Cup Diameter: 35 mm
Bore Distance: 7 mm
Hinge Mount: Full Inset
Door Thickness: 3/4" (19 mm)
Opening Angle: 90 Degree
Height Adjustment: +/- 2 mm
Depth Adjustment: +2.8 mm / -.5 mm
Side to Side Adjustment: +4.5 mm/-.2 mm
Material: Steel
Mount Type: Press-In

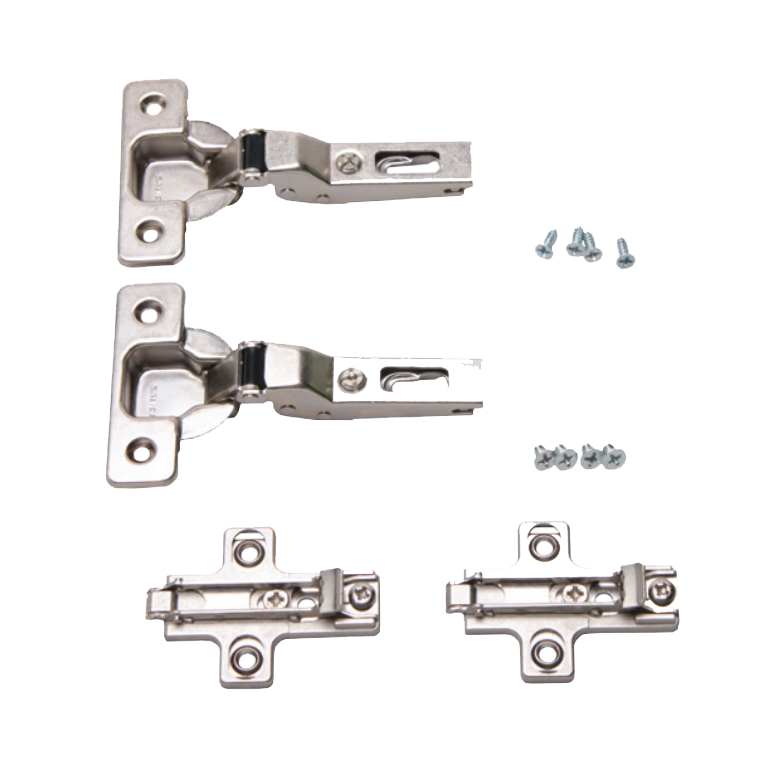

Each Kit Includes: Two (2) hinges, Two (2) mounting plates and installation hardware
