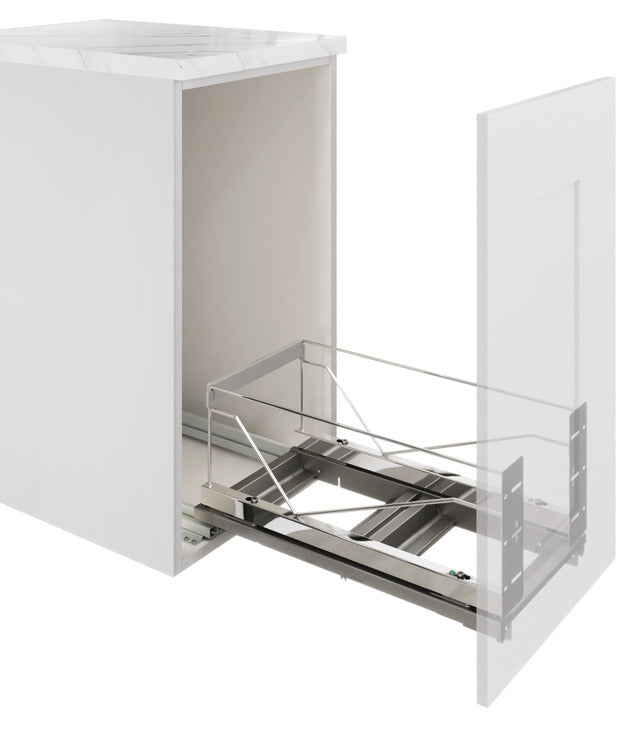

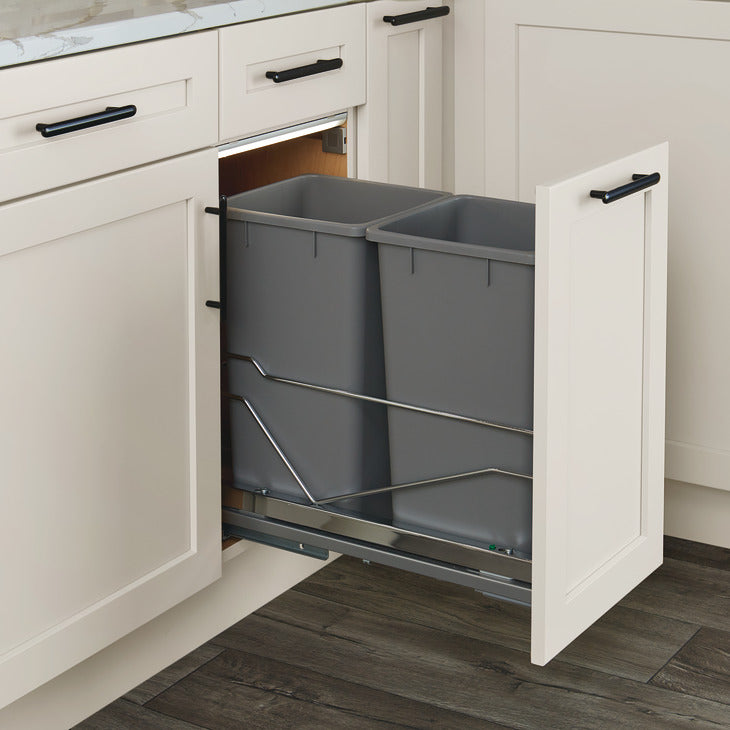

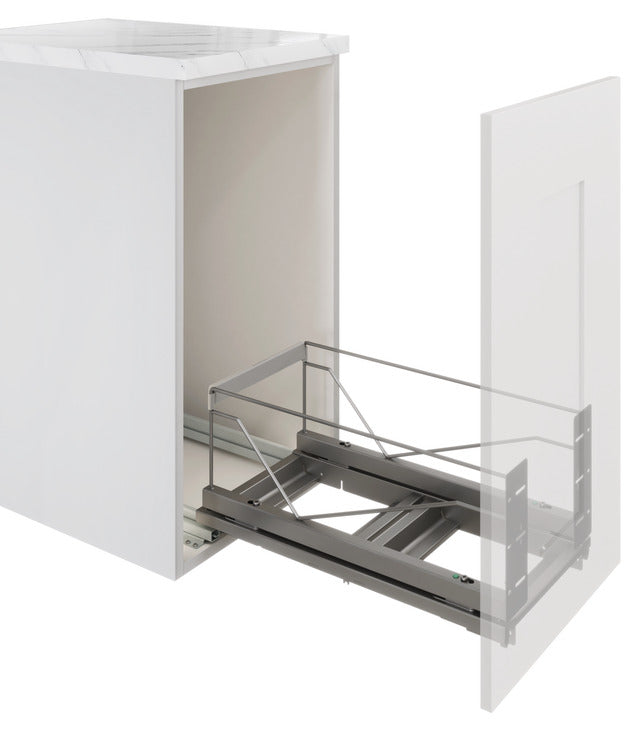

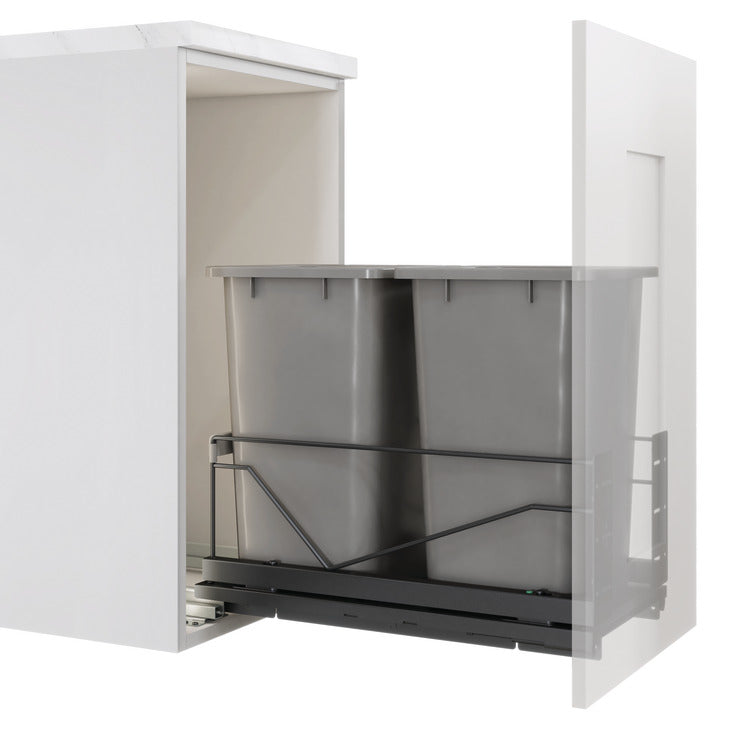

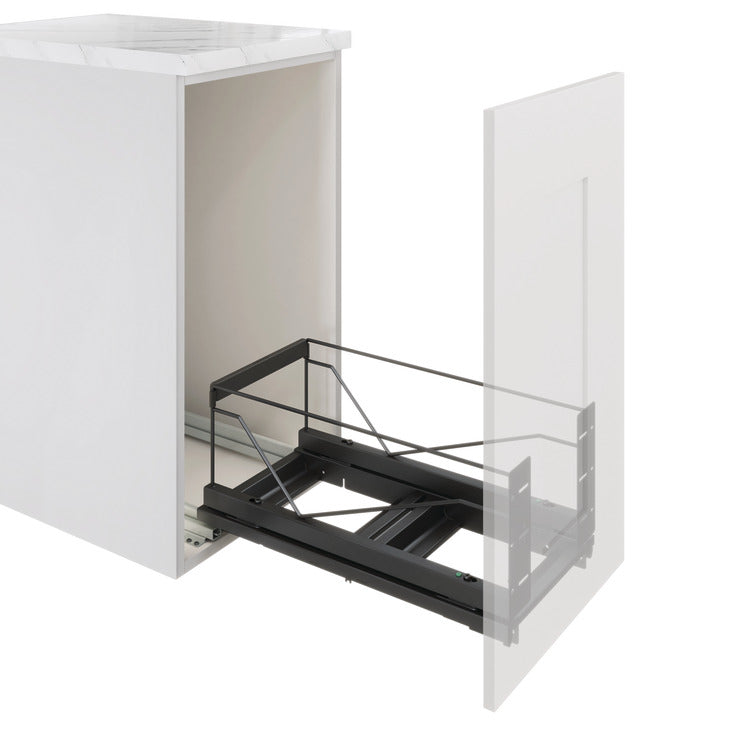

Hafele Premium Bottom-Mount 2 x 28 qt. Bins Pullout Trash System with Soft Close and Door Mounting Brackets

Kesseböhmer – Hafele Waste Bin Pull-Out Double Bin Bottom Mounted

Upgrade your kitchen waste management with the premium Kesseböhmer pull-out trash system by Hafele. This bottom-mounted solution features two 28 qt bins and is designed to fit 15" cabinet widths. With multiple modern finish combinations and a soft & silent closing mechanism, this unit offers both style and function.

The reinforced “V-Rail” side rails provide enhanced stability—especially for full-height cabinet doors—while the included drilling template ensures quick, precise installation. Optional “auto open” functionality adds hands-free convenience with a simple nudge.

Key Features:

• Designed for 15" cabinet width
• Equipped with 2 x 28 qt bins

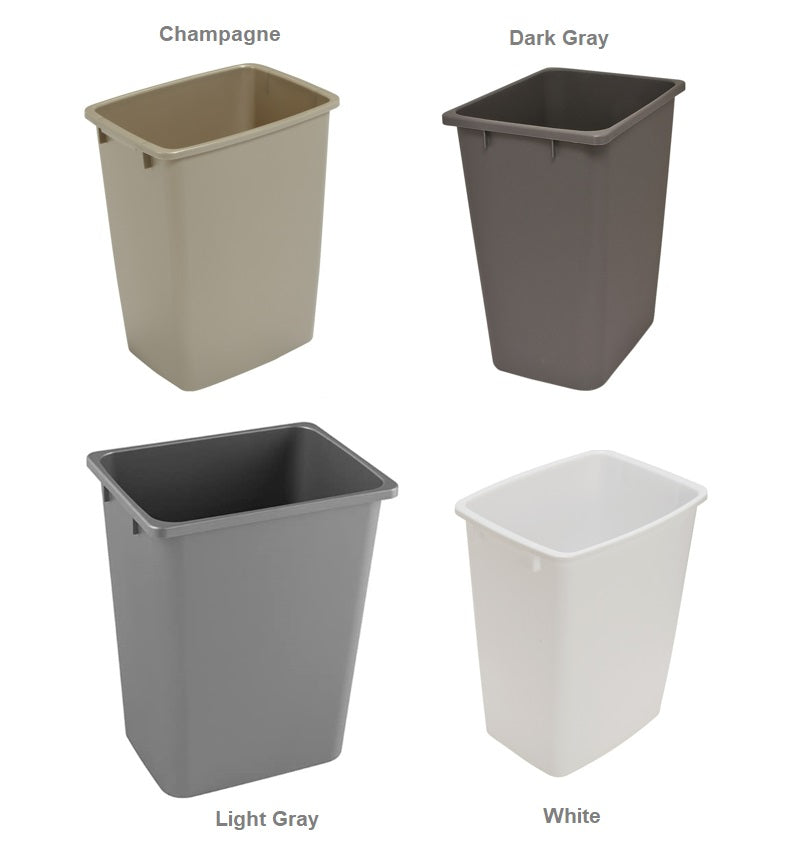

• Frame color and bin combinations:
  • Chrome frame with white bins
  • Anthracite frame with dark gray bins
  • Champagne frame with champagne bins
  • Silver frame with light gray (silber) bins
• Soft & silent close mechanism
• Quick installation with included drilling template for floor and door
• Easy front adjustment in all directions
• Reinforced “V-Rail” side rails for full-height door stability
• Optional auto-open feature for hands-free access

Specifications:

• Capacity: 2 x 28 qt bins
• For internal cabinet height: 610 mm (24")
• Installation cabinet measurements required: 11 1/2" width x 23 3/8" depth x 19" height
• Suitable for use in face frame or frameless cabinets
• Version: Soft & Silent
• Minimum cabinet opening width:
  • Face frame: 292 mm (11 1/2")
  • Frameless: 319 mm (12 9/16")
• Actual width of sliding unit: 283 mm (11 1/8")
• Load bearing capacity: 100 lbs
• Number of bins: 2 included

Supplied With:

• 1 metal frame
• 2 x 28 qt bins
