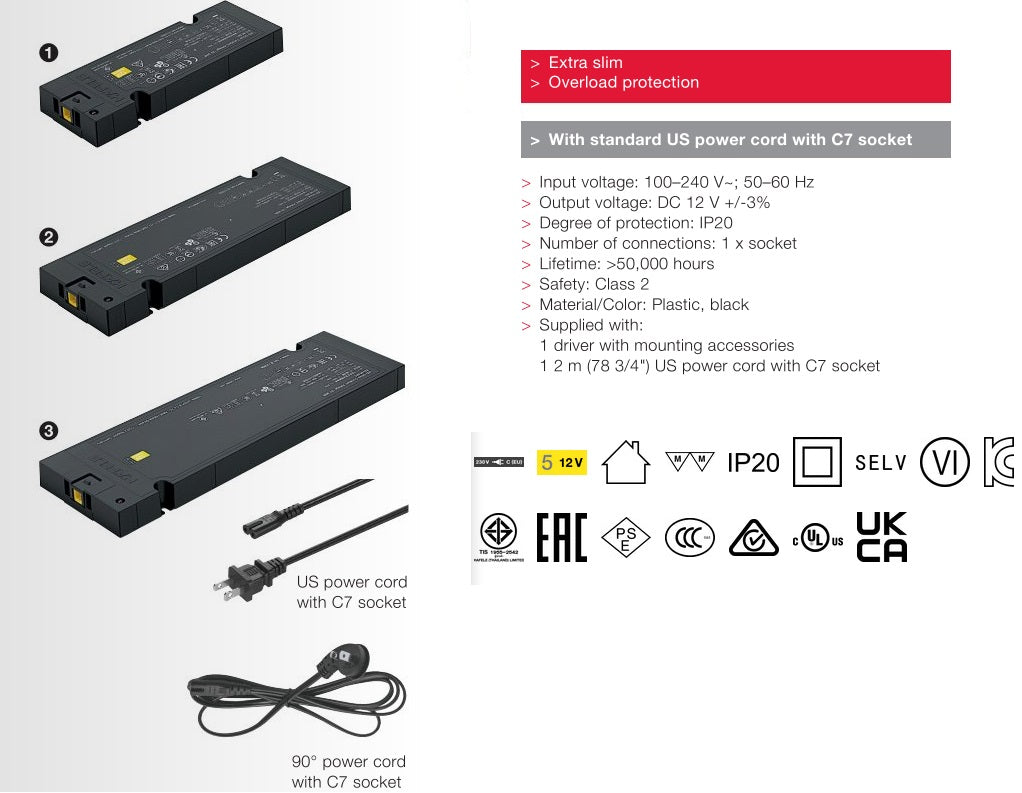

Hafele Loox5 Driver Constant Voltage AC to 12 volts DC with 90 Degree Power Cable

Hafele Loox5 Drivers with different wattage options (20W, 40W, and 60W), designed to convert AC to 12V DC with a 90-degree power cable for use with Loox5 LED lighting systems.

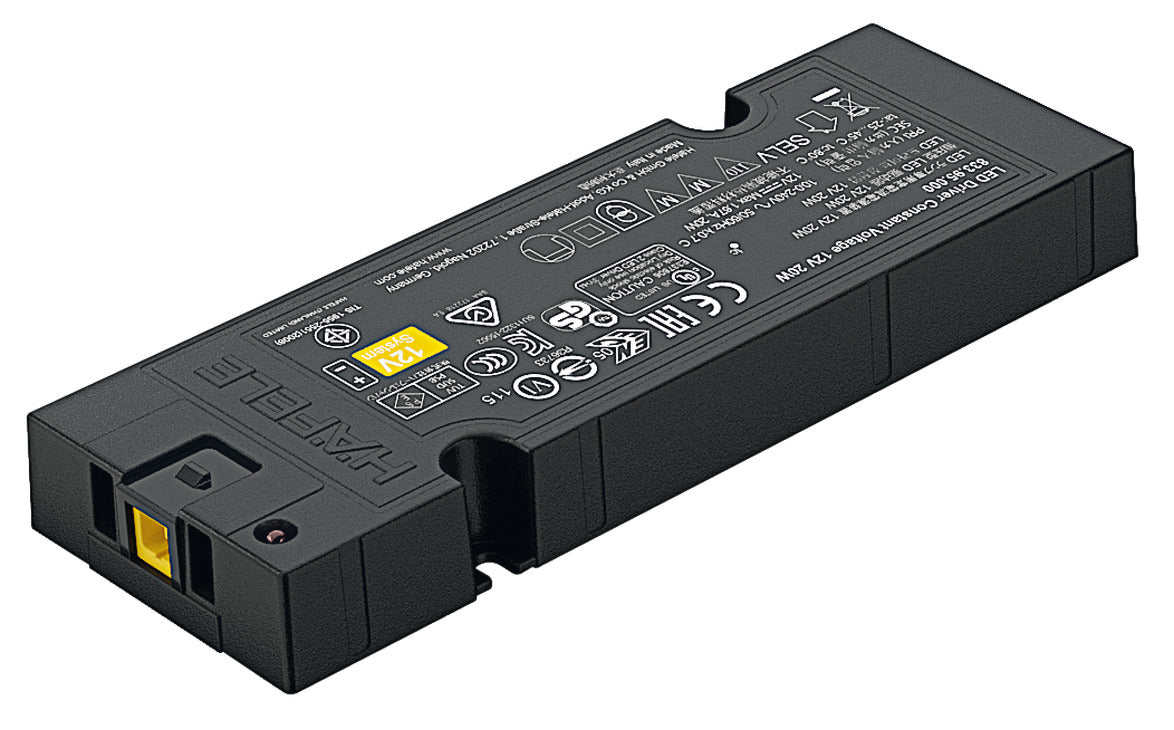

Hafele Loox5 Driver (20W)

• Model: Loox5 20W Driver
• Input Voltage: 100-240 V AC (Mains)
• Output Voltage: 12V DC
• Power Output: 20W
• Mains Frequency: 50–60 Hz
• Plug Type: C (flat Euro plug, 2-pin)

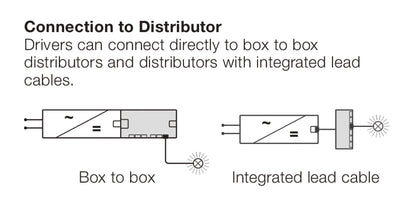

• Connections: 1 x Loox5 2-pin 12V socket (box-to-box)
• Secondary Circuit: Parallel connection
• Color/Finish: Black
• Installation: Can be mounted using screws. Ensure adequate air supply and circulation at the mounting location. Provide an inspection opening.
• Overload Protection: Yes
• Temperature Range: -25°C to +45°C
• Service Life: Doubled if installed in ambient temperatures below 30°C.
• Max. Lead Length from Driver to Consumer: 10 m
• Special Considerations: Long cable lengths may cause voltage loss and visible dimming of lights. Ensure that the voltage drop is within acceptable limits to maintain proper brightness.

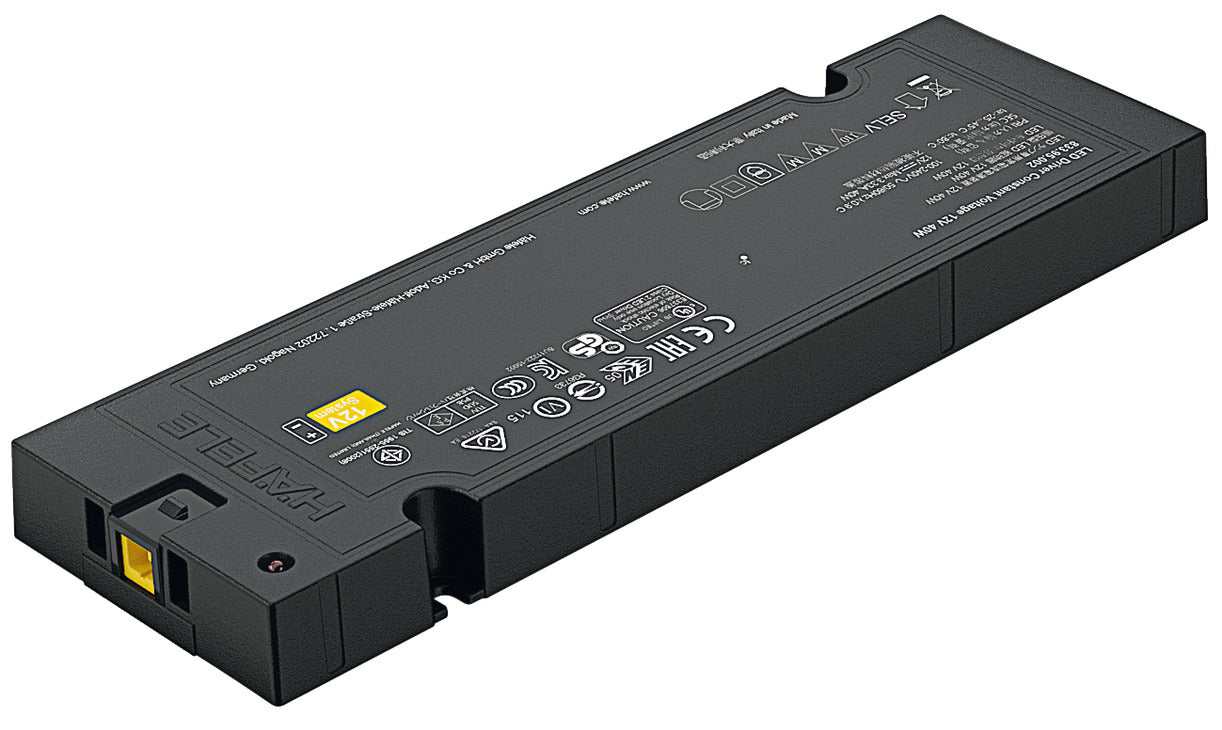

Hafele Loox5 Driver (40W)

• Model: Loox5 40W Driver
• Input Voltage: 100-240 V AC (Mains)
• Output Voltage: 12V DC
• Power Output: 40W
• Mains Frequency: 50–60 Hz
• Plug Type: C (flat Euro plug, 2-pin)
• Connections: 1 x Loox5 2-pin 12V socket (box-to-box)
• Secondary Circuit: Parallel connection
• Color/Finish: Black
• Installation: Can be mounted using screws. Ensure adequate air supply and circulation at the mounting location. Provide an inspection opening.
• Overload Protection: Yes
• Temperature Range: -25°C to +45°C
• Service Life: Doubled if installed in ambient temperatures below 30°C.
• Max. Lead Length from Driver to Consumer: 10 m
• Special Considerations: Long cable lengths may cause voltage loss and visible dimming of lights. Ensure that the voltage drop is within acceptable limits to maintain proper brightness.

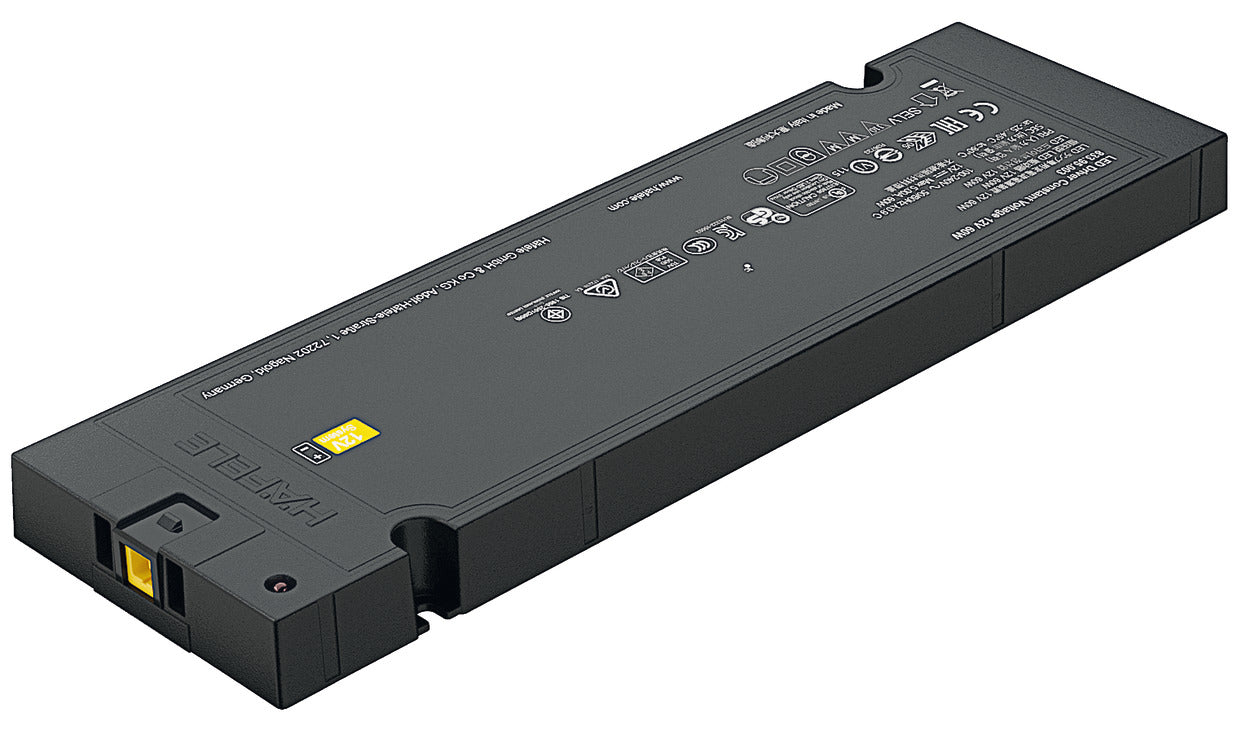

Hafele Loox5 Driver (60W)

• Model: Loox5 60W Driver
• Input Voltage: 100-240 V AC (Mains)
• Output Voltage: 12V DC
• Power Output: 60W
• Mains Frequency: 50–60 Hz
• Plug Type: C (flat Euro plug, 2-pin)
• Connections: 1 x Loox5 2-pin 12V socket (box-to-box)
• Secondary Circuit: Parallel connection
• Color/Finish: Black
• Installation: Can be mounted using screws. Ensure adequate air supply and circulation at the mounting location. Provide an inspection opening.
• Overload Protection: Yes
• Temperature Range: -25°C to +45°C
• Service Life: Doubled if installed in ambient temperatures below 30°C.
• Max. Lead Length from Driver to Consumer: 10 m
• Special Considerations: Long cable lengths may cause voltage loss and visible dimming of lights. Ensure that the voltage drop is within acceptable limits to maintain proper brightness.

General Features and Information for All Loox5 Drivers:

• Voltage Loss: Voltage losses may occur with longer cable lengths, especially when operating large loads such as long LED strips. This can result in a reduction in light brightness.
• Overload Protection: All versions include overload protection for enhanced safety during operation.
• Installation Requirements: Ensure that the driver has adequate ventilation and air circulation where it is installed to prevent overheating. An inspection opening is recommended for easy maintenance.
• Order Reference: Alternative mains leads are available with open cable ends or switches, which can be ordered separately.
• Service Life: The expected service life is significantly increased if the driver is installed in an environment with temperatures below 30°C.

These drivers are suitable for use with Loox5 LED lighting systems, providing a reliable and efficient power supply for various adjustable and fixed shelving systems in cabinetry and furniture.
