Hafele Miter Flap Cabinet Steel Hinge GS 45/90 1.5mm (1/20'') Wide with 135° Opening Angle for Doors and Flaps

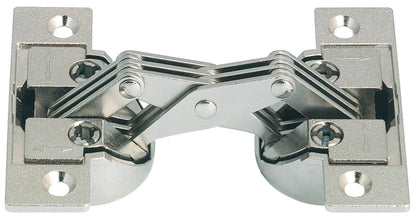

Häfele Miter Hinge GS 45/90 – 135° Opening Angle

Crafted in Germany for Precision and Durability

Enhance your cabinetry with the Häfele Miter Hinge GS 45/90, the only concealed hinge designed for furniture structures with mitered cabinet corners and doors. With a 135° opening angle, this hinge ensures seamless functionality and remains completely invisible when the door is closed.

Key Features

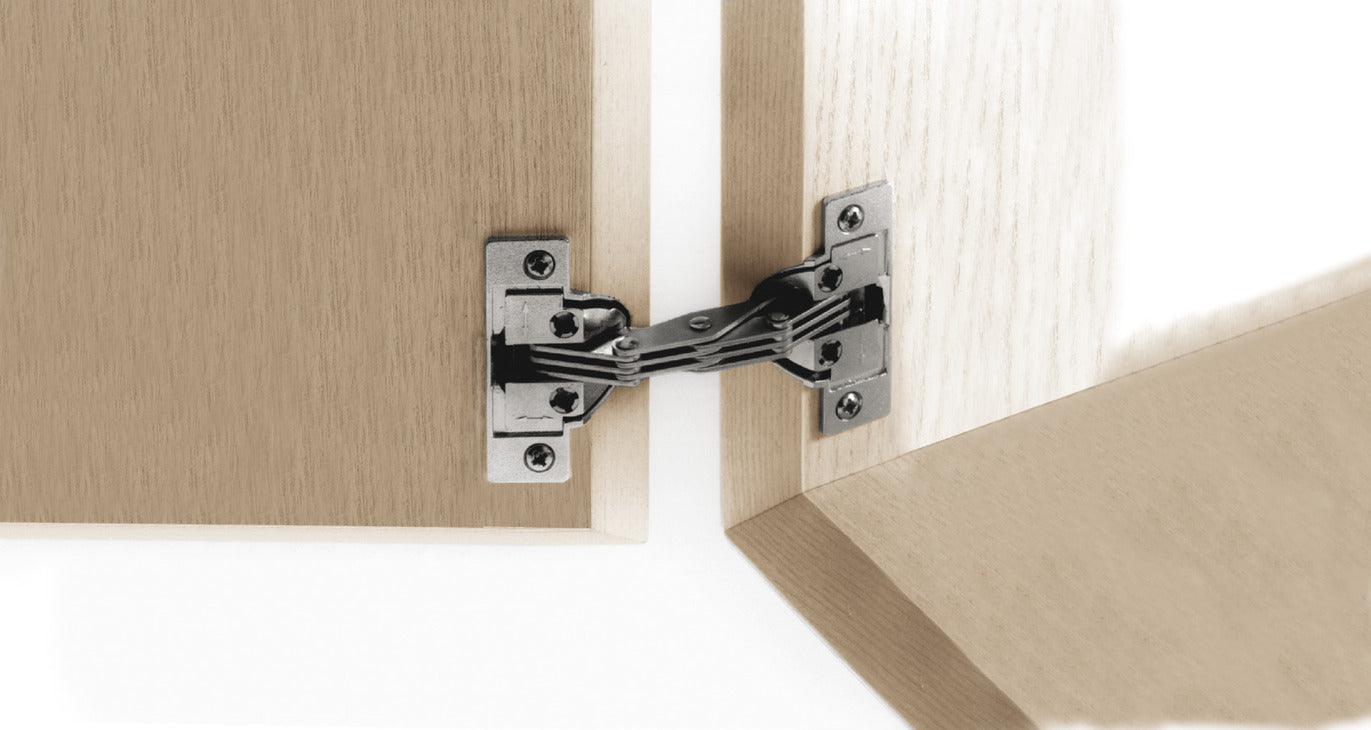

Concealed Design
Remains invisible when the door is closed, maintaining a sleek and clean appearance.

Versatile Application
Suitable for both doors and flaps, offering flexibility in cabinetry design.

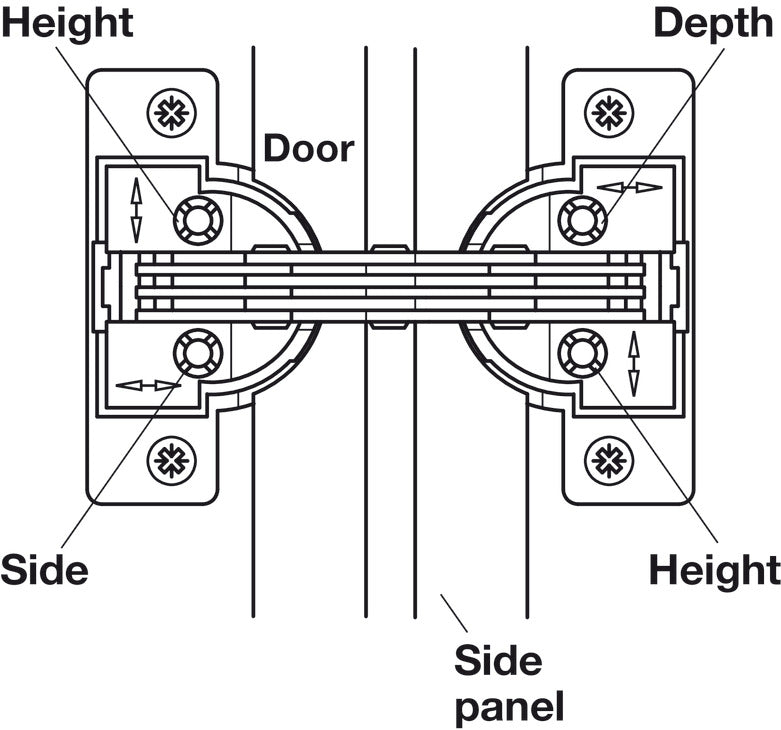

Adjustable Settings

• Side Adjustment: ±1.5mm
• Depth Adjustment: ±1.5mm
• Height Adjustment: ±3mm

Easy Installation
Screw-mounted for secure and straightforward assembly.

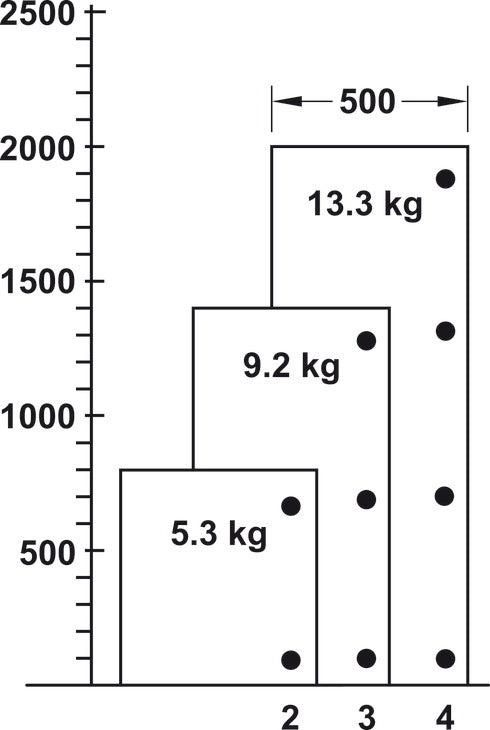

Compatible Dimensions

• Door Thickness: 16–22mm
• Side Panel Thickness: 16–20mm
• Cup Drilling Depth: 13.50mm

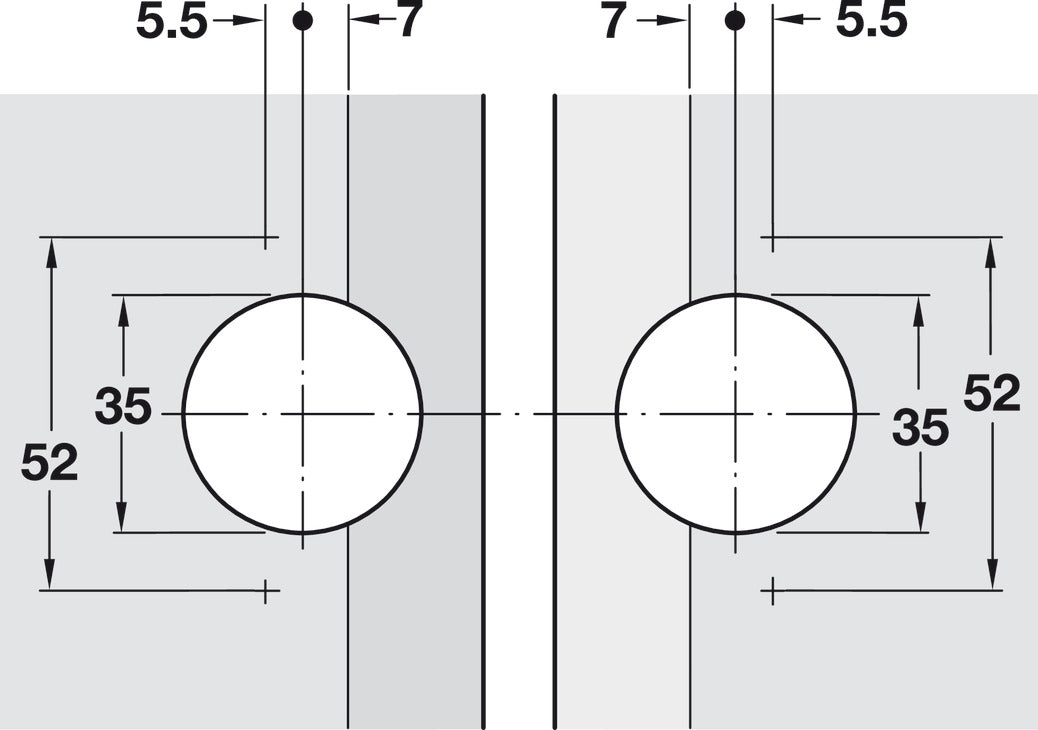

• Cup Diameter: 35.00mm

Door Material
Ideal for wooden doors with cup drilling for assembly.

Premium Materials

• Cup: Zinc Alloy
• Hinge Arm: Steel
• Finish: Nickel Plated

Specifications

🔹 Opening Angle: 135°
🔹 Cup Fixing: For screw fixing

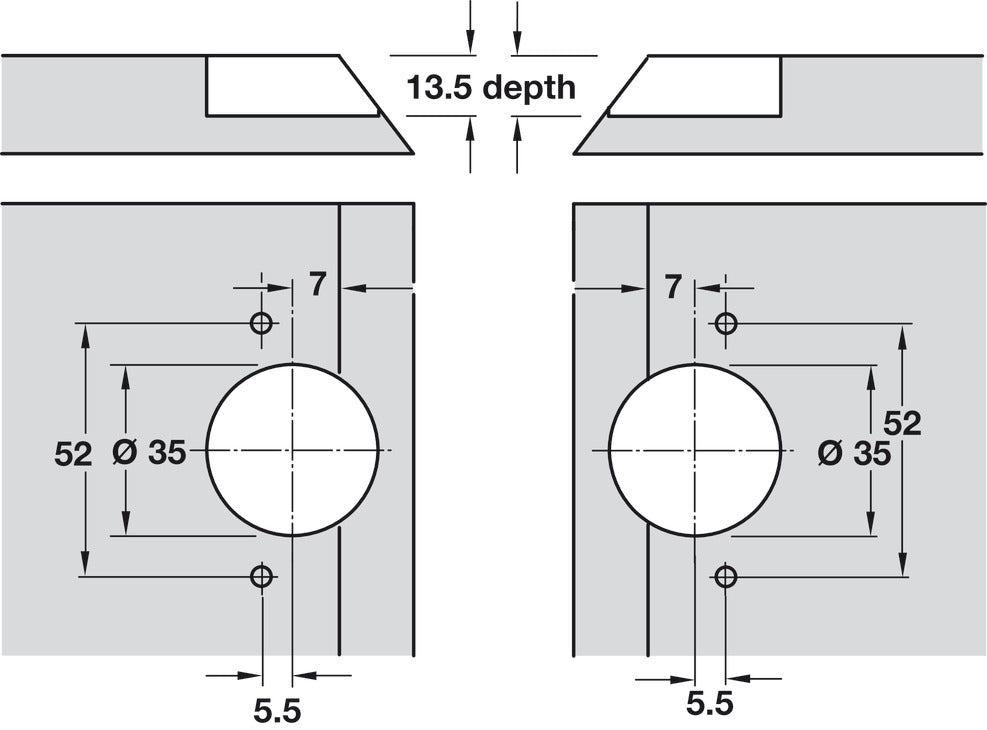

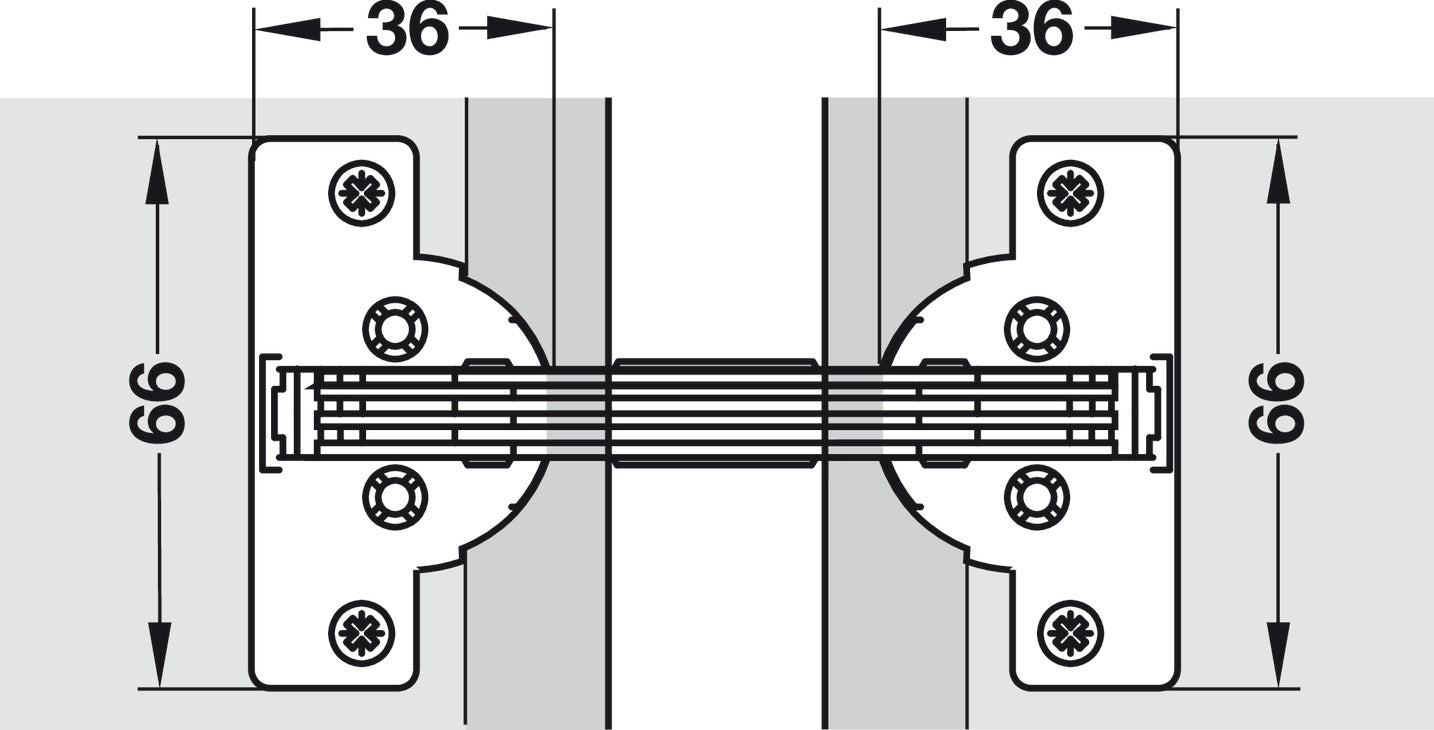

🔹 Drilling Pattern: 52/5.5

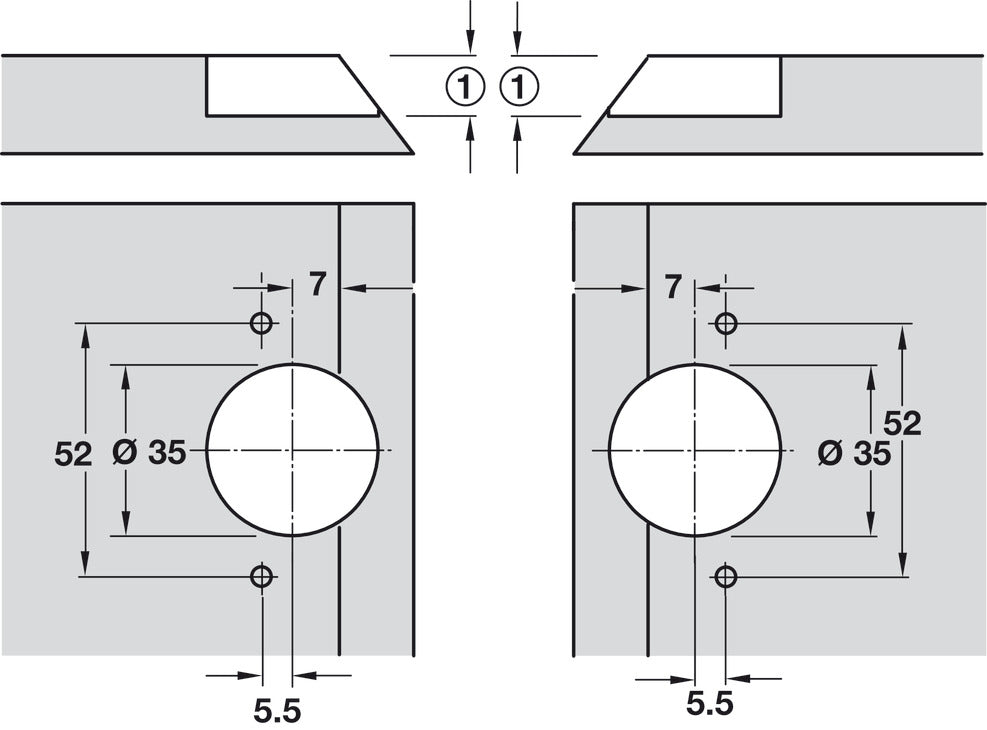

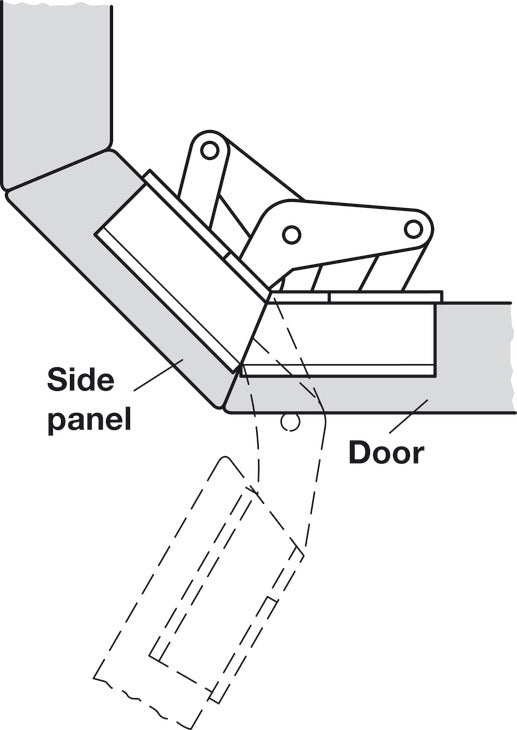

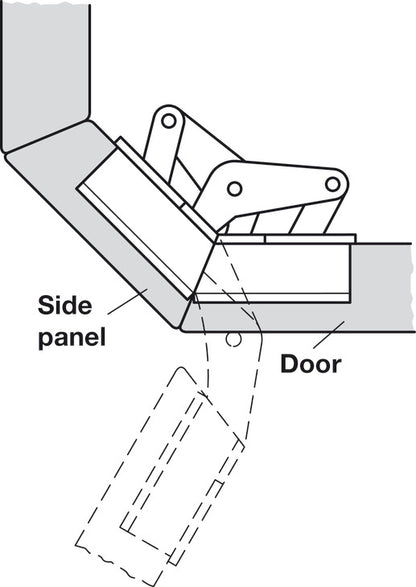

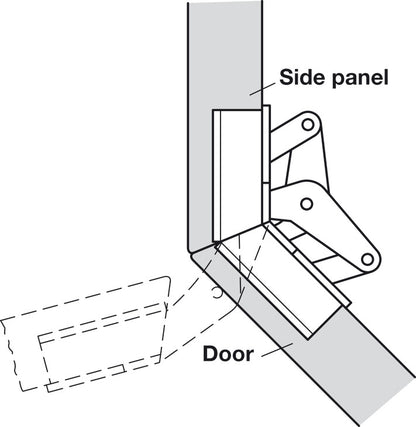

🔹 Chamfer Requirement: 45° chamfer on edges; provide 2mm door gap all around.

Installation Reference: For side panel thicknesses of 20mm, edges must be chamfered by 3mm.

Recommended Uses for Miter Flap Cabinet Hinge GS 45/90

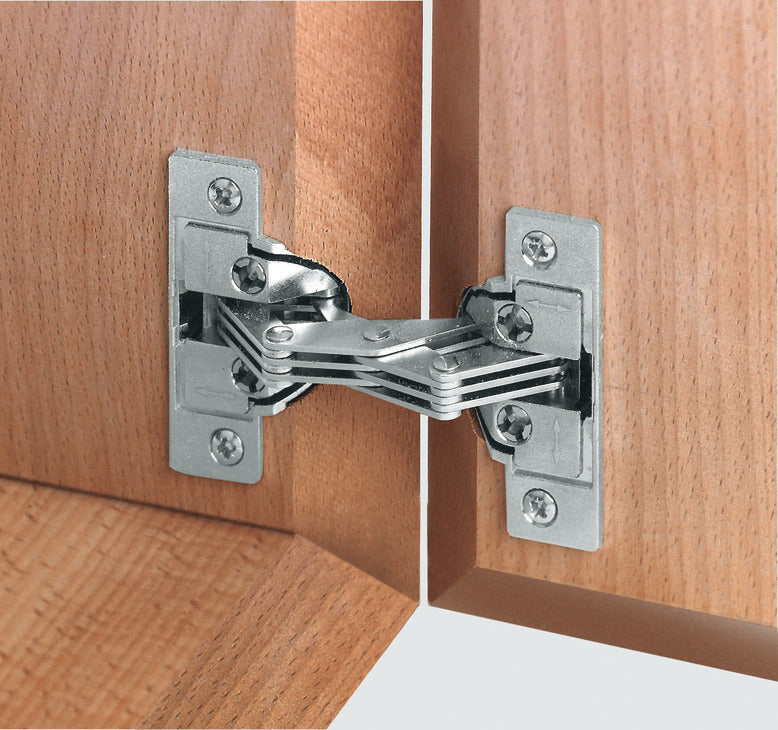

✅ Cabinet Doors
Perfect for mitered cabinet corners and furniture structures.

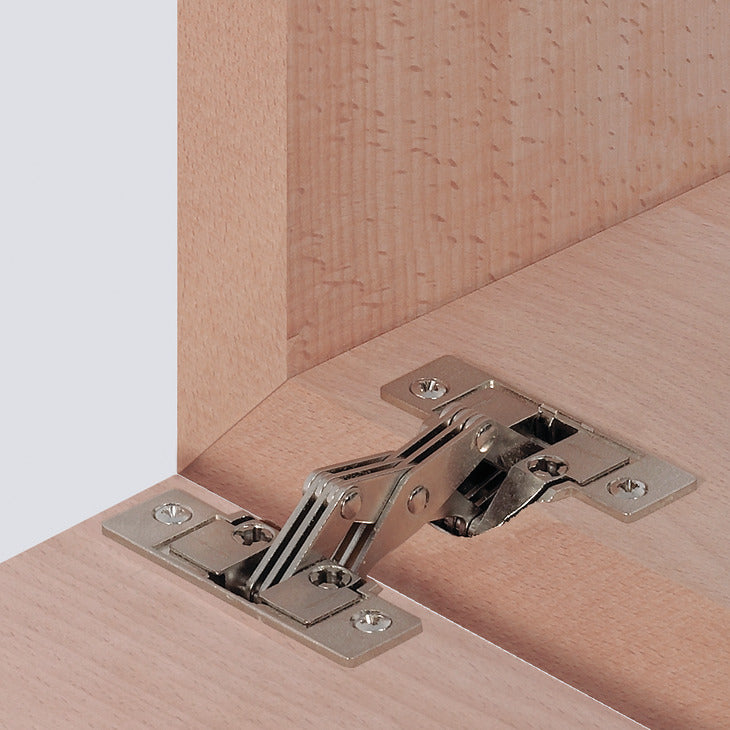

✅ Flap Doors
Ensures smooth operation for flap and lid-style doors.

✅ Invisible Integration
Concealed design for modern and sleek cabinetry.

✅ Versatile Cabinetry
Ideal for residential and commercial furniture projects requiring mitered joints.

Why Choose the Häfele Miter Hinge GS 45/90?

Made in Germany
Engineered with precision and crafted from premium materials for lasting performance.

Designed for Professionals
Built for cabinetmakers and DIY enthusiasts who demand quality and reliability.

Elegant Aesthetics
Nickel-plated finish complements a variety of cabinet styles.

Functional Excellence
Combines easy installation, adjustability, and seamless integration for flawless cabinetry.

Upgrade your cabinetry with the Häfele Miter Hinge GS 45/90 – the ultimate hinge solution for precise, functional, and visually appealing furniture designs.

Order now and experience unmatched German engineering!
