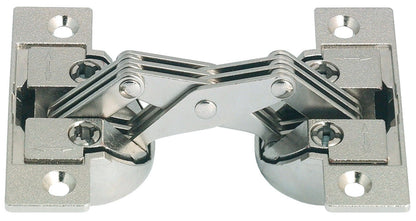

Häfele Miter Hinge GS 45/90 – 135° Opening Angle
Crafted in Germany for Precision and Durability

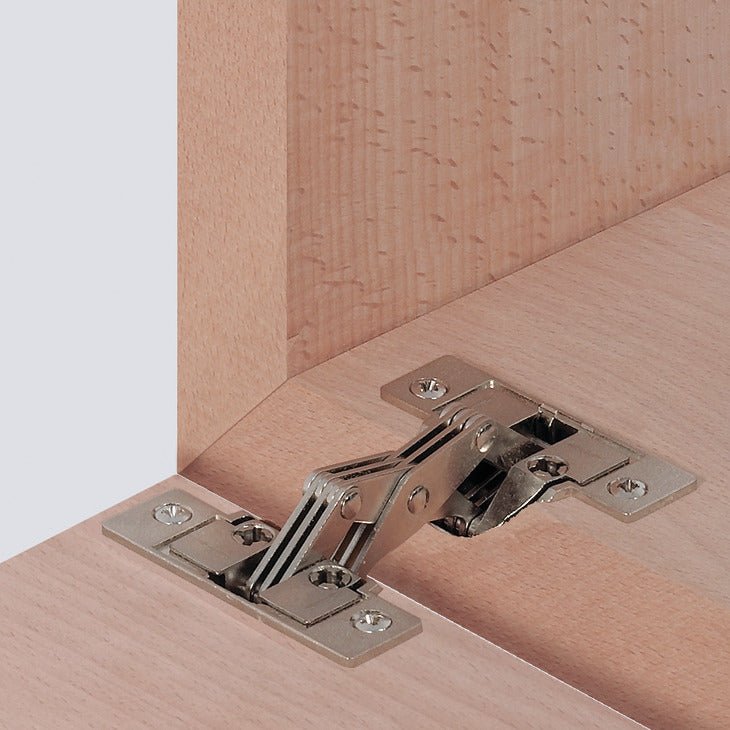

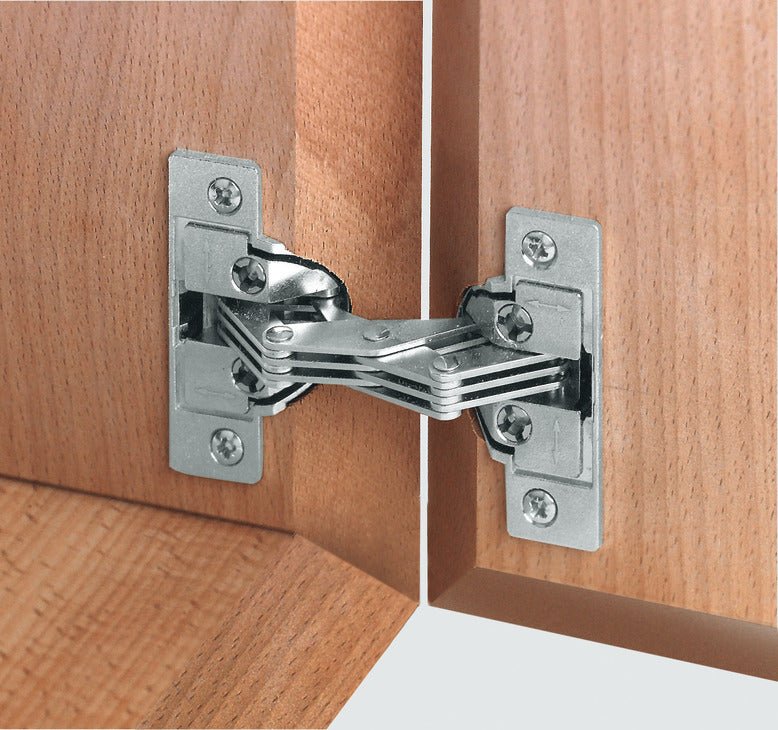

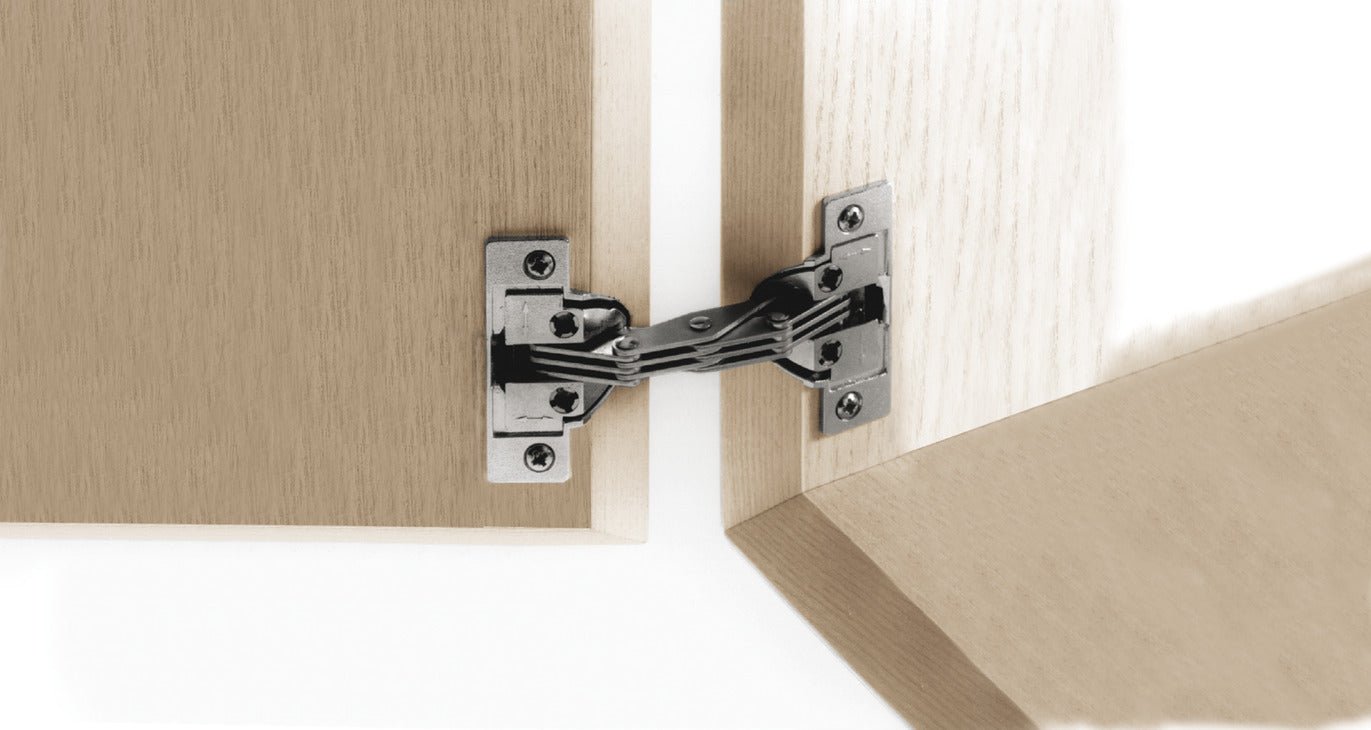

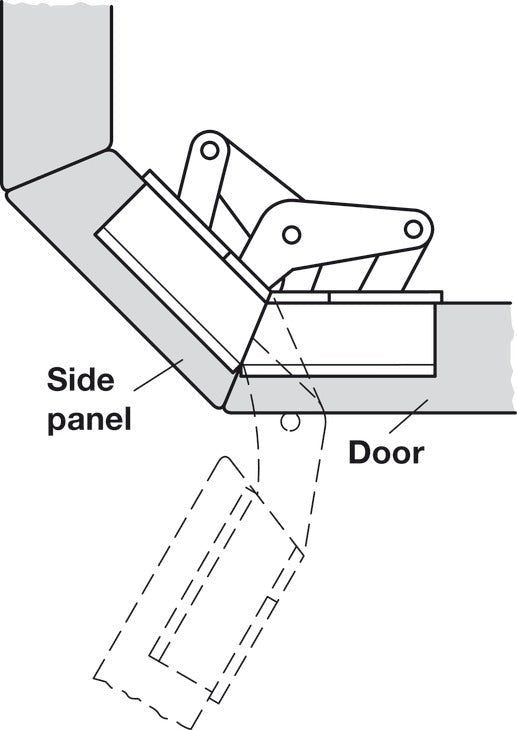

Enhance your cabinetry with the Häfele Miter Hinge GS 45/90, the only concealed hinge designed for furniture structures with mitered cabinet corners and doors. With a 135° opening angle, this hinge ensures seamless functionality and remains completely invisible when the door is closed.
Key Features
✨ Concealed Design
Remains invisible when the door is closed, maintaining a sleek and clean appearance.
🔄 Versatile Application
Suitable for both doors and flaps, offering flexibility in cabinetry design.

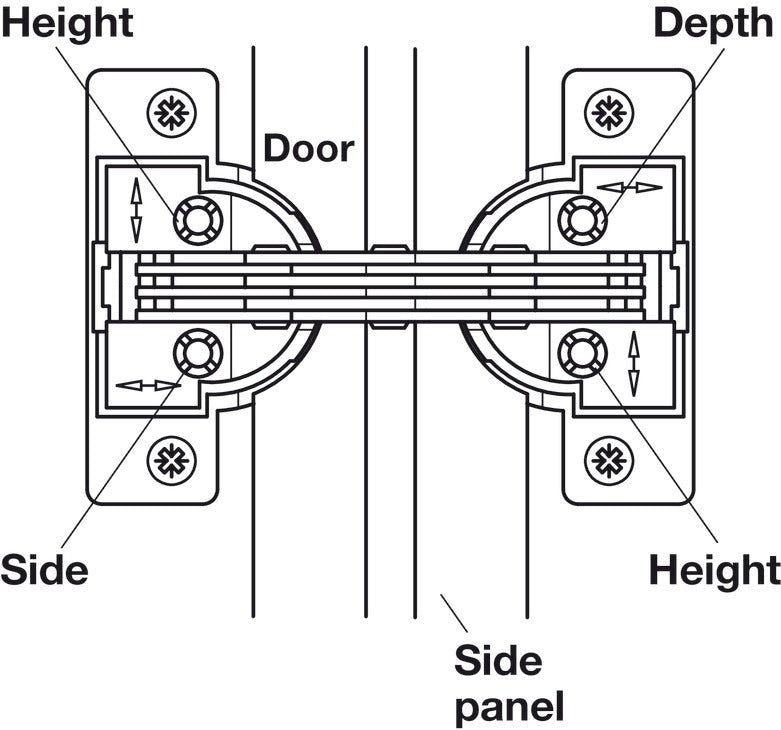

⚙️ Adjustable Settings
- Side Adjustment: ±1.5mm
- Depth Adjustment: ±1.5mm
- Height Adjustment: ±3mm
🔧 Easy Installation
Screw-mounted for secure and straightforward assembly.
📏 Compatible Dimensions
- Door Thickness: 16–22mm
- Side Panel Thickness: 16–20mm

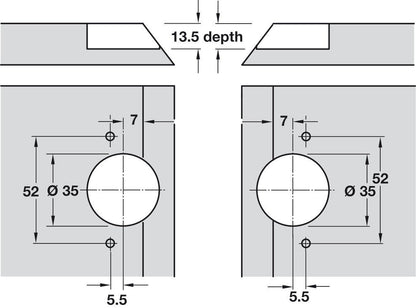

- Cup Drilling Depth: 13.50mm
- Cup Diameter: 35.00mm
🪵 Door Material
Ideal for wooden doors with cup drilling for assembly.
🌟 Premium Materials
- Cup: Zinc Alloy
- Hinge Arm: Steel
- Finish: Nickel Plated
Specifications
🔹 Opening Angle: 135°
🔹 Cup Fixing: For screw fixing

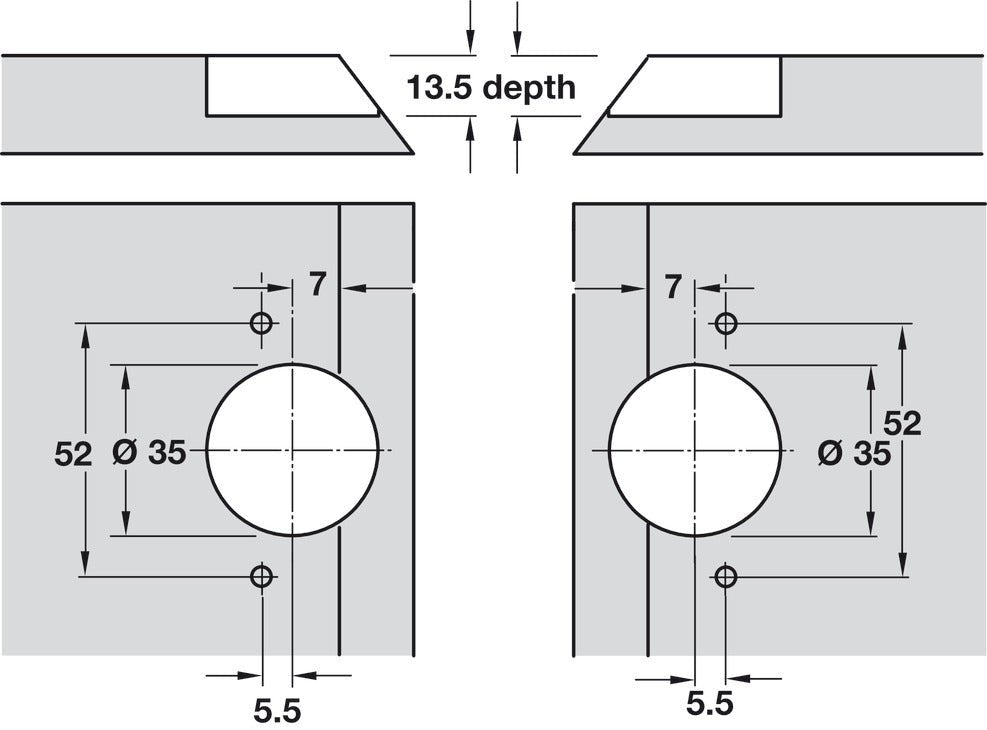

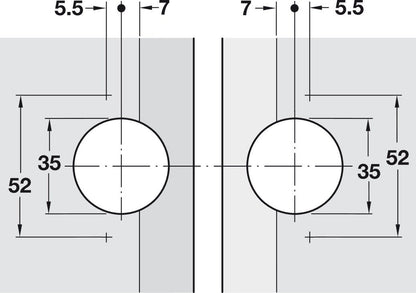

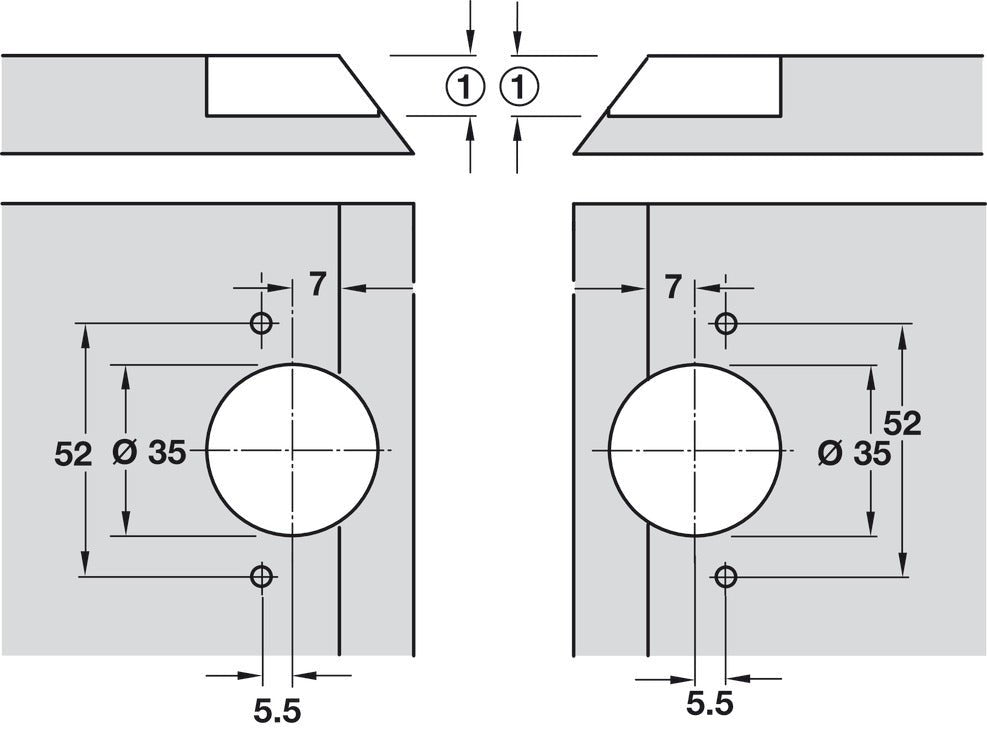

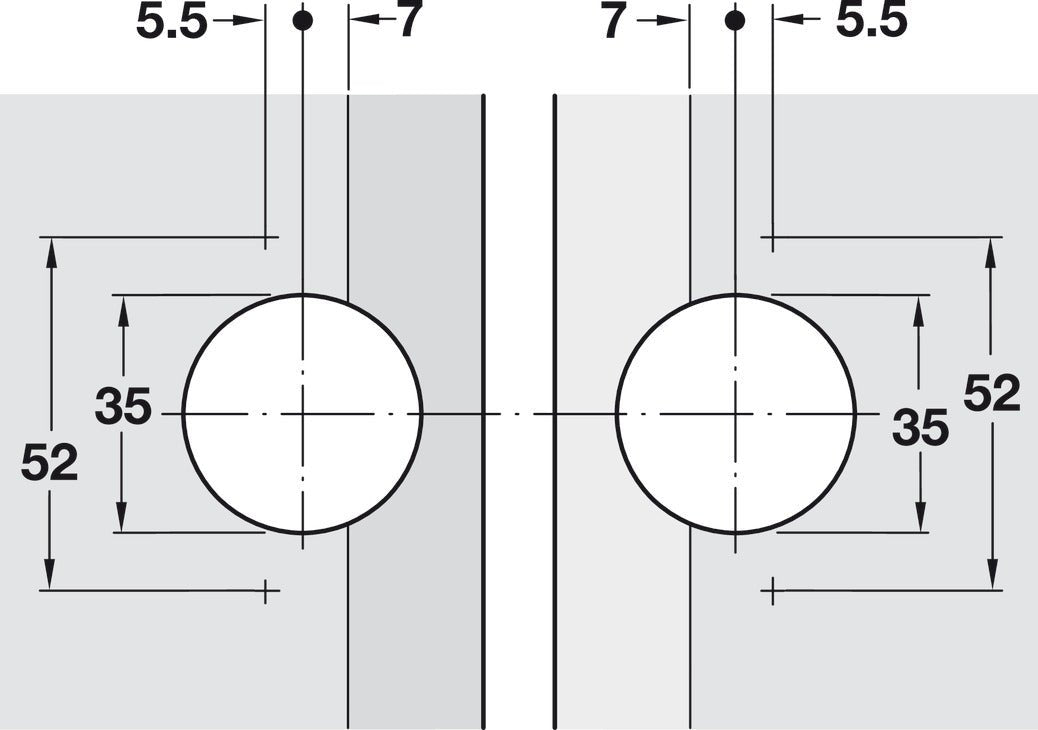

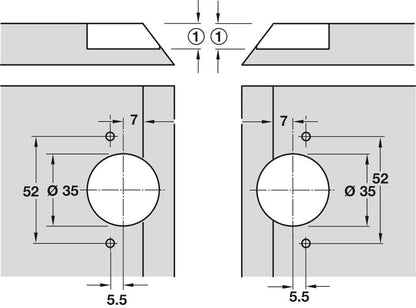

🔹 Drilling Pattern: 52/5.5

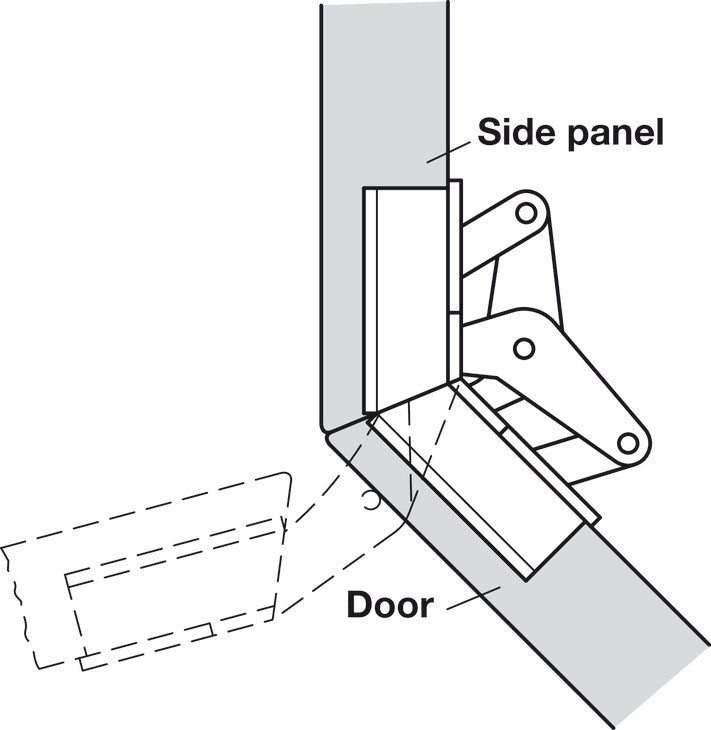

🔹 Chamfer Requirement: 45° chamfer on edges; provide 2mm door gap all around.
📌 Installation Reference: For side panel thicknesses of 20mm, edges must be chamfered by 3mm.
Recommended Uses for Miter Flap Cabinet Hinge GS 45/90
✅ Cabinet Doors
Perfect for mitered cabinet corners and furniture structures.
✅ Flap Doors
Ensures smooth operation for flap and lid-style doors.
✅ Invisible Integration
Concealed design for modern and sleek cabinetry.
✅ Versatile Cabinetry
Ideal for residential and commercial furniture projects requiring mitered joints.
Why Choose the Häfele Miter Hinge GS 45/90?
🇩🇪 Made in Germany
Engineered with precision and crafted from premium materials for lasting performance.
👷 Designed for Professionals
Built for cabinetmakers and DIY enthusiasts who demand quality and reliability.
✨ Elegant Aesthetics
Nickel-plated finish complements a variety of cabinet styles.
🔨 Functional Excellence
Combines easy installation, adjustability, and seamless integration for flawless cabinetry.
Upgrade your cabinetry with the Häfele Miter Hinge GS 45/90 – the ultimate hinge solution for precise, functional, and visually appealing furniture designs.
Order now and experience unmatched German engineering!
