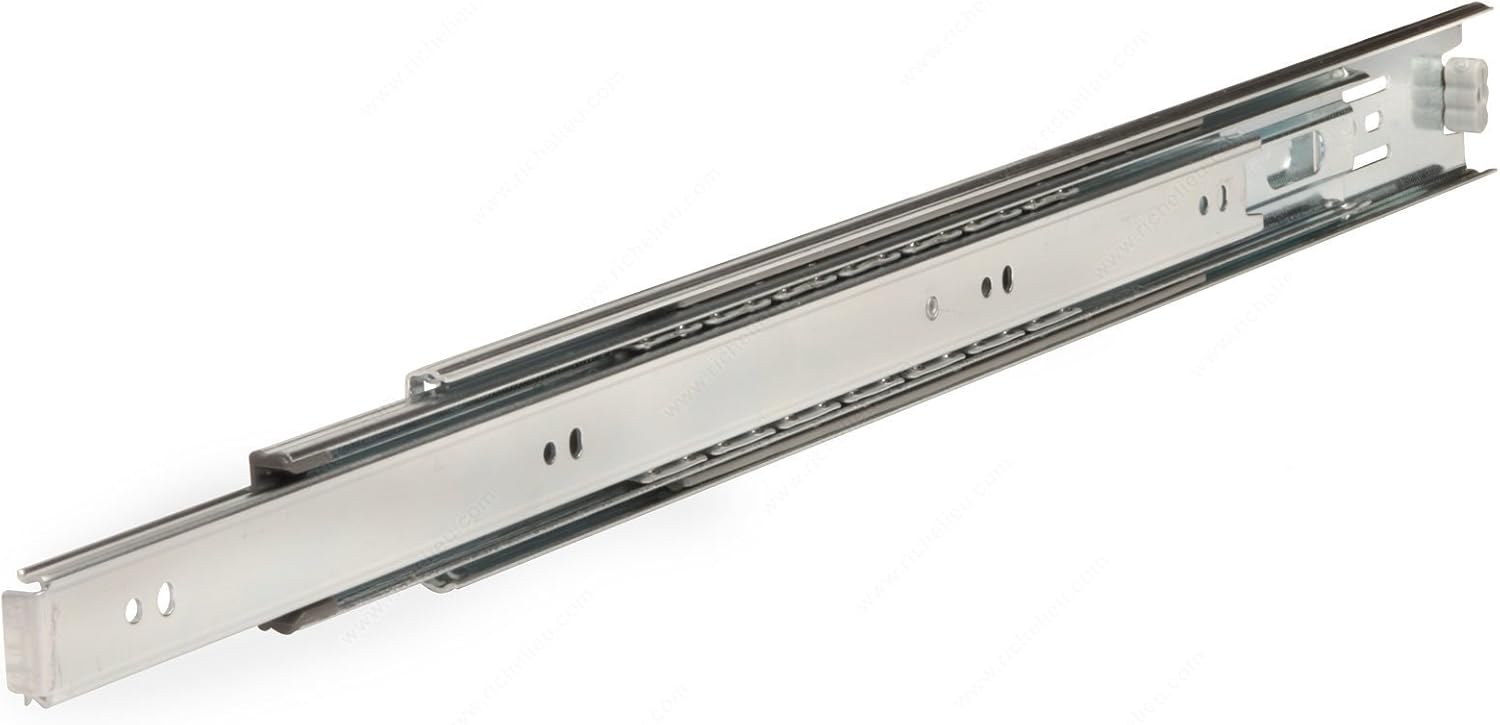

Richelieu GS4270 Series Kit Full Extension Soft-Close Drawer Slides with Rear Metal Brackets – 16" to 28" Lengths (One Pair)
Couldn't load pickup availability
Pickup available at Van Alstyne
Usually ready in 4 hoursPairs well with
Ships within 1-3 business days
Complimentary shipping*
30-day return window

Richelieu GS4270 Series Kit Full Extension Soft-Close Drawer Slides with Rear Metal Brackets – 16" to 28" Lengths (One Pair)
Product details
Richelieu GS4270 Series Full Extension Soft-Close Drawer Slides with Rear Metal Brackets – 16" to 28" Lengths (One Pair)
🔹 Elevate your drawer functionality with Richelieu’s GS4270 Series Full Extension Soft-Close Drawer Slides. Designed for ultra-smooth operation and enhanced durability, these slides feature advanced soft-close technology that ensures a gentle, secure, and non-rebounding closure. Built with premium materials and precision engineering, these slides provide superior support and seamless performance for residential and commercial applications.
Key Features:
- Heavy-Duty Performance: Supports up to 100 lbs (dynamic) / 200 lbs (static), ANSI/BHMA Grade 1 HD-100 certified for long-lasting reliability.
- Full Extension Glide: Maximizes drawer accessibility with a smooth, telescopic ball-bearing mechanism.

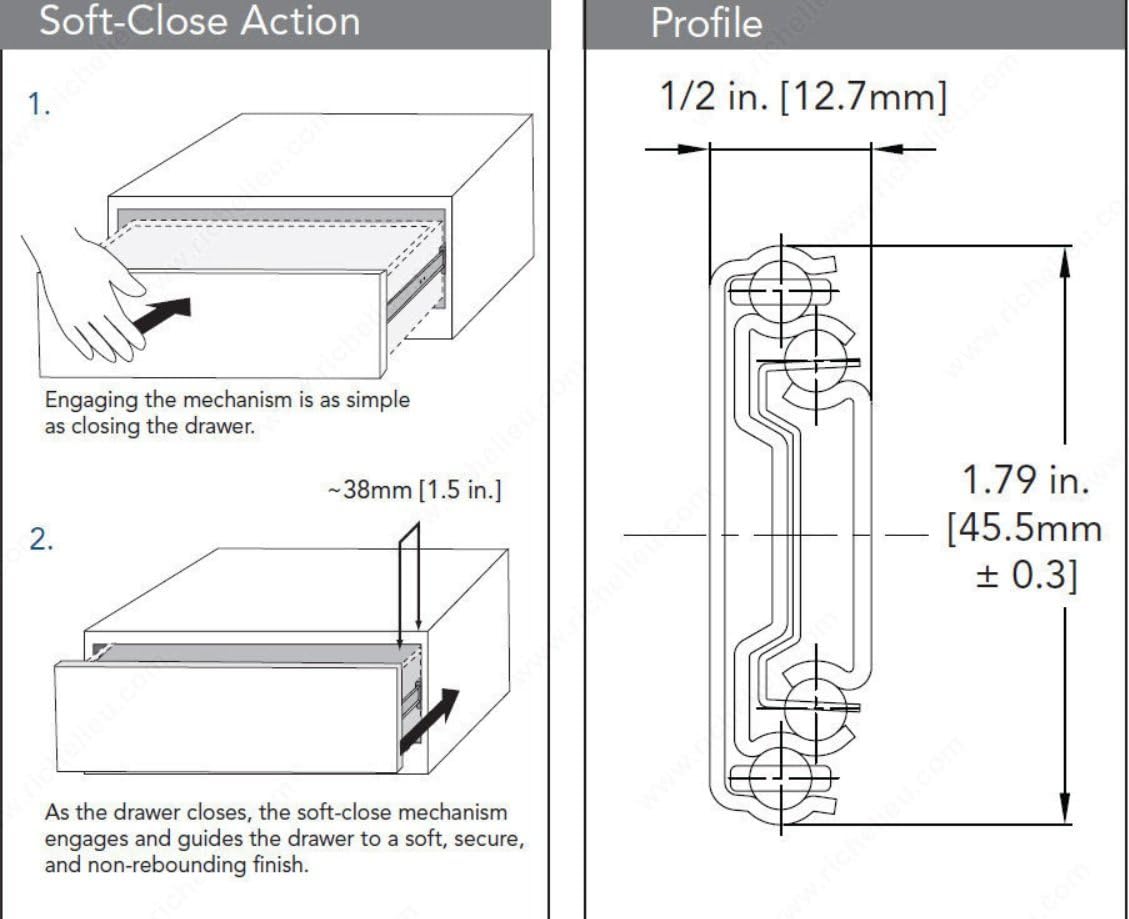

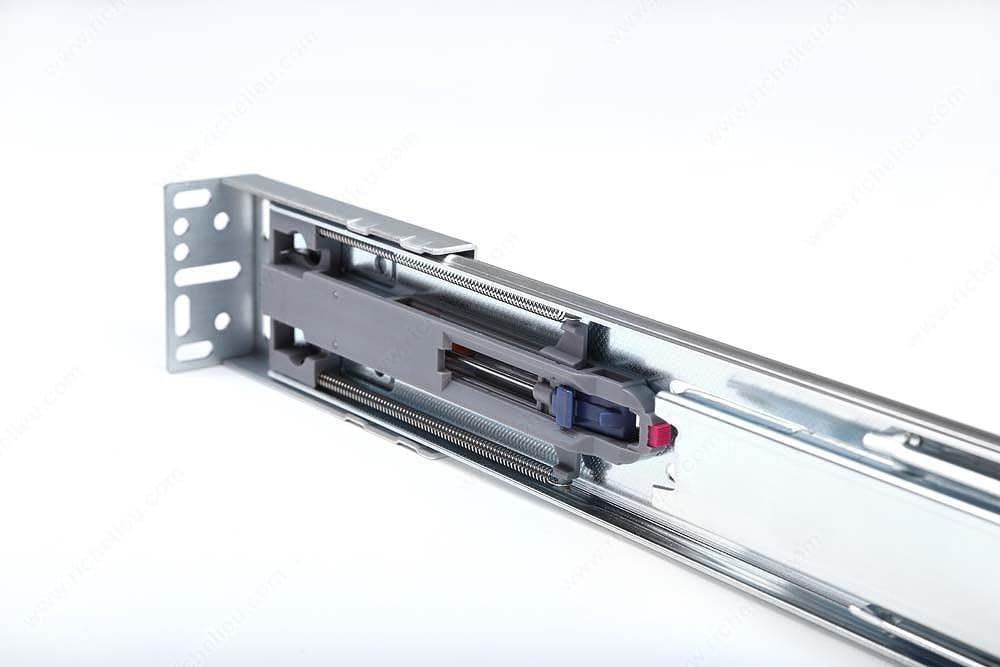

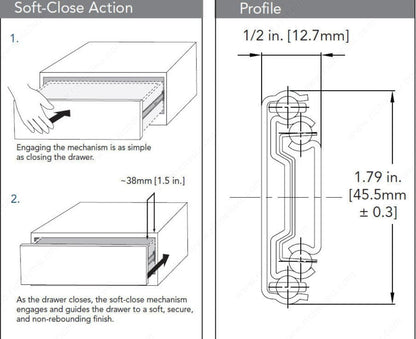

- Soft-Close Technology: The 38 mm (1.5 in.) pneumatic cylinder provides a controlled, quiet, and effortless close every time.
- Versatile Sizing: Available in 16", 18", 20", 22", 24", 26", and 28" lengths to fit a variety of drawer configurations.
-
Universal Fit & Easy Installation:
- 1/2" (12.7mm) side clearance fits standard drawer setups.
- Flexible mounting tabs adapt to side clearance variations.
- 32 mm hole pattern for precise and consistent alignment.
- Non-handed design allows installation on either side of the drawer.
-
Complete Kit Includes:
- One Pair (2 pcs) of GS4270 Series Full Extension Soft-Close Drawer Slides

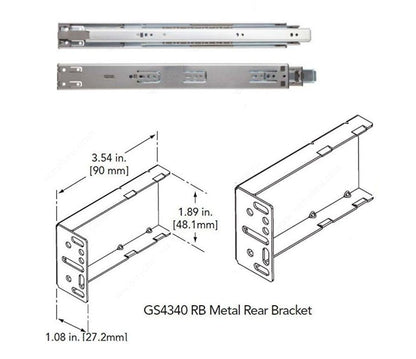

- Two Rear Metal Brackets
- Installation Instructions
Recommended Uses:
✔ Kitchen Cabinet Drawers
✔ Office Storage Drawers
✔ Bedroom Dresser Drawers
✔ Bathroom Vanity Drawers
✔ Workshop & Tool Storage
✔ Garage Cabinetry
✔ Commercial & Retail Display Units

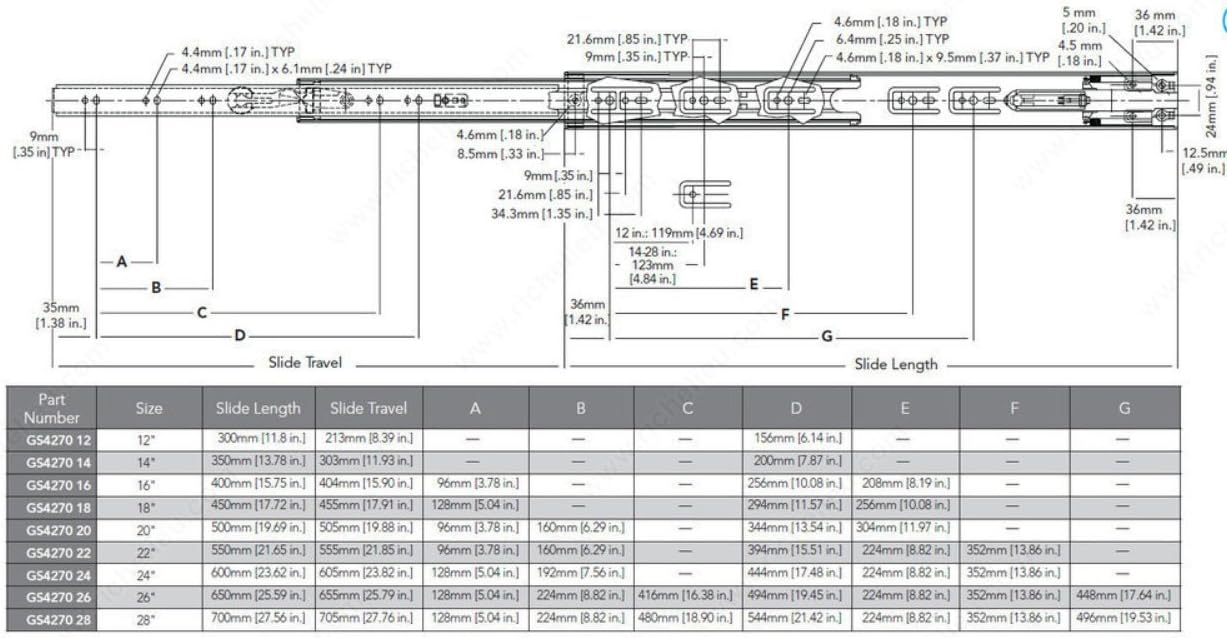

Specifications:
- Series: GS4270
- Material: Steel
- Side Clearance: 12.7 mm (0.50 in.)
- Maximum Drawer Width: 24"
- Closure Type: Soft-Close
- Load Capacity: 100 lbs (dynamic), 200 lbs (static)
- Travel: Full Extension
- Finish: Zinc-coated for corrosion resistance
- Mounting: Sidemounted with flexible tabs
Why Choose the Richelieu GS4270 Series?
✅ Premium soft-close technology for a whisper-quiet operation
✅ Full extension glides ensure maximum drawer accessibility
✅ Built to ANSI/BHMA Grade 1 standards for strength and durability
✅ Flexible mounting system for easy installation
✅ Backed by Richelieu’s trusted quality and precision engineering
What’s Included?
✔ (1) Pair of Full Extension Soft-Close Drawer Slides
✔ (2) Rear Metal Brackets
✔ Installation Instructions
Upgrade your cabinetry with Richelieu’s GS4270 Series Drawer Slides Kit—built for seamless operation and lasting durability.
