Achieve a Perfect, Modern Floating Shelf Look

Upgrade your space with our premium heavy-duty concealed shelf support brackets. Engineered for absolute minimalism, structural strength, and precise installation alignment, these brackets remain completely hidden inside the shelf panel once installed. Perfect for high-end kitchens, custom closets, offices, retail displays, and luxury residential cabinetry.

Featuring an innovative, fully adjustable backplate, this hardware allows you to fine-tune shelf inclination, height, and lateral side alignment after mounting to ensure a perfectly level finish on uneven walls.

Key Features

• Flawless Floating Appearance: Completely hidden inside the shelf body for a clean, minimalist architectural look.

• 3-Way Precision Adjustment: Easily adjust shelf inclination, vertical height, and side-to-side alignment post-installation to eliminate gaps against the wall.

• Heavy-Duty Galvanized Steel: Built from premium-grade structural steel for superior load capacity, sag prevention, and long-term durability.

• Anti-Tip Safety Design: When the rear edge of your shelf is properly routed to recess the backplate, the integrated lip provides a secure anti-drop and anti-tip feature.

• Versatile Material Matching: Optimized for solid wood, live-edge slabs, plywood, MDF, and custom composite shelving panels.

Choose Your Pack Size

Please Note: Each individual bracket contains one (1) concealed support arm. Most floating shelf installations require a minimum of 2 brackets per shelf.

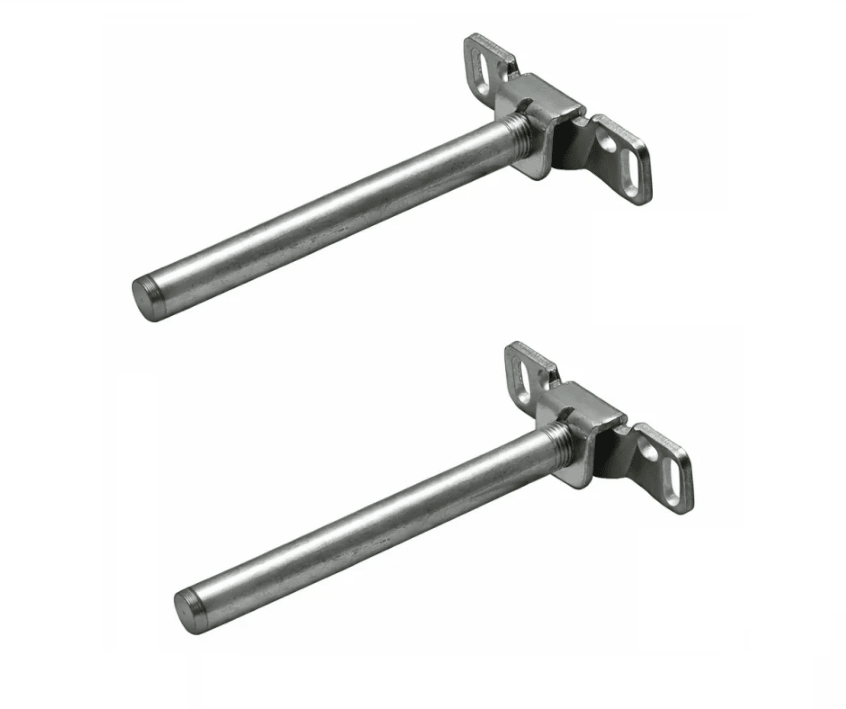

• 2-Pack (1 Pair): Ideal for small accent shelves up to 24" wide.

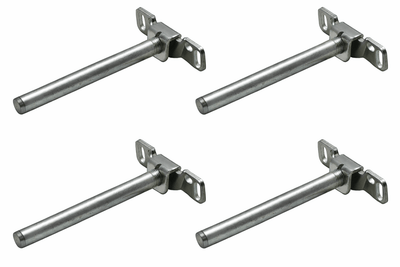

• 4-Pack (2 Pairs): Optimized for standard floating shelves or pairs of small shelves.

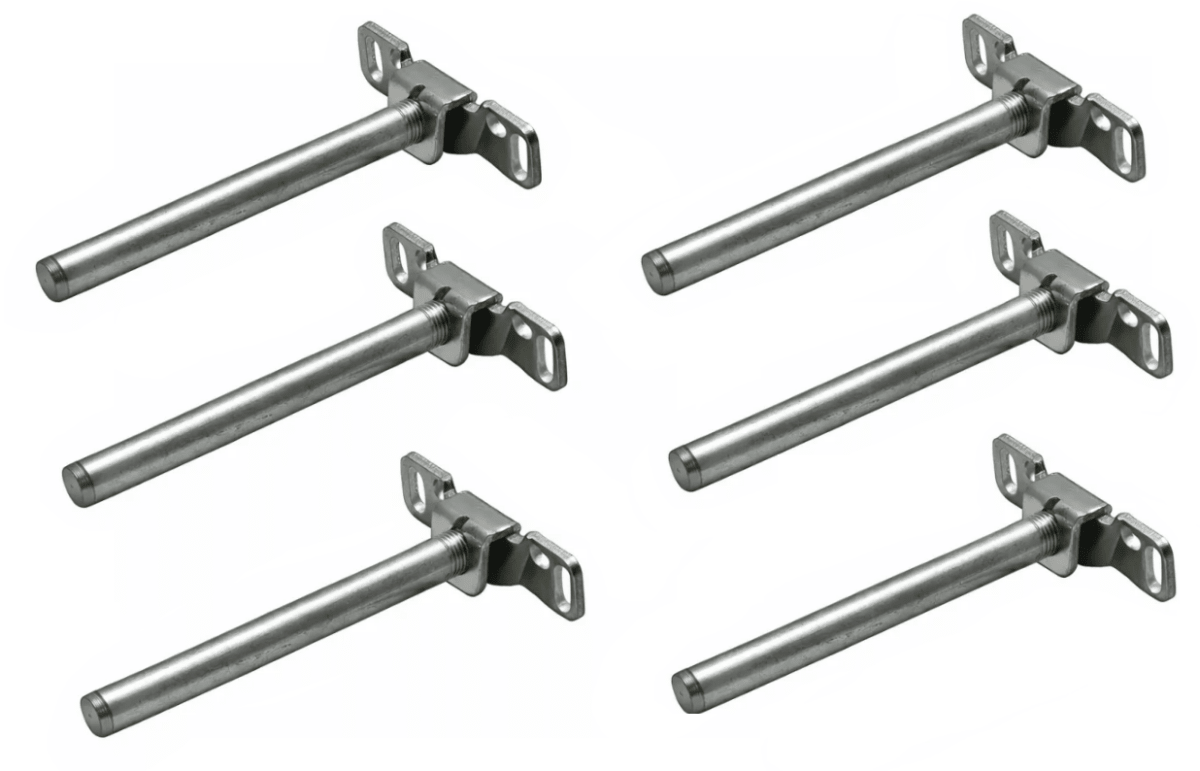

• 6-Pack (3 Pairs): Perfect for medium-to-large shelving or heavy storage layouts.

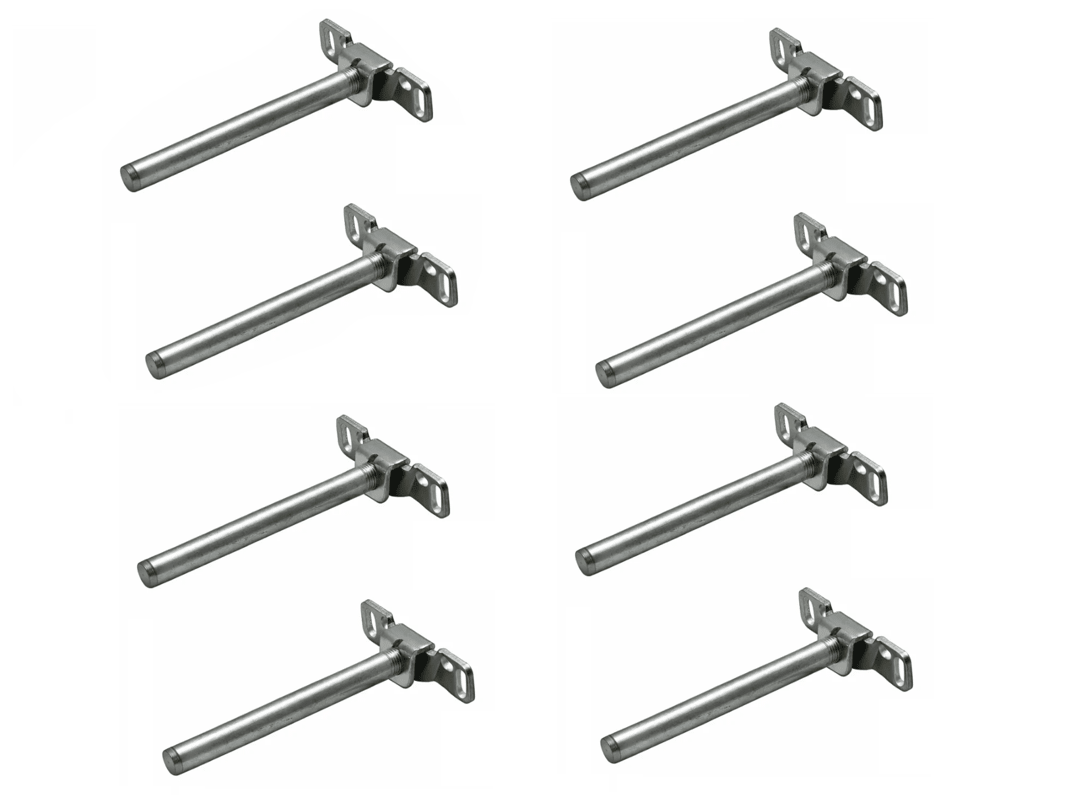

• 8-Pack (4 Pairs): Best value for contractors, multi-room projects, or long-span shelving installations.

Bracket Quantity & Load Capacity Guide

*Note: Weight ratings are based on brackets securely mounted directly into wood wall studs or solid structural blocking. Do not anchor solely into drywall.

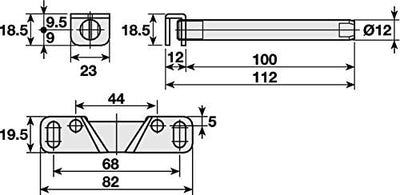

Technical Specifications

• Support Rod Length: 4-1/2 inches (114mm) usable support depth

• Support Rod Diameter: 12 mm (approx. 1/2") — Requires a precision 12mm or 15/32" drill bit

• Backplate Dimensions: 3-1/4" Wide x 3/4" High (82mm x 19mm)

• Material: Heavy-Duty Galvanized Steel

• Minimum Shelf Thickness Required: 24 mm (approx. 1") minimum thickness

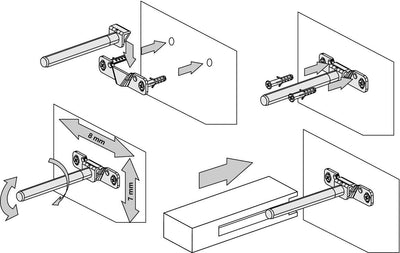

• Adjustment Mechanisms:

  • Inclination/Leveling: Via support bolt adjustments

  • Height/Vertical: Via backplate mounting slots

  • Side/Horizontal: Via lateral support movement

What's Included Per Pack

• Concealed Brackets: (2, 4, 6, or 8 depending on pack size chosen)

• Installation Fasteners: Premium heavy-duty mounting screws

• Wall Anchors: Industrial plastic wall plugs (for masonry/solid backing reference)

Recommended Tools & Professional Installation Tips

• Structural Anchoring: For maximum load ratings and safety, always align and mount brackets directly into wood wall studs or solid wood backing plates.

• Drilling Precision: We highly recommend using a drill press or a specialized drilling jig to guarantee completely straight, deep holes in the rear of your shelf panel. A wandering drill bit will cause shelf misalignment.

• Securing the Shelf: For permanent, zero-wobble installations, professionals apply a small bead of silicone or construction adhesive inside the drilled shelf holes before sliding the panel onto the steel rods.

Frequently Asked Questions

Does one pack cover one shelf? It depends on your shelf length. A 2-pack provides two brackets, which is perfect for a standard shelf under 24 inches. For longer shelves, refer to our Quantity Guide above to ensure you have enough support arms to prevent center sagging.

Can these be adjusted after the wall is covered? Yes. The alignment mechanism allows you to adjust the tilt/angle and lateral position even after the backplates are fixed to the wall studs, making it easy to compensate for slightly bowed drywall.

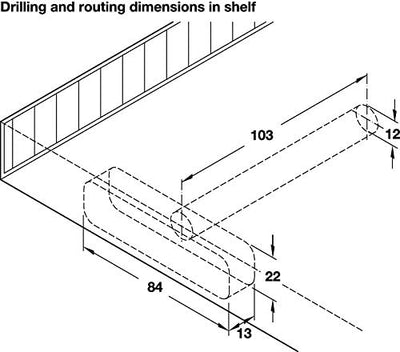

What size hole do I need to drill into my shelf? You will need to drill a straight, clean hole with a diameter of 12mm (or a tight 15/32" bit) to a depth of at least 4-5/8" to clear the support rod.
