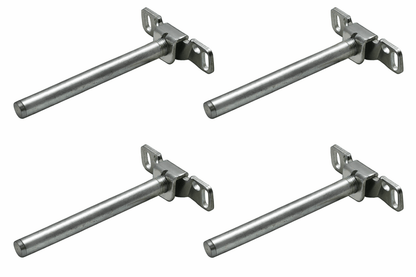

4-Case Pack 4-1/2 Inch Long Concealed Shelf Support Brackets with Inclination Adjustment

Upgrade your shelving with these 4-1/2 inch concealed shelf support brackets, designed for strength, precision, and a clean, modern appearance. Once installed, the hardware remains hidden inside the shelf, delivering a true floating-shelf look suitable for kitchens, living spaces, offices, and retail displays.

Each bracket features an adjustable screw-on backplate, allowing fine tuning of inclination, height, and side alignment even after mounting. When the rear edge of the shelf panel is properly routed, the design also provides an effective anti-tip feature for added safety and stability.

Manufactured from galvanized steel, these supports are built for durability and long-term performance. For best results, shelves must be 24 mm (1 inch) thick or greater. A small amount of silicone adhesive may be applied during installation to further secure the shelf to the support.

Ideal for professional installers, cabinetmakers, and DIY projects where a refined, hardware-free finish is required.

Key Features

• Hidden, Clean Look – Concealed shelf support design creates a modern floating-shelf appearance with no visible hardware once installed.

• Fully Adjustable Backplate – Integrated inclination, height, and side adjustment allow precise leveling and alignment after installation.

• Strong & Durable – Manufactured from galvanized steel with a 40 lb load capacity per set when installed correctly.

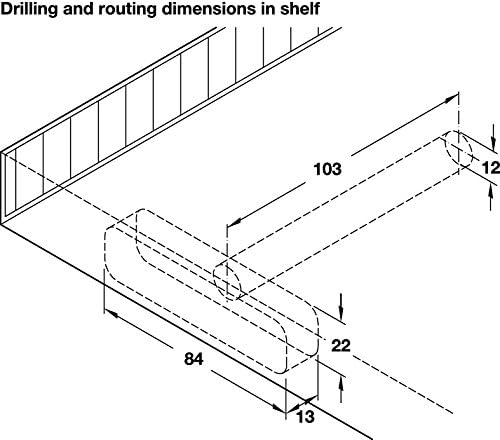

• Anti-Tip Shelf Support – Proper rear-edge routing of the shelf panel provides added stability; silicone adhesive can be used for extra security.

• Complete Installation Kit – Includes mounting screws and plastic wall plugs for reliable wall attachment.

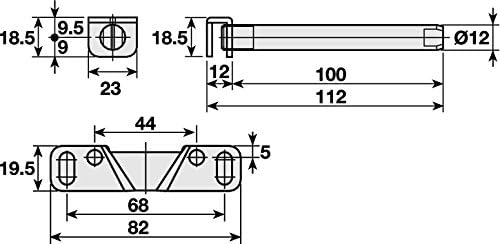

Technical Specifications

• Bracket Length: 4-1/2 inches

• Backplate Width: 3-1/4 inches

• Backplate Height: 3/4 inch

• Material: Galvanized Steel

• Weight Capacity: Up to 44 lbs each

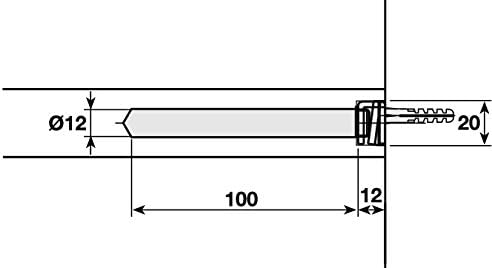

• Shelf Thickness Required: 24 mm (approx. 1") or greater

• Installation Type: Concealed / hidden shelf support

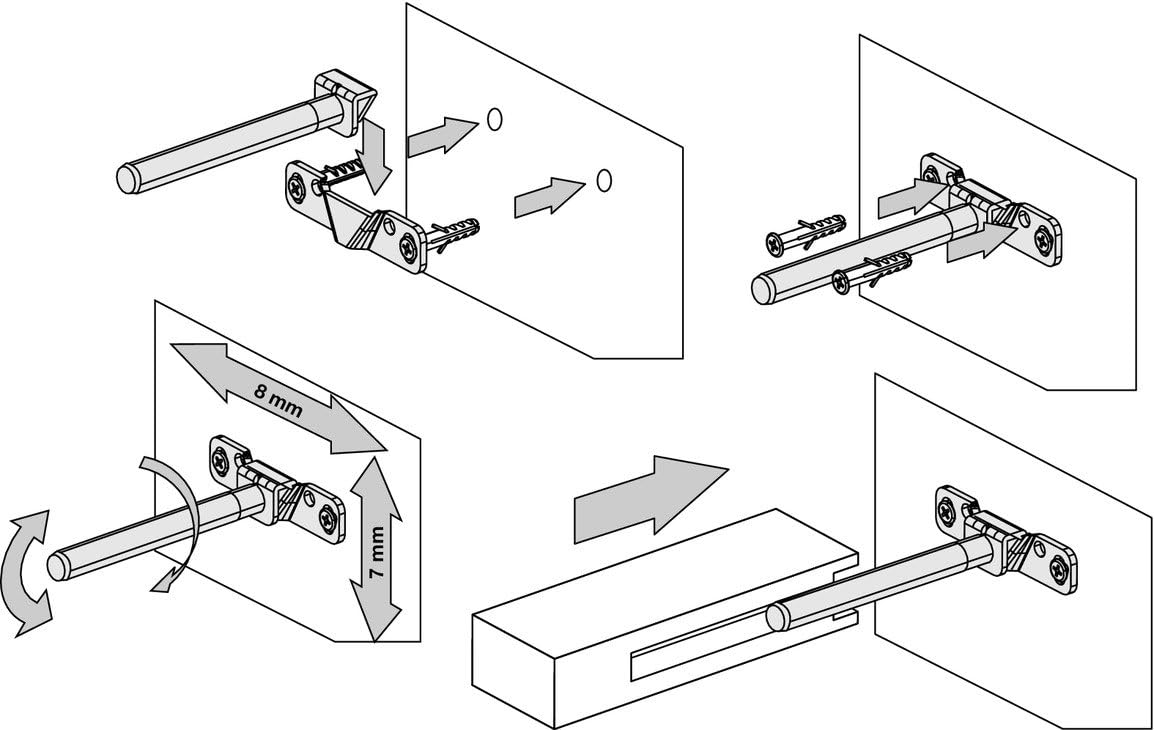

• Adjustment Options:

  • Inclination adjustment via support bolt

  • Height adjustment via slots in screw-on plate

  • Side adjustment via support bolt

What’s Included

• 4 Concealed Shelf Support Brackets

• 16 Mounting Screws

• 16 Plastic Wall Plugs
