Häfele Accuride 1321 Pro Pocket Pivot Sliding Cabinet Door Hardware

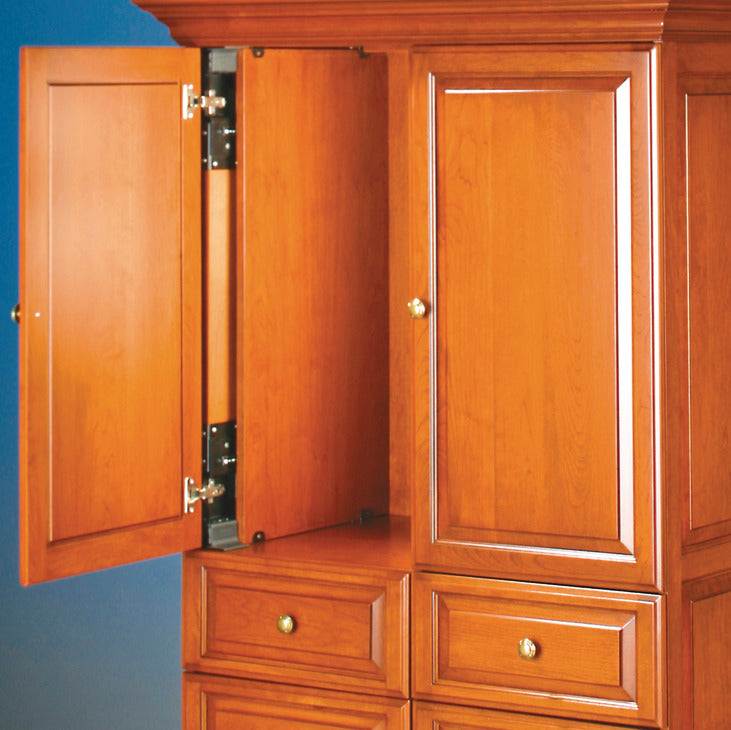

Create a clean, space-saving cabinet design with the genuine Häfele Accuride 1321 Pro Pocket door hardware system. Designed for wooden cabinet doors that pivot and retract into a concealed pocket, this mechanism is ideal for entertainment centers, TV and Hi-Fi cabinets, wall units, and residential or commercial cabinetry.

The Accuride 1321 combines steel ball-bearing slides, integrated hinges, an auto-open feature, and anti-sag adjustment to help deliver smooth movement and reliable door positioning. When opened, the door retracts into the cabinet pocket to keep it out of the way and provide convenient access to the cabinet interior.

Key Features and Benefits

• Genuine Häfele / Accuride Hardware: Model 1321 Pro Pocket sliding and flipper door system.
• Space-Saving Pocket Design: Allows a compatible wooden cabinet door to retract into a concealed side pocket.
• Integrated Auto-Open Feature: Springs the door outward during the final 1-1/4" (32 mm) of travel to help ensure the door is fully extended before closing.
• Smooth Ball-Bearing Movement: Steel ball bearings support smooth, controlled slide operation.

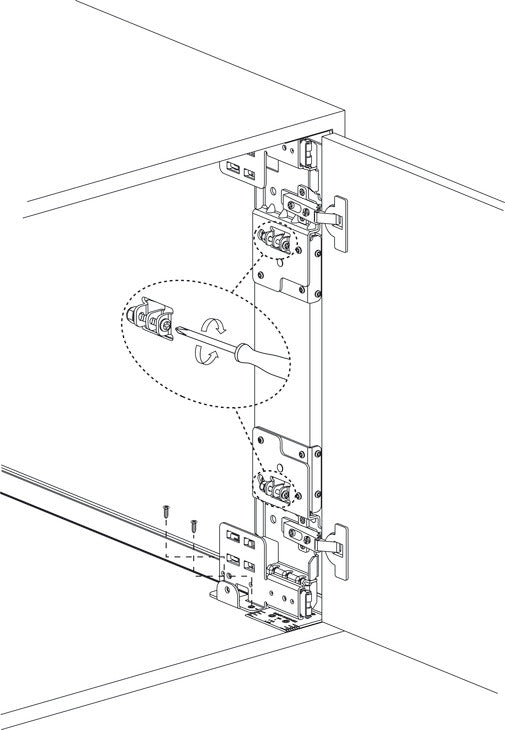

• Anti-Sag Adjustment: Allows vertical door alignment adjustment to help maintain proper positioning.
• Reduced Door Scuffing: Skid blocks with indexing marks help protect the door face, top, and bottom during installation and operation.

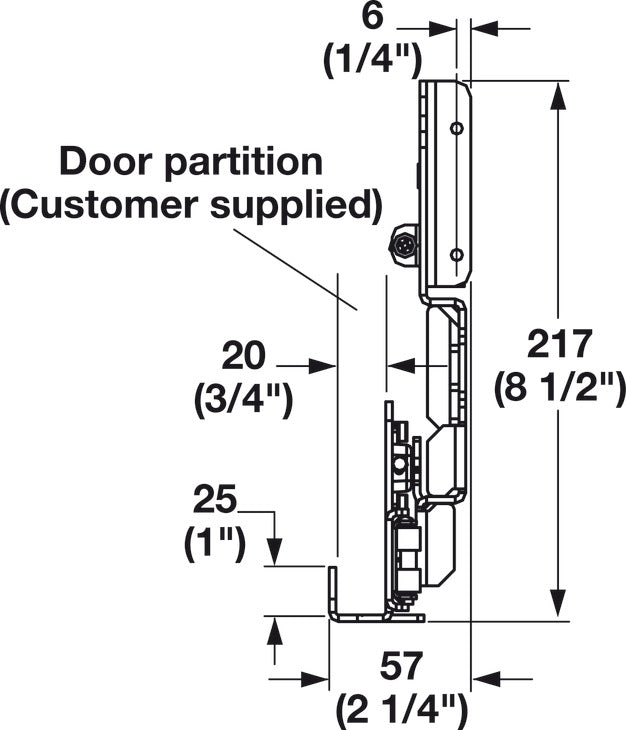

• Convenient Mounting Brackets: Attached brackets help simplify installation and removal of the internal partition used to create the pocket.

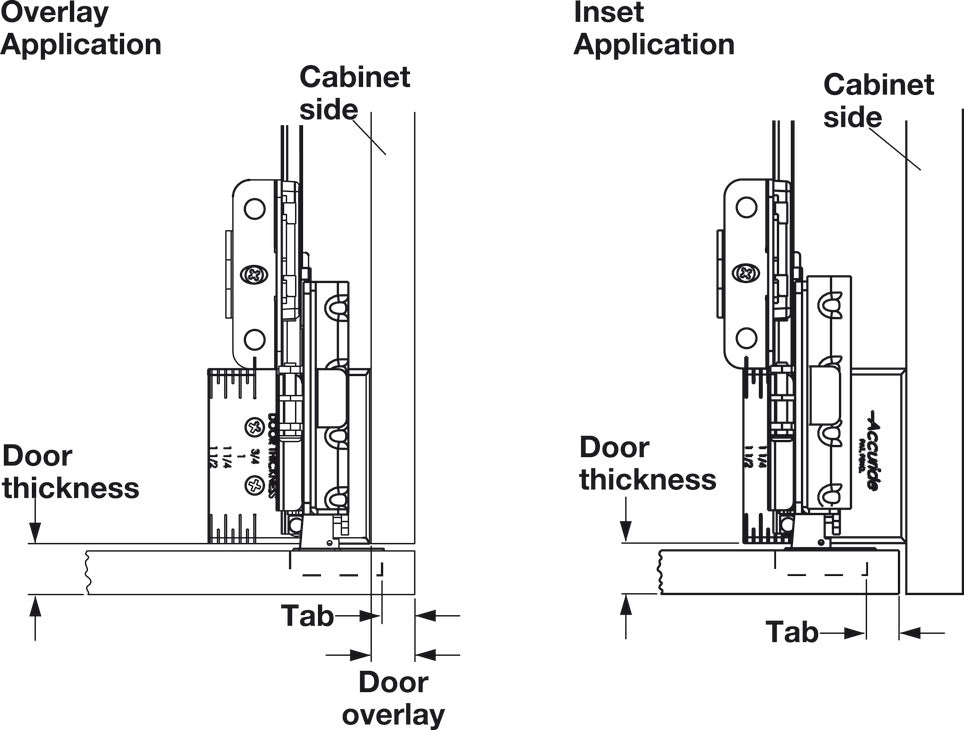

• Flexible Door Design: Compatible with appropriate inset or 3/4" full-overlay applications, subject to door thickness and installation requirements.

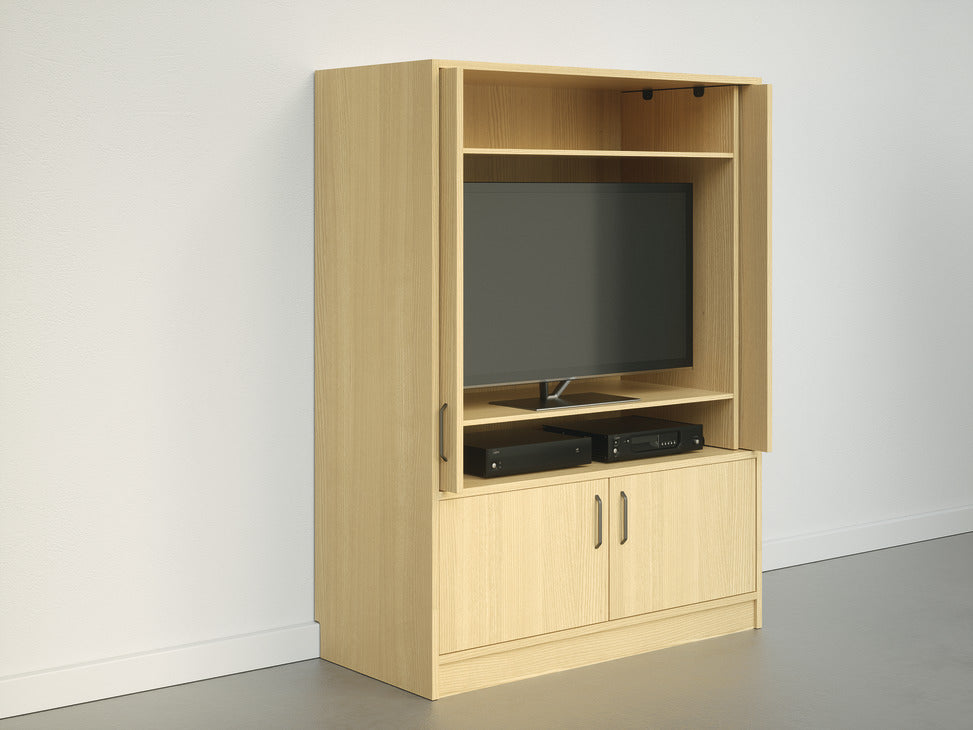

• Versatile Applications: Suitable for entertainment centers, TV cabinets, Hi-Fi cabinets, wall units, and built-in cabinetry.
• Multiple Length Options: Available in several even track lengths to accommodate different cabinet designs.

Technical Specifications

• Brand: Häfele
• Hardware Manufacturer: Accuride
• Model: 1321 Pro Pocket
• Product Type: Pivoting, retractable pocket / flipper door slide system
• Application: Wooden cabinet doors
• Material: Steel slides and ball-bearing components
• Finish: Black electroplate
• Maximum Door Weight: 30 lb (13.6 kg)
• Maximum Door Width: 24" (610 mm)
• Maximum Door Height: 42" (1,067 mm)
• Door Thickness: 3/4"–1-1/2" (19–38 mm)
• Mounting Orientation: Vertical or horizontal, using the specified mounting brackets and installation configuration

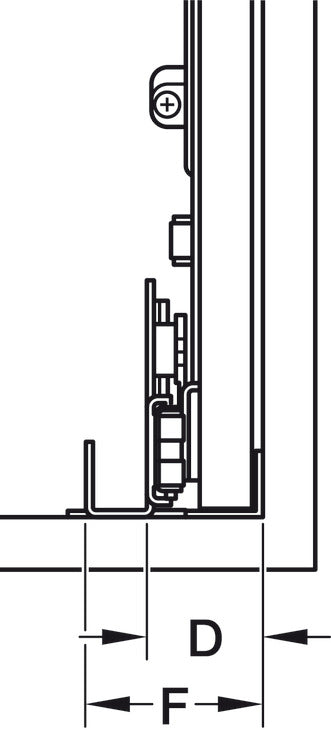

• Overlay: Up to 3/4" full overlay with a compatible 3/4" door; permissible overlay decreases as door thickness increases.
• Track Lengths: 12", 14", 16", 18", 20", 22", 24", 26", and 28" options listed below.
• Load Rating Basis: Manufacturer-rated for 20,000 cycles.

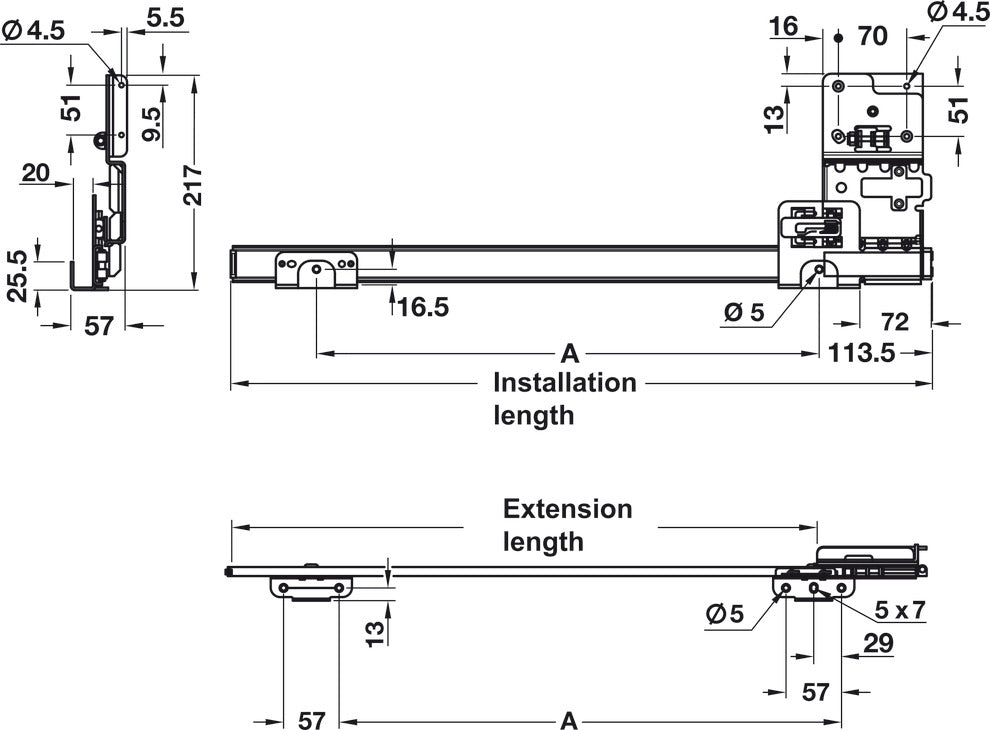

Available Track Lengths and Manufacturer Part Numbers

Select the track length required for your cabinet design. Each length has a corresponding Häfele item number and specified slide travel.

• 12" (303 mm): Häfele 408.35.373 — approximately 7.40" (187 mm) travel.
• 14" (354 mm): Häfele 408.35.374 — approximately 9.40" (239 mm) travel.
• 16" (405 mm): Häfele 408.34.341 — approximately 11.40" (290 mm) travel.
• 18" (456 mm): Häfele 408.34.346 — approximately 13.40" (340 mm) travel.
• 20" (506 mm): Häfele 408.34.351 — approximately 15.40" (391 mm) travel.
• 22" (557 mm): Häfele 408.34.356 — approximately 17.40" (442 mm) travel.
• 24" (608 mm): Häfele 408.34.361 — approximately 19.40" (493 mm) travel.
• 26" (659 mm): Häfele 408.34.366 — approximately 21.40" (544 mm) travel.
• 28" (710 mm): Häfele 408.34.371 — approximately 23.40" (594 mm) travel.

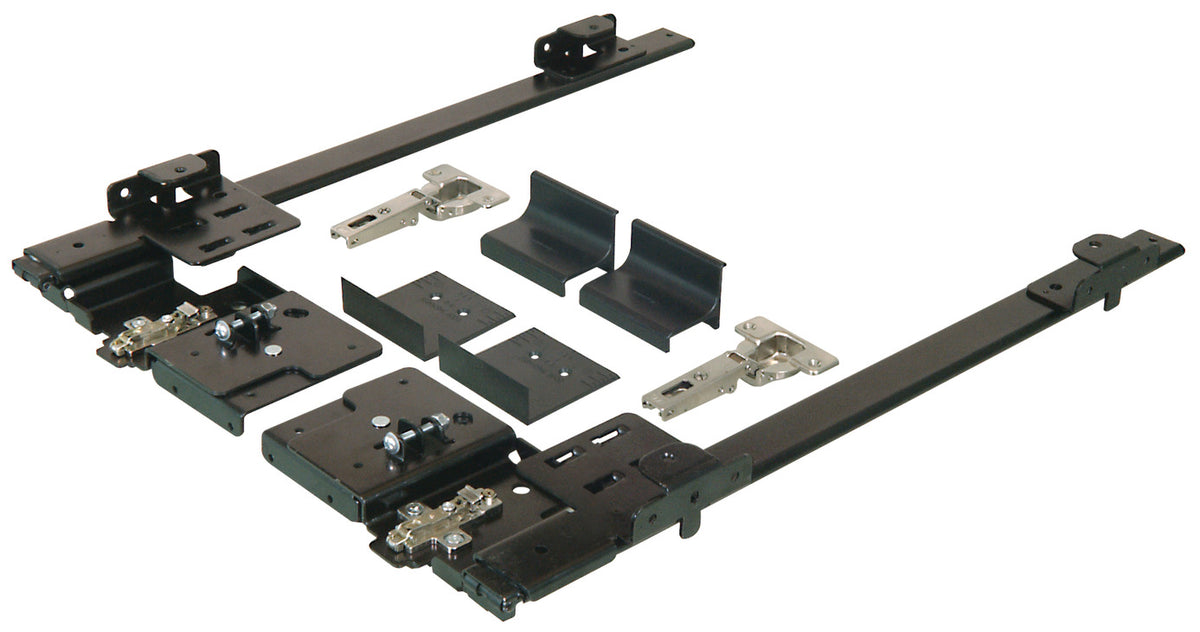

Included Components

The standard distributor-packaged set includes the components needed for the specified door-slide assembly:

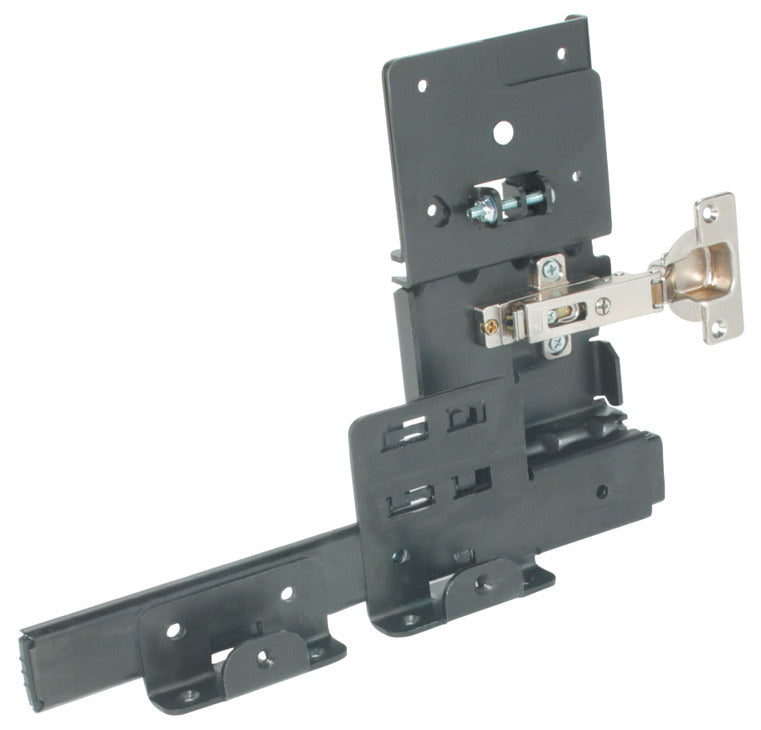

• Two slides with attached hinge base plates
• Two 40 mm clip-on hinges and mounting plates
• Skid blocks
• Cover caps
• Mounting screws
• Installation instructions

Package contents may vary with the manufacturer's packaging configuration. Please confirm the contents of your supplied package before installation.

Installation and Compatibility Requirements

• Verify the door's weight, height, width, thickness, and intended overlay or inset configuration before ordering.
• Maximum rated door dimensions are 24" wide by 42" high, with a maximum weight of 30 lb.
• The cabinet must provide sufficient room for the door to retract fully into its pocket.

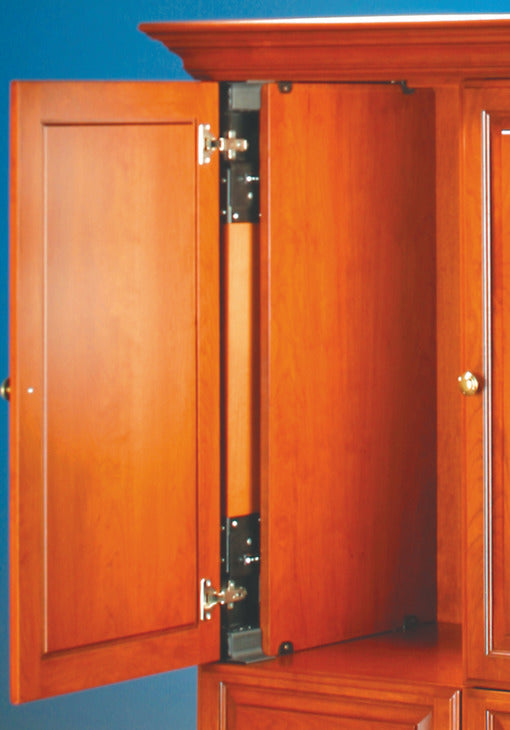

• A hardwood follower strip is recommended and must be supplied separately. The recommended follower length is the interior opening height minus 11" (279 mm).
• The minimum door stile width is 2-1/2" (64 mm).

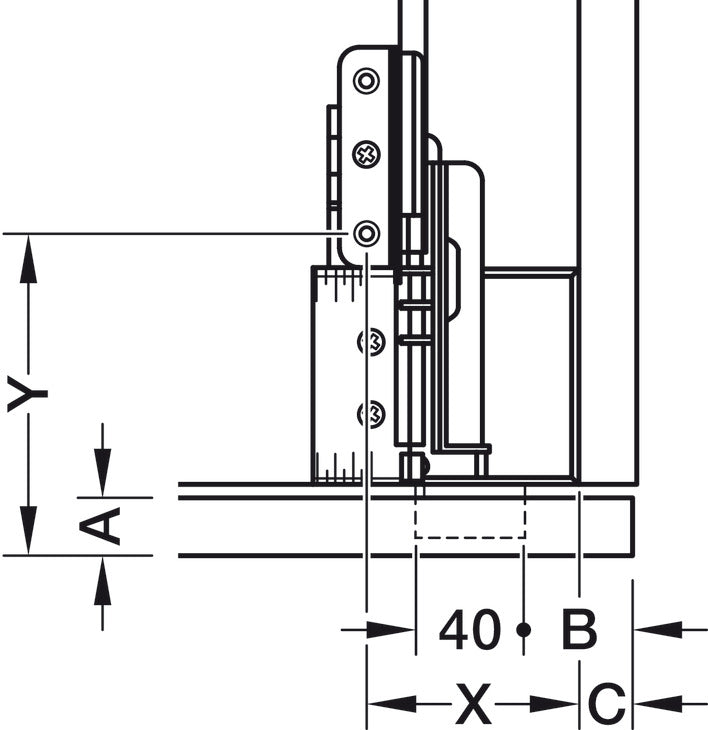

• For doors 3/4" thick, the system supports up to 3/4" overlay. Greater door thickness reduces the permitted overlay; consult the manufacturer's installation chart before machining or drilling.

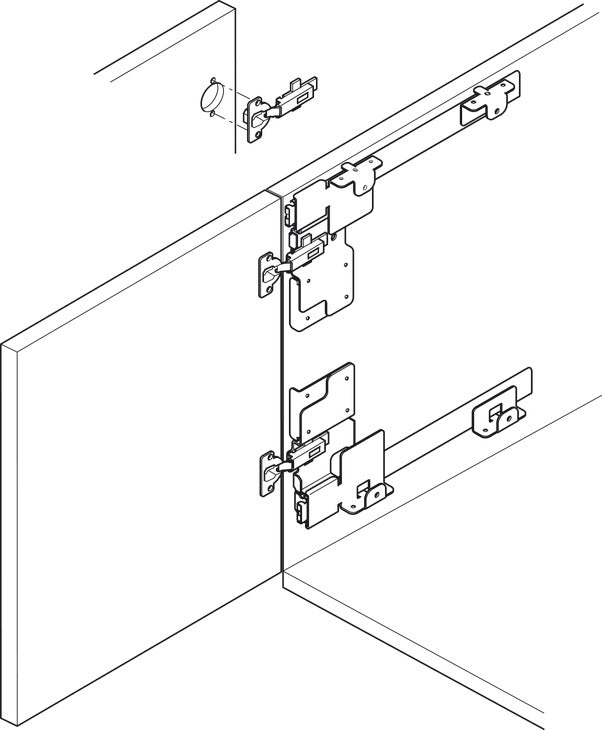

• Installation requires accurate cabinet preparation and alignment. Review the manufacturer's mounting instructions before beginning installation.
• Track length refers to the hardware's nominal length, not its total travel or the cabinet's required overall depth.

Important Ordering Information

Please select the required track length and verify the manufacturer item number against your cabinet design before purchasing. Cabinet construction, door thickness, overlay, and pocket dimensions must all be compatible with the selected system.

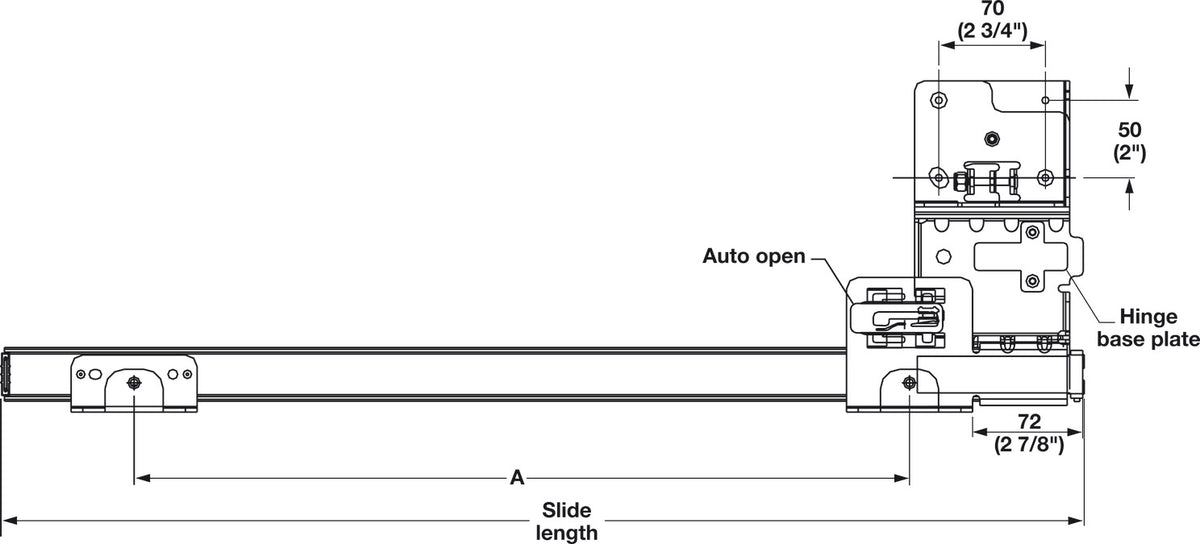

For technical drawings and installation guidance, consult the official Accuride 1321 Pro Pocket documentation or contact our team before ordering if you need help confirming compatibility.
