Achieve clean, floating architecture without sacrificing strength or stability. The Häfele Concealed Flat Support Bracket is an industrial-grade steel bracket engineered to mount directly to wall studs before drywall installation. Designed for floating countertops, ADA-compliant workstations, floating desks, and heavy-duty shelving, this flat profile bracket remains hidden behind your finished walls while providing extreme weight-bearing support.

Crafted from heavy-gauge structural steel with smooth, durable powder coating, it offers an invisible support foundation capable of carrying thousands of pounds without unsightly leg posts or intrusive under-counter bracing.

Key Features & Benefits

• Extreme Load Capacity: Engineered to support heavy loads ranging from 1,100 lbs up to 4,900 lbs (500 – 2,227 kg) per pair, making it suitable for solid stone, concrete, granite, quartz, and hardwood countertops.
• Truly Concealed Architectural Design: Mounts directly flush against wood wall studs prior to sheetrock application, creating a completely invisible, clean floating effect.
• Heavy-Gauge Steel Construction: Manufactured from 1/8" (3 mm) to 1/2" (13 mm) precision structural steel designed to eliminate flex, vibration, and sagging.
• ADA-Compliant Knee Clearance: Ideal for wall-mounted desks, vanity counters, and commercial workstations that require unimpeded legroom underneath.
• Complete Mounting Kit Included: Comes complete with heavy-duty 3/8"-16 carriage bolts for immediate stud fastening.
• Durable Powder-Coated Finishes: Available in high-durability Black and White powder coatings for superior corrosion resistance and lasting protection.

Product Specifications

• Product Line: Concealed Brackets – Flat Design (287.80 Series / P-01656847)
• Material: High-Tensile Structural Steel

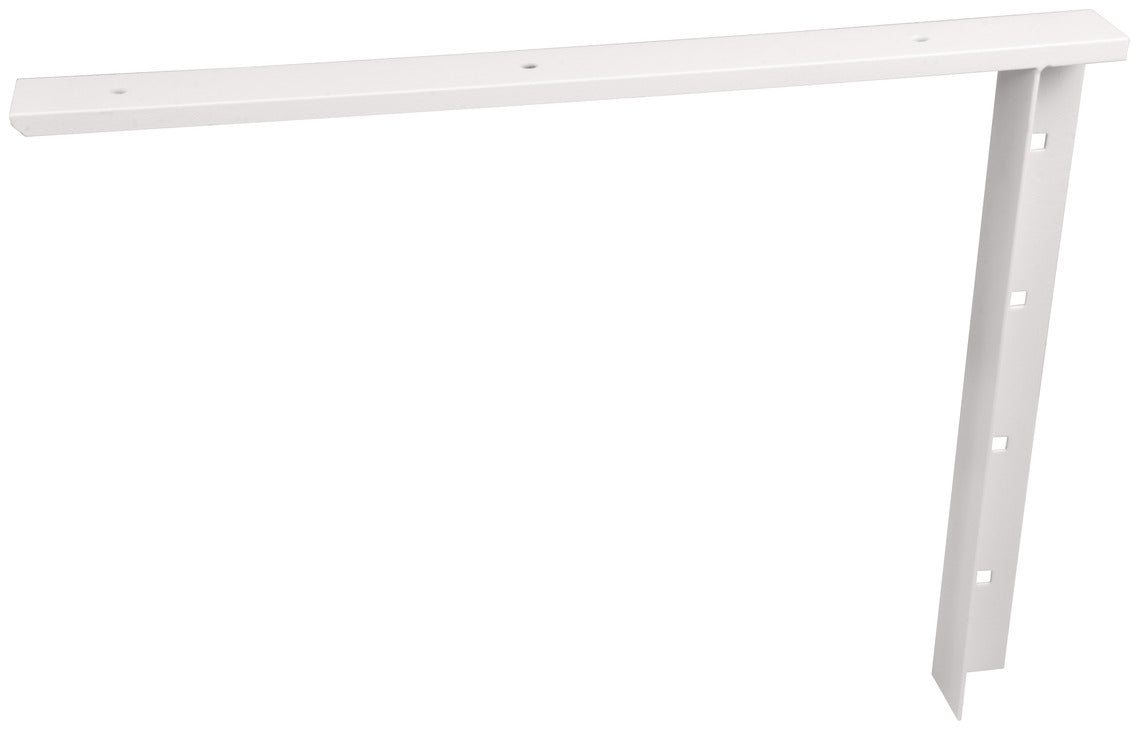

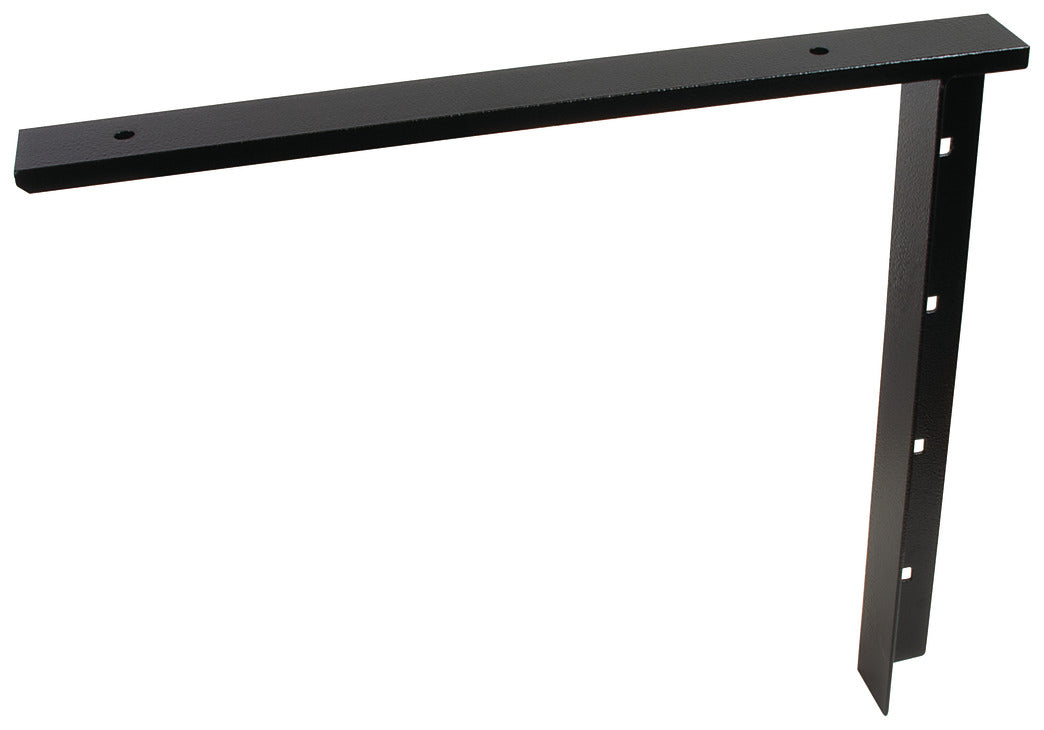

• Available Finishes: Powder-Coated Black, Powder-Coated White
• Thickness: 1/8" (3 mm) support arm / 1/2" (13 mm) mounting plate
• Load Bearing Rating: 1,100 lbs – 4,900 lbs per pair (varies by bracket depth/height)
• What's Included: One Bracket and Hardware: 3/8"-16 carriage bolts for wall stud attachment

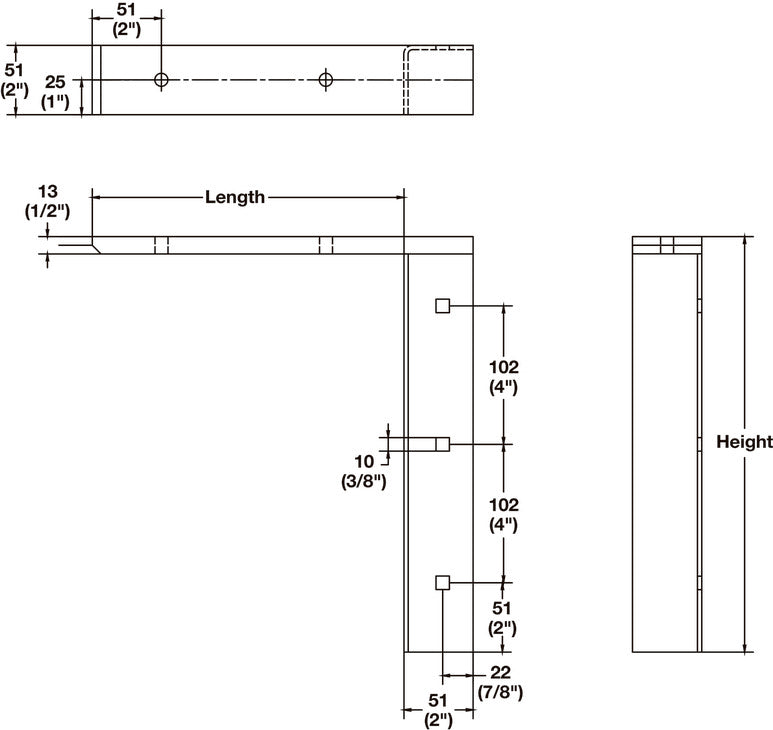

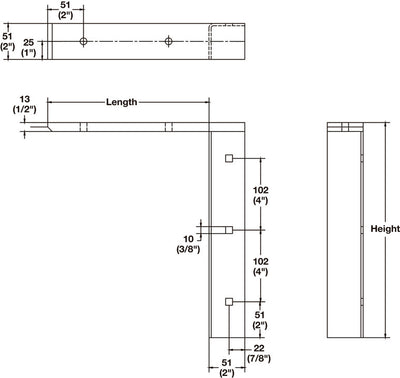

Available Standard Dimensions (Length x Height)

• 12" x 9" (305 mm x 229 mm)
• 12" x 12" (305 mm x 305 mm)
• 15" x 12" (381 mm x 305 mm)
• 18" x 18" (457 mm x 457 mm)
• 21" x 18" (533 mm x 457 mm)
• 24" x 18" (610 mm x 457 mm)

Installation & Mounting Instructions

1. Expose Wall Studs: Expose 2x4 or 2x6 wooden wall framing at the desired installation location.
2. Position & Level: Place the vertical arm of the bracket against the side or face of the wall stud at your target height.
3. Fasten Heavy-Duty Hardware: Secure the bracket into the wood stud using the provided 3/8"-16 carriage bolts through pre-drilled mounting holes.
4. Finish Drywall: Install drywall/sheetrock directly around or over the vertical mounting arm, leaving only the horizontal support arm extending outward.
5. Mount Surface: Lower your countertop, workstation top, or heavy floating shelf directly onto the extending support arms and secure as needed.

Ideal Applications

• Floating Kitchen Countertops & Islands: Invisible overhang support for granite, quartz, butcher block, and marble counters.
• ADA Workstations & Office Desks: Wheelchair-accessible desks requiring open knee space.
• Commercial Reception Desks & Bars: Heavy-duty support for hospitality counter surfaces.
• Floating Bathroom Vanities & Benches: Secure foundation for vessel sinks, stone tops, and custom vanity cabinetry.
