Achieve clean, floating architectural designs with maximum stability and invisible strength. The Häfele Concealed Right-Angle Support Brackets (P-01656846) is engineered for heavy-duty hidden support, attaching securely to the side of wood wall studs before drywall installation. Designed to float stone countertops, ADA-compliant workstations, heavy vanity tops, and custom benches, this right-angle profile remains completely hidden behind your finished drywall while delivering massive weight capacities.

Manufactured from high-tensile structural steel with durable powder coating, it offers an uncompromising hidden foundation that eliminates flex, sag, and intrusive under-counter legs or diagonal knee braces.

Key Features & Benefits

• Extreme Weight Capacity: Capable of supporting heavy loads from 1,000 lbs up to 7,960 lbs (454 – 3,6180 kg) per pair, perfect for granite, quartz, marble, concrete, butcher block, and solid surface countertops.
• Concealed Side-Stud Mounting: Right-angle vertical mounting flange fastens directly to the side of wooden wall studs prior to sheetrock placement, providing a completely invisible floating aesthetic.
• Heavy-Gauge Structural Steel: Fabricated from 1/8" (3 mm) to 1/2" (13 mm) high-grade steel to eliminate flex, vibration, and dangerous overhang deflection.
• Unobstructed ADA Legroom: Eliminates under-counter legs, posts, and diagonal braces, creating full wheelchair accessibility for ADA-compliant desks, vanities, and counters.
• Included Mounting Hardware: Supplied with heavy-duty 3/8"-16 carriage bolts for secure structural stud attachment out of the box.
• Corrosion-Resistant Powder Coating: Finished in high-durability Black or White powder coating to resist moisture, rust, and wear over time.

Product Specifications

• Product Line: Concealed Brackets – Right-Angle Design (P-01656846)
• Material: High-Tensile Structural Steel

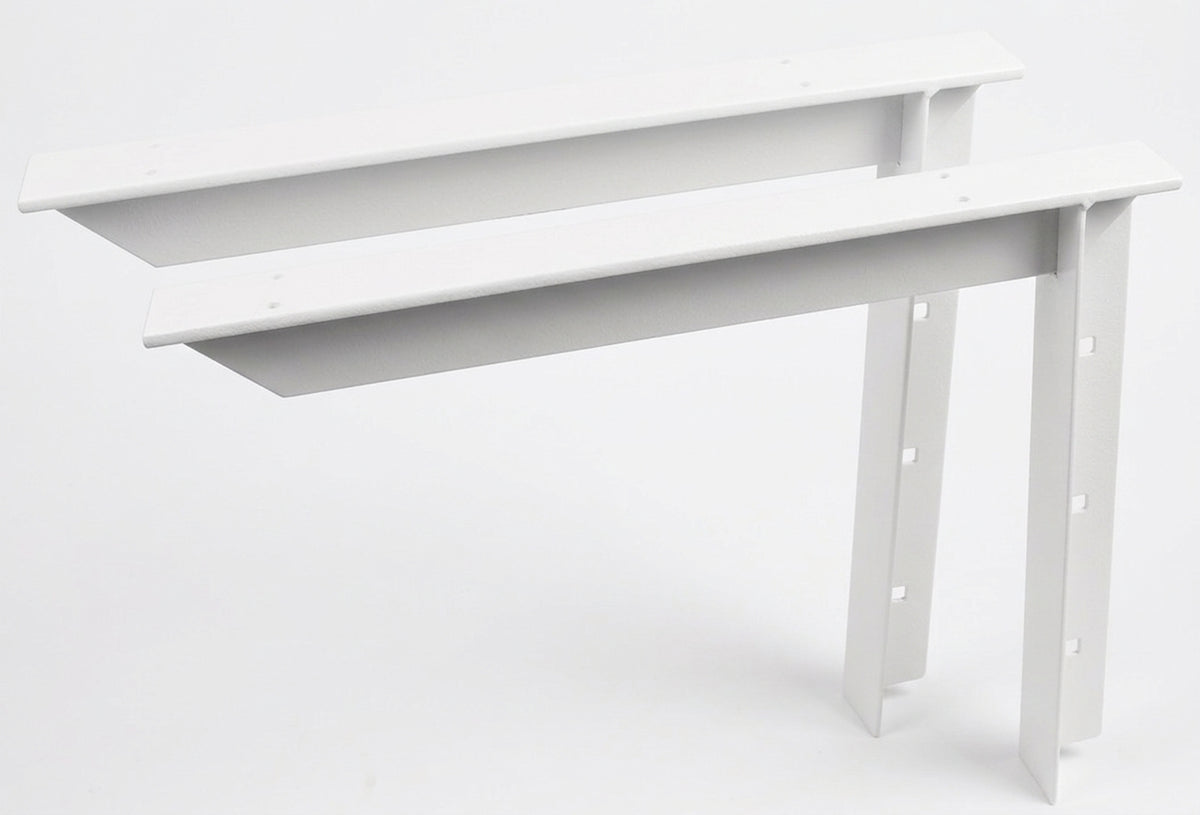

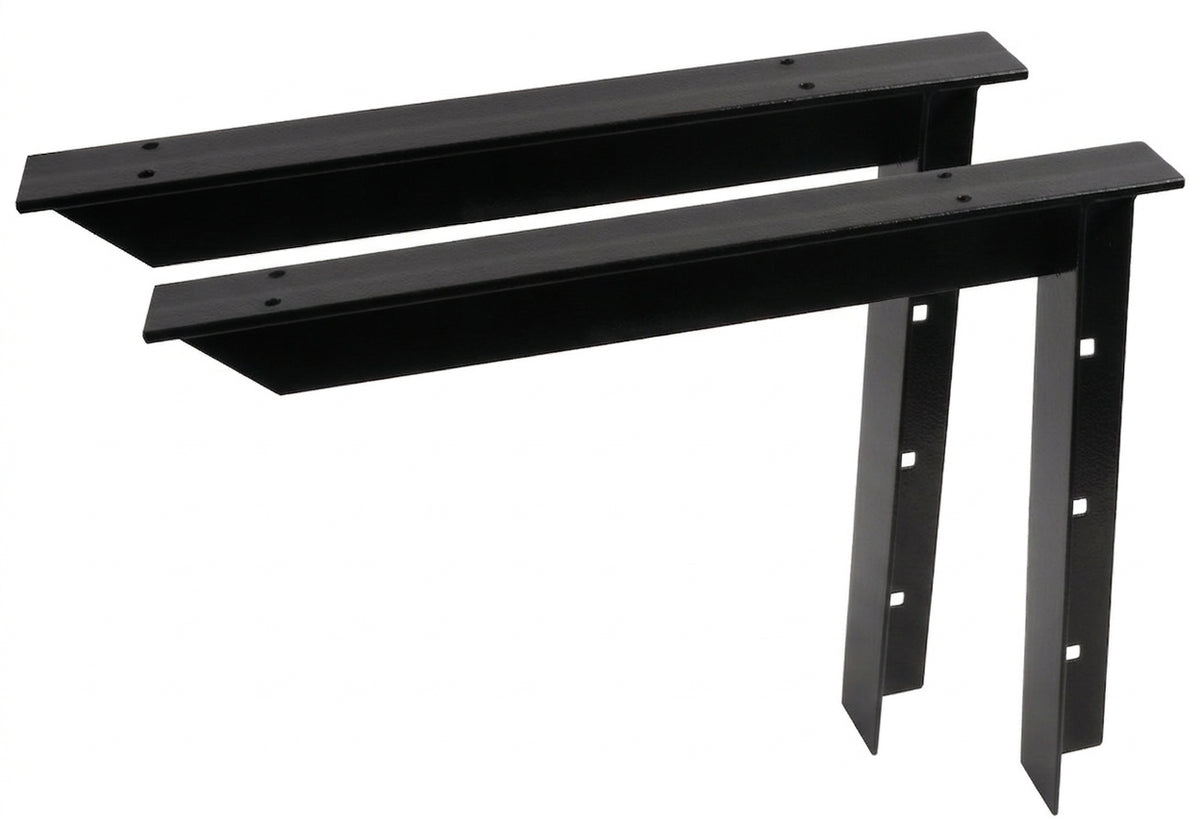

• Available Finishes: Powder-Coated Black, Powder-Coated White
• Structural Thickness: 1/8" (3 mm) horizontal support arm / 1/2" (13 mm) vertical mounting flange
• Weight Capacity: 1,000 lbs – 7,960 lbs per pair (varies by bracket projection and height)
• What's Included: Two Brackets and Hardware: 3/8"-16 carriage bolts for wall stud attachment

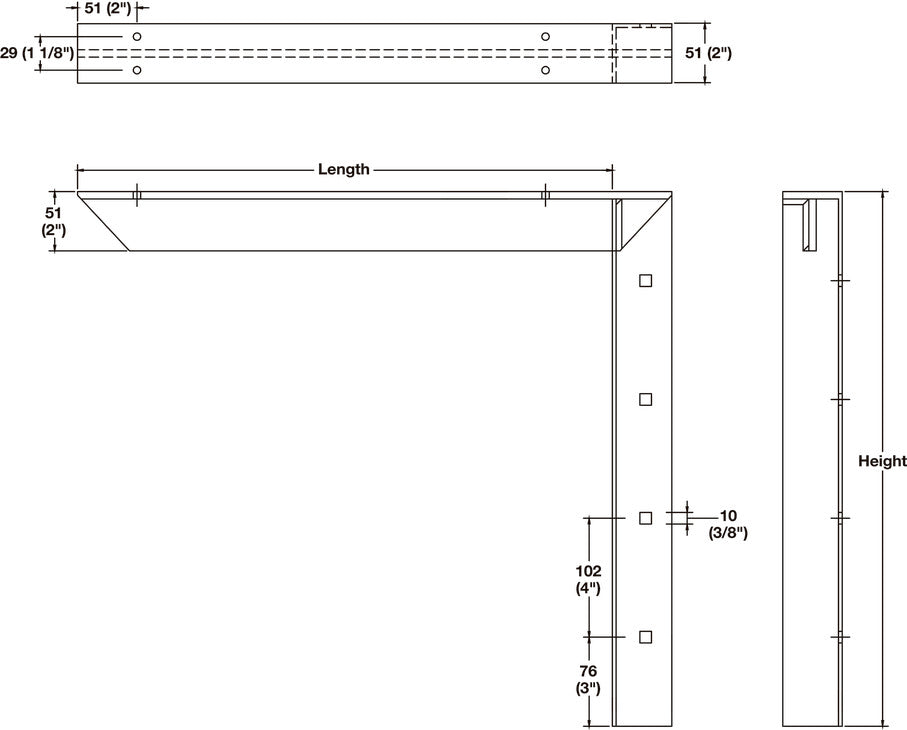

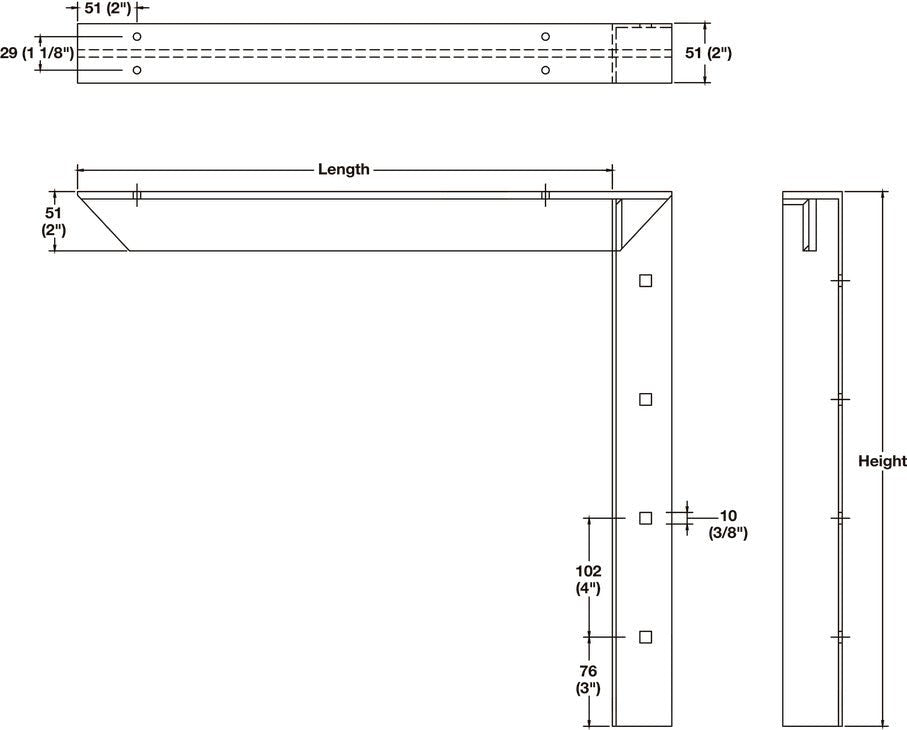

Available Standard Dimensions (Length x Height)

• 18" x 18" (457 mm x 457 mm)
• 21" x 18" (533 mm x 457 mm)
• 24" x 18" (610 mm x 457 mm)

Installation & Mounting Instructions

1. Expose Framing: Uncover the target 2x4 or 2x6 wooden wall studs before drywalling.
2. Align Bracket: Position the vertical right-angle flange against the side face of the wall stud at your target counter height.
3. Secure Hardware: Fasten the bracket securely into the stud using the included 3/8"-16 carriage bolts through pre-drilled flange holes.
4. Hang Drywall: Notch and install sheetrock around the horizontal arm, concealing the vertical mounting flange inside the wall cavity.
5. Set Countertop: Lower your stone top, desk surface, or heavy floating bench onto the extended arms and secure as required.

Ideal Applications

• Floating Countertop Overhangs: Subtly support heavy granite, quartz, or concrete islands and breakfast bars.
• Floating Vanities & Benches: Anchor heavy bathroom stone tops and floating wood entryway benches.
• ADA Accessible Workstations: Modern floating office desks and commercial reception counters requiring clear knee space.
• Heavy Wall-Mounted Shelving: Concealed heavy-duty structural shelving in residential or commercial interiors.
