Maximum Stability & Anti-Tip Security Over Long Spans

Take your custom floating shelf installations to a professional standard with the Hafele Aluminum Floating Shelf Extrusion Rail. Specifically engineered to pair seamlessly with premium concealed support brackets (including model HA283.33.941), this heavy-duty architectural profile acts as a structural spine along the rear wall edge. When your shelf panel is properly back-routed, this extrusion seats cleanly to provide an integrated anti-tip feature, preventing sagging, tilting, or forward shifting under heavy loads. It is an indispensable system component for builders, custom cabinetmakers, and contractors installing wide spans in high-traffic kitchens, luxury closets, and commercial displays.

Key Benefits

• Integrated Anti-Tip Safety: Designed to hook into matching concealed brackets, eliminating shelf roll or accidental detachment when loaded forward.
• Continuous Structural Reinforcement: Distributes the downward pressure evenly over long, heavy-duty shelving spans to prevent center warping.
• Fully Customizable Length: Ships as a full 2.5-Meter (approx. 98-7/16") mill-finish aluminum track that can be easily cut, drilled, and trimmed down to match your exact shelf dimensions using a standard metal saw.
• Low-Profile Sub-Flush Seating: With a slim width of 13mm and height of 19.5mm, it recesses completely out of sight into the back of your routed wood panel.
• Stud-Aligned Anchor Points: Allows you to drill mounting holes exactly where your wall studs dictate, delivering rigid structural security.

Technical Specifications

• Manufacturer Part Number: 833.74.894
• Total Length: 98-7/16" inches (2500 mm / 2.5 Meters)

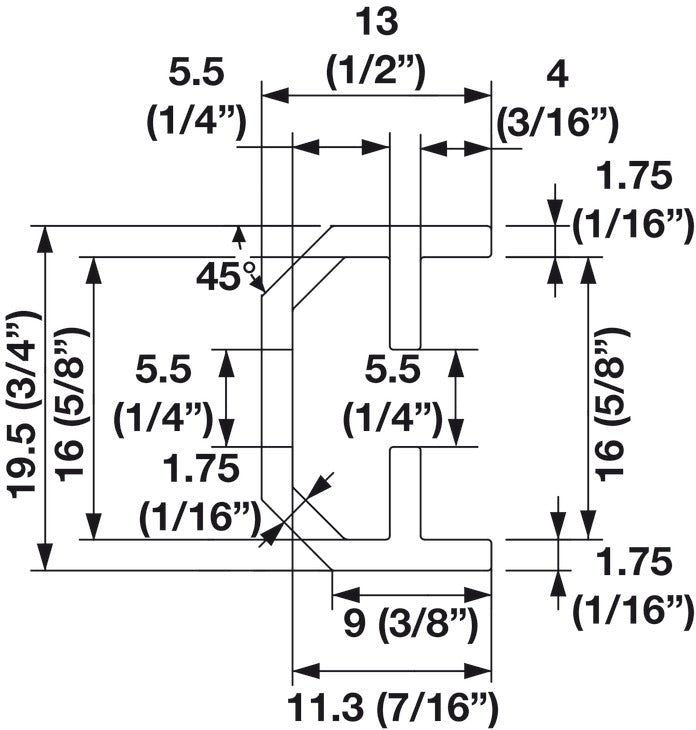

• Profile Height: 19.50 mm
• Profile Width: 13.00 mm
• Material: Premium Extruded Aluminum (Mill Finish)
• System Component Compatibility: Tailored for use alongside Häfele series HA283.33.941 (and matching 4-1/2" adjustable concealed support brackets).
• Load-Bearing Capacity: Up to 110 lbs. (50 kg) when correctly anchored into solid backing wall studs.
• Installation Method: Screw-mounted flush against the wall plate.

Required Assembly Components & Accessories

To ensure an effortless out-of-the-box installation experience, don't forget to add these critical project components to your cart:

1. Adjustable Concealed Shelf Brackets: The floating steel arms that slip into the shelf body and lock onto this track. (Rule of thumb: 2 supports for under 24", 3 for up to 48", 4 for up to 72").

2. Hafele Extrusion Hardware Bag (HA020.92.761): Contains the specialized internal metric bolts and weld nuts required to rigidly link your support brackets directly to the aluminum extrusion rail track.

3. Wall Mounting Screws: Heavy-duty #10 Pan Head Screws are highly recommended for biting deep into structural wood wall studs.

Professional Installation Recommendations

• The Routing Step: Route a clean, continuous slot on the rear edge of your shelf panel matching the 13mm x 19.5mm profile dimensions. This ensures a tight, flush, gap-free fitment completely flat against the drywall face.

• The Locking Trick: For permanent, rock-solid security that prevents all vibration or rattle, apply a small bead of quality silicone adhesive or construction glue inside the routed wood groove before permanently locking the shelf support over the rail.

• Cutting to Fit: When working with multiple small shelves, a single 8-foot rail can easily be cut into shorter lengths using a standard miter saw equipped with an aluminum-cutting blade or a manual hacksaw.

Frequently Asked Questions

Do I need this rail for every shelf bracket? While individual concealed brackets can be used solo on small accent ledges, this continuous extrusion rail is strongly recommended for shelves stretching over 2 feet or carrying heavy loads. It links the brackets together into a cohesive system and provides the crucial anti-tip locking mechanism.

How does it ship? Because this is a rigid, structural 8-foot (2.5m) architectural item, it ships securely in industrial packaging to ensure it arrives straight and unblemished.

Does it come pre-drilled? No. To maximize structural integrity, the rail comes as a solid aluminum extrusion. This allows you to drill your mounting holes precisely where your room's wall studs are located rather than relying on awkward, fixed pre-drilled spacings.
