Product details

Hafele Heavy-Duty 132 lb Capacity Full Extension Pullout TV Swivel Platform – 180° Pivot

Experience smooth, full-extension movement and a true 180° swivel with this heavy-duty TV platform designed for entertainment centers, computer terminals, and commercial applications. Built with a full-size pull-out platform, precision ball-bearing runners, and a robust 132 lb load rating, this system delivers exceptional stability, range of motion, and smooth performance for both residential and commercial installations.

Key Features

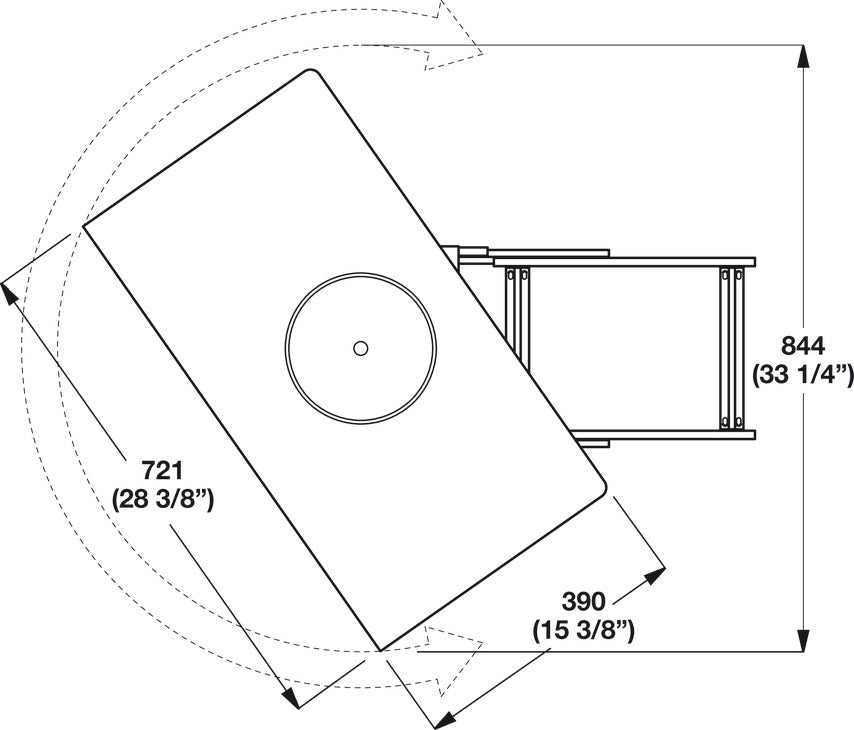

  • 180° Full Swivel Range: Easily rotate your TV for the perfect viewing angle in virtually any direction.
  • Heavy-Duty Load Capacity: Robustly supports up to 132 lbs (load capacity is dependent on installation and placement).

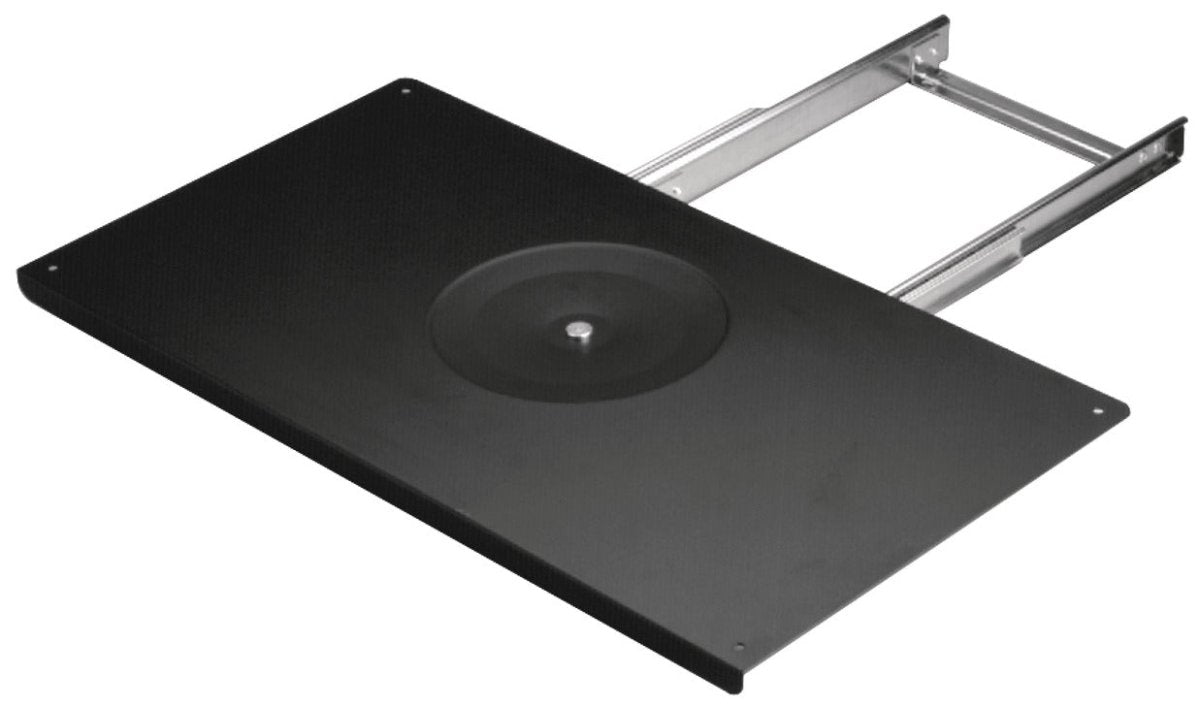

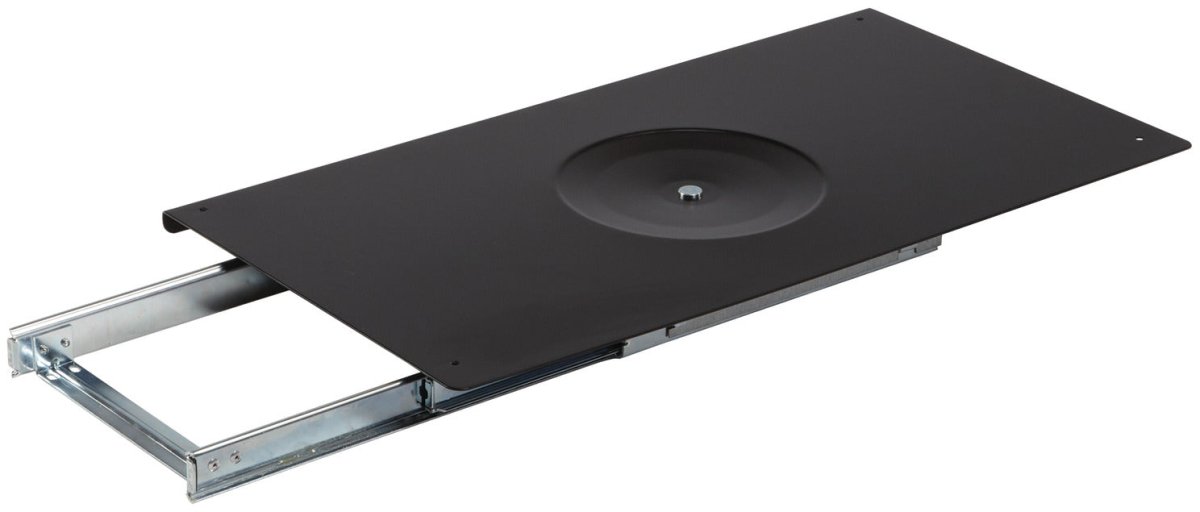

  • Full-Size Pull-Out Platform: Includes a complete platform with an integrated easy-grip pull-out strip for smooth and intuitive operation.

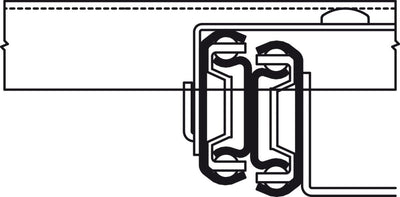

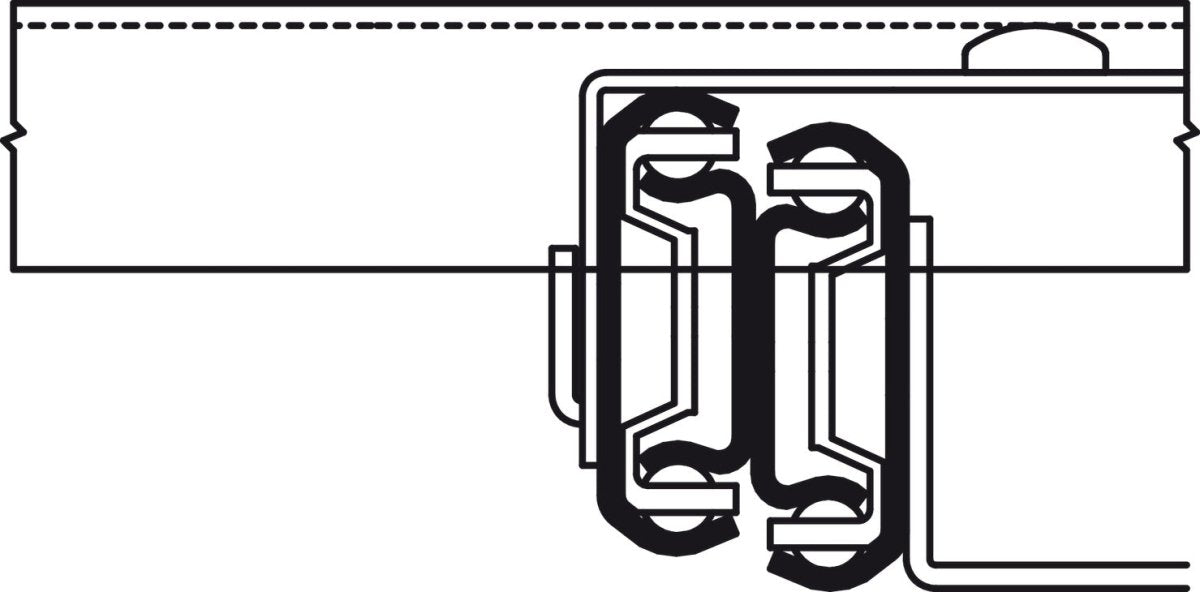

  • Smooth, Controlled Movement: Precision ball-cage guided runners ensure consistent, controlled extension with long-lasting durability, even under frequent use.
  • Commercial-Grade Steel: Constructed from high-strength steel with a black platform and galvanized slide components for superior durability.
  • No Fabrication Required: Installs directly—no need to build a secondary TV mount surface.

Technical Specifications

Specification Details
Material Steel (Black platform, galvanized slides)
Load 132 lbs
Swivel 180°
Guidance Ball-cage guided runners (Ball-Bearing)
Platform Full-size pull-out platform with pull-out strip
Use Entertainment centers, computer terminals, RVs, kiosks, displays
Hardware Mounting hardware is not included



SKU: HA423.93.310
