Hafele Loox LED Constant Voltage Driver | 90W Output | 12V or 24V DC Power Supply
Product details
Hafele Loox Constant Voltage 90W LED Driver: The Reliable Power Hub for Extensive Lighting
Designed for professional installations and larger lighting applications, the Häfele 90W Constant Voltage Driver delivers stable, consistent power for your Loox LED lighting system. Ideal for powering long runs of strip lighting, multiple fixtures, or complex cabinet, furniture, and shelving projects, this driver ensures your lights perform with maximum brightness and reliability.
Key Features & Benefits
- High-Capacity Power: With a robust 90W output, this driver can handle extensive lighting setups, making it the perfect choice for kitchens, large closets, display cases, and commercial projects.
- Extremely Slim Profile: Measuring only 16 mm (5/8 inch) in height, the driver can be discreetly installed in confined spaces, tight furniture voids, or within closet storage areas, maintaining a clean and hidden aesthetic.

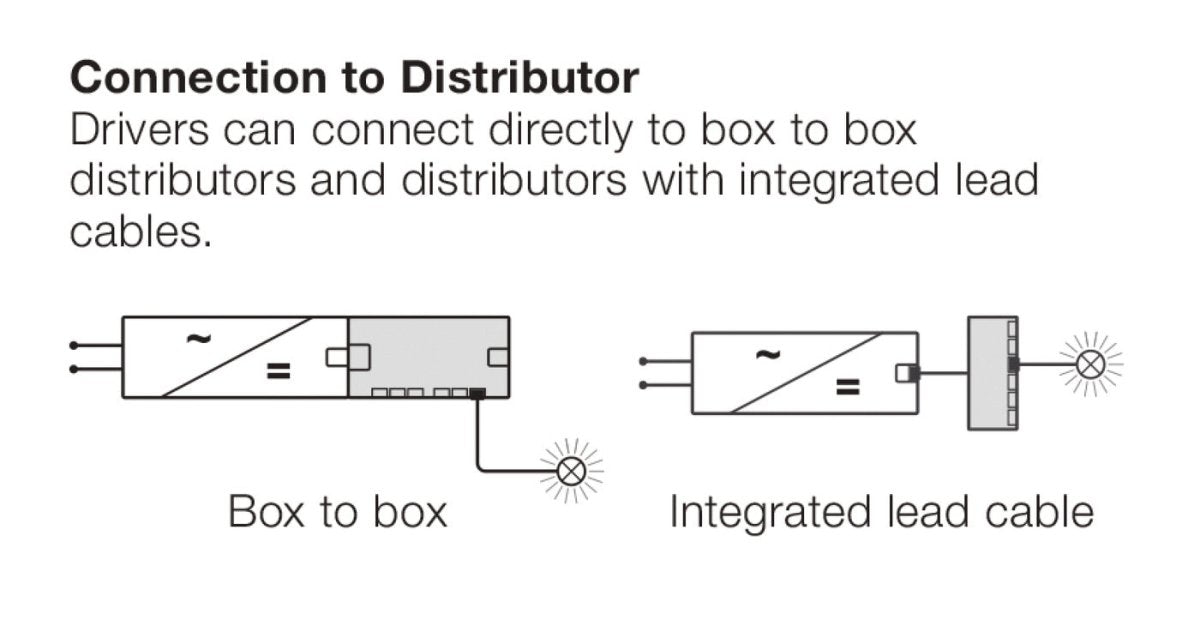

- Plug-and-Play System: The driver is equipped with the latest Loox5 plug system for simple, plug-and-play connections to Loox lighting fixtures and distributors.
- Universal Input Voltage: Accepts a wide 100–240 V AC input, making it suitable for use with most mains voltages and frequencies globally.
- Safe & Reliable: Features built-in overload protection to ensure a long service life and safe operation within your cabinetry and furniture. It has an IP20 degree of protection and is suitable for use within closet storage spaces.
Installation & Control

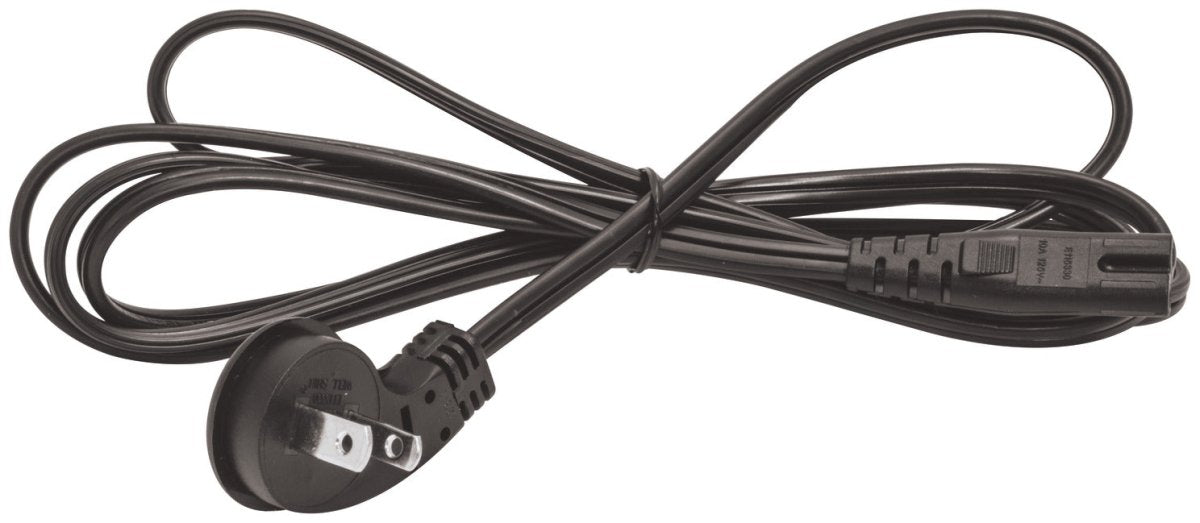

Installation is simplified with a 90° power cord with a C7 socket, allowing for flexible routing during mounting. While the driver is not dimmable with standard 120V wall dimmers, it is fully compatible with low-voltage switches, dimmers, sensors, and wireless remote controls when used with a compatible Loox distributor.
5. Key Technical Specifications
| Specification | Detail |
|---|---|
| Output Power | 90W |
| Output Voltage | 24V DC (Also available in the 12V Loox system family) |
| Input Voltage | 100–240 V AC |
| Mains Frequency | 50–60 Hz |
| Height | 16 mm (5/8 inch) |
| Connections | 1 x socket, Loox5 2-pin 24 V (Box-to-Box) |
| Protection | Overload Protection (Built-in) |
| Degree of Protection | IP20 |
| Secondary Circuit | Parallel Connection |
| Max Lead Length | 10,000 mm / 10 m (393 11/16") |
| Supplied With | 1 driver, 1 US power cord, mounting accessories |
| Manufacturer Part # | 833.95.011 (or 833.86.561) |
Note on Lead Length: Long cable lengths (approaching the 10m maximum) in combination with large lighting loads can result in slight voltage losses, which may lead to a visible loss of brightness in the lights.
