Hafele Loox5 4-Port Series 24V Driver: Integrated Control for Smaller LED Installations

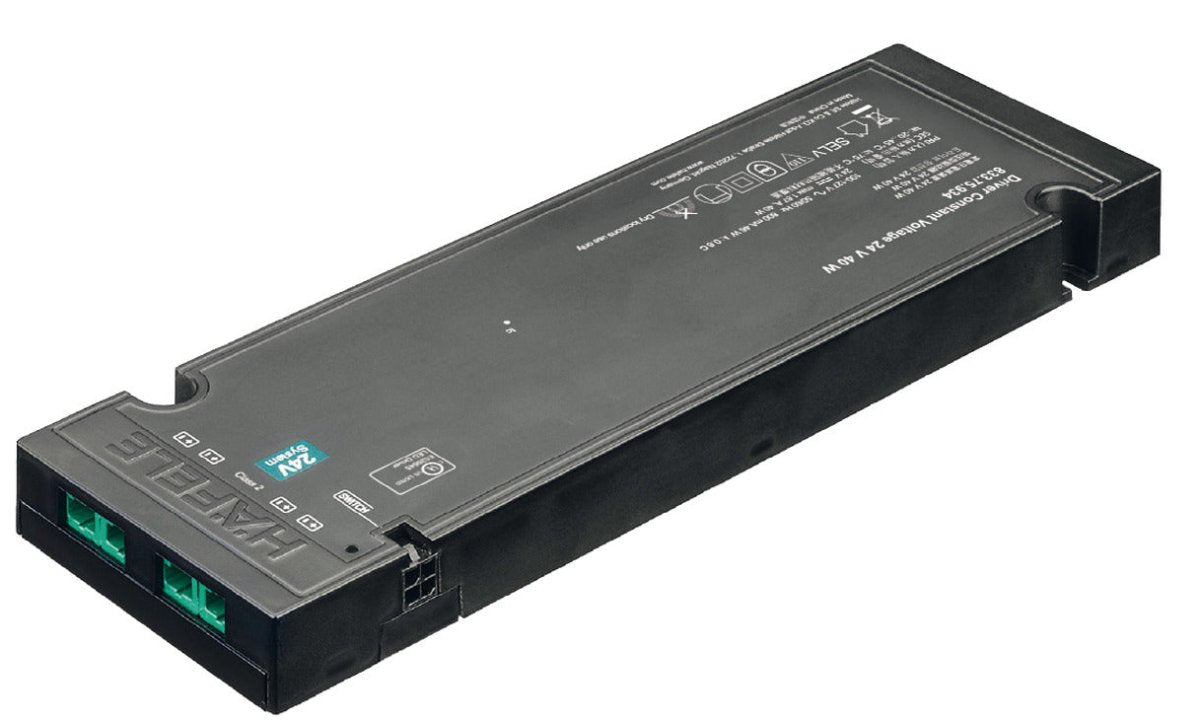

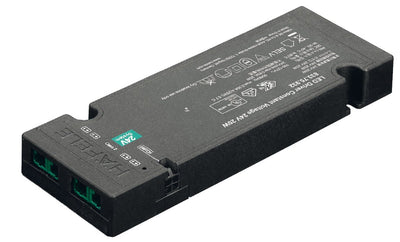

The Hafele Lighting 4-Port Series 24V Driver is the ideal all-in-one power and connection solution for smaller LED lighting projects in cabinets, furniture, and shelving. This driver integrates four Loox5 output ports and a dedicated control port, streamlining your installation while providing safe and reliable 24V DC power.

Key Features & Benefits

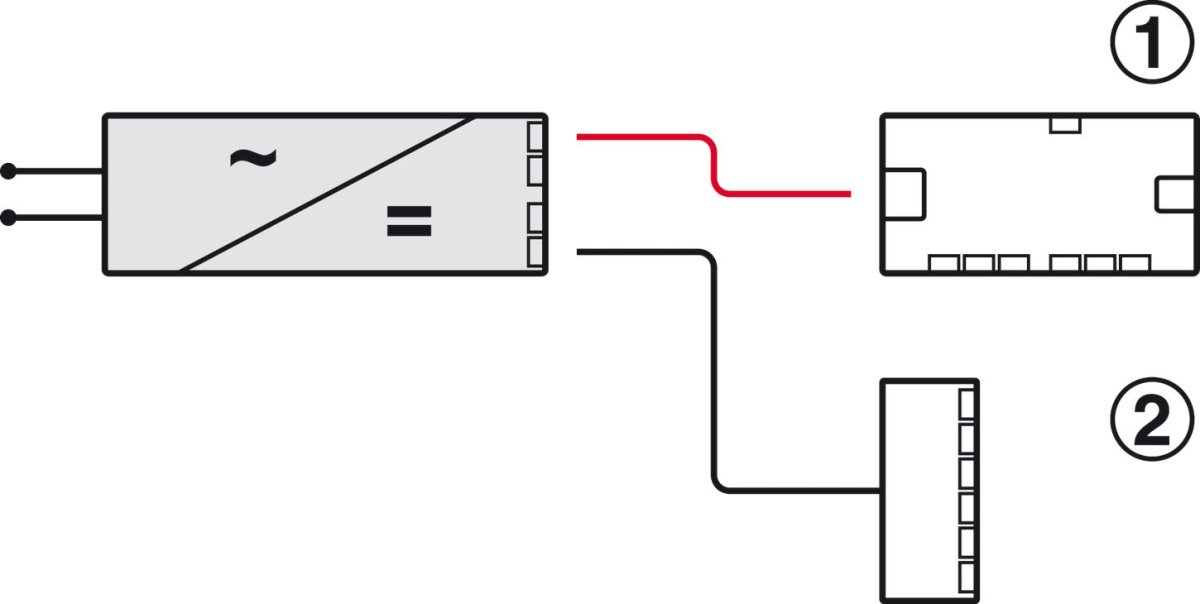

• Integrated Distribution: Features Four Loox5 output ports for connecting up to four 24V LED lights or distributors.
• Dedicated Control: Includes a Switch Port (Control Input Port) for easy connection of a Loox switch, dimmer, or sensor to control the connected lights.
• Slim & Discreet: With an extremely flat height of just 16 mm (5/8 inch), the driver is easily concealed using screw or glue fixing.
• Overload Protection: Classified as Safety Class 2 with built-in overload protection and IP20 degree of protection for long-term safety and reliability.
• Regional Compatibility: Specifically suitable for 100–127 V AC mains voltage, making it perfect for North and Central America, Japan, and Taiwan markets.

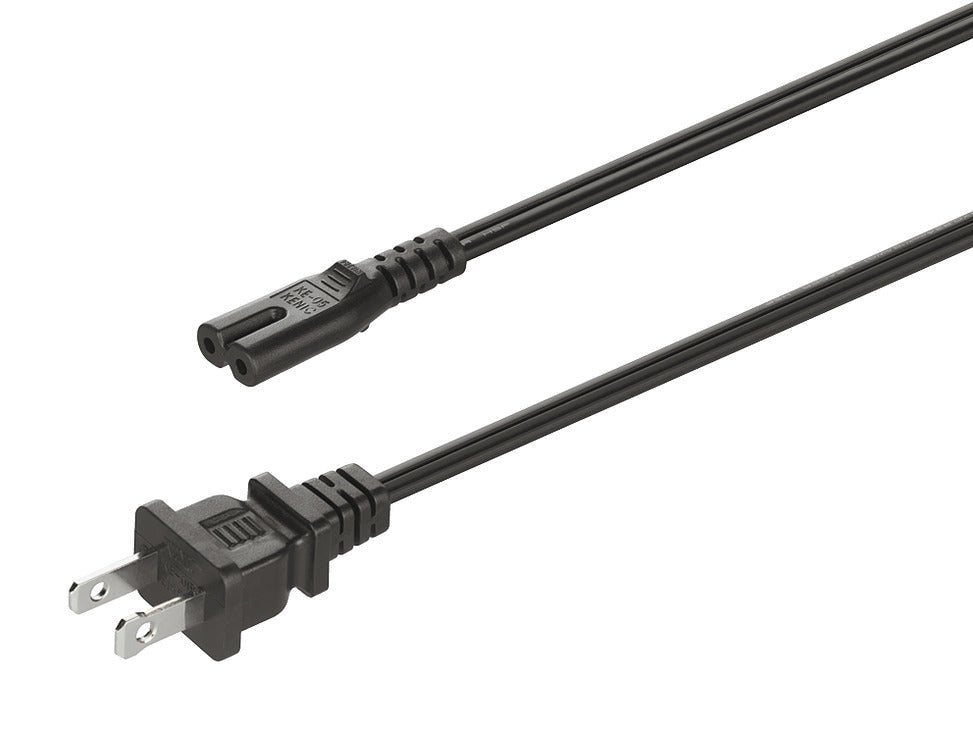

• Ready-to-Use: Supplied with one driver, mounting accessories, and a US power cord with a C7 socket.

Choosing Your Wattage

Select the 20W option for smaller loads (e.g., a few short LED strips or puck lights) or the 40W option for medium-sized installations (e.g., longer strip lighting or a higher number of fixtures). Ensure the total wattage of your connected lights does not exceed the driver's maximum output power.

Key Technical Specifications
