Vendor:Hafele

Hafele Loox5 LED Constant Voltage Driver | 24V DC Output | 20W, 40W, & 90W Options

Sale price$44.29Regular price $79.99
Output power
Output power: 20 W
In stock, ready to ship

Pickup available at Van Alstyne

Usually ready in 4 hours

Pairs well with

Ships within 1-3 business days

Complimentary shipping*

30-day return window

Product details

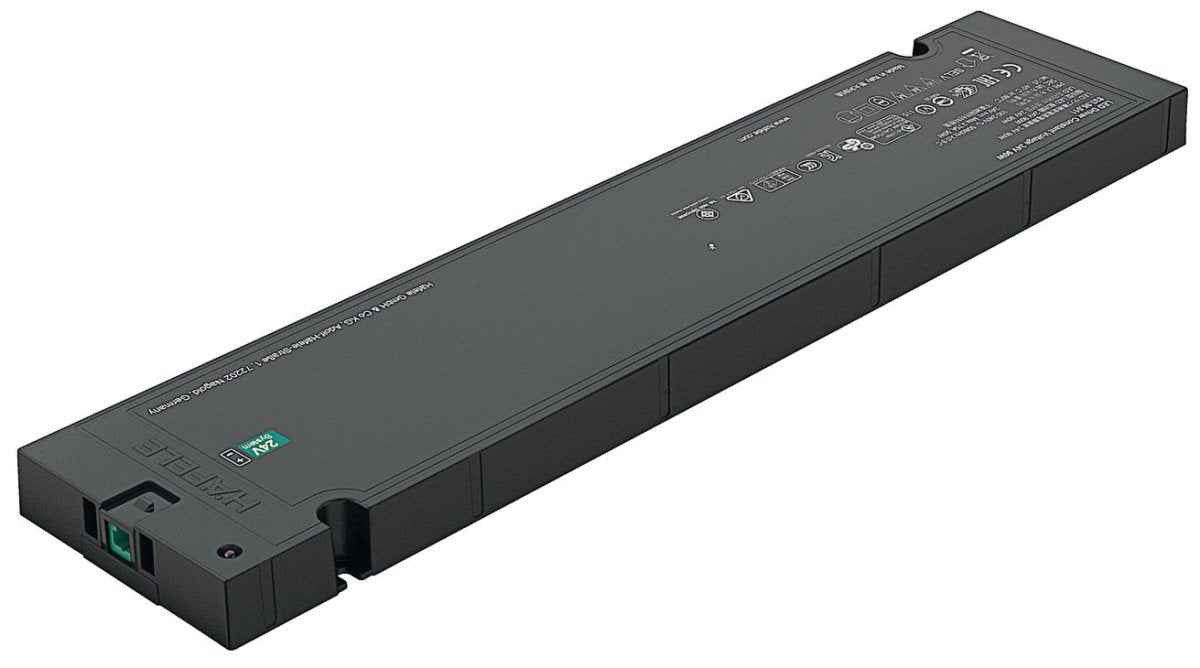

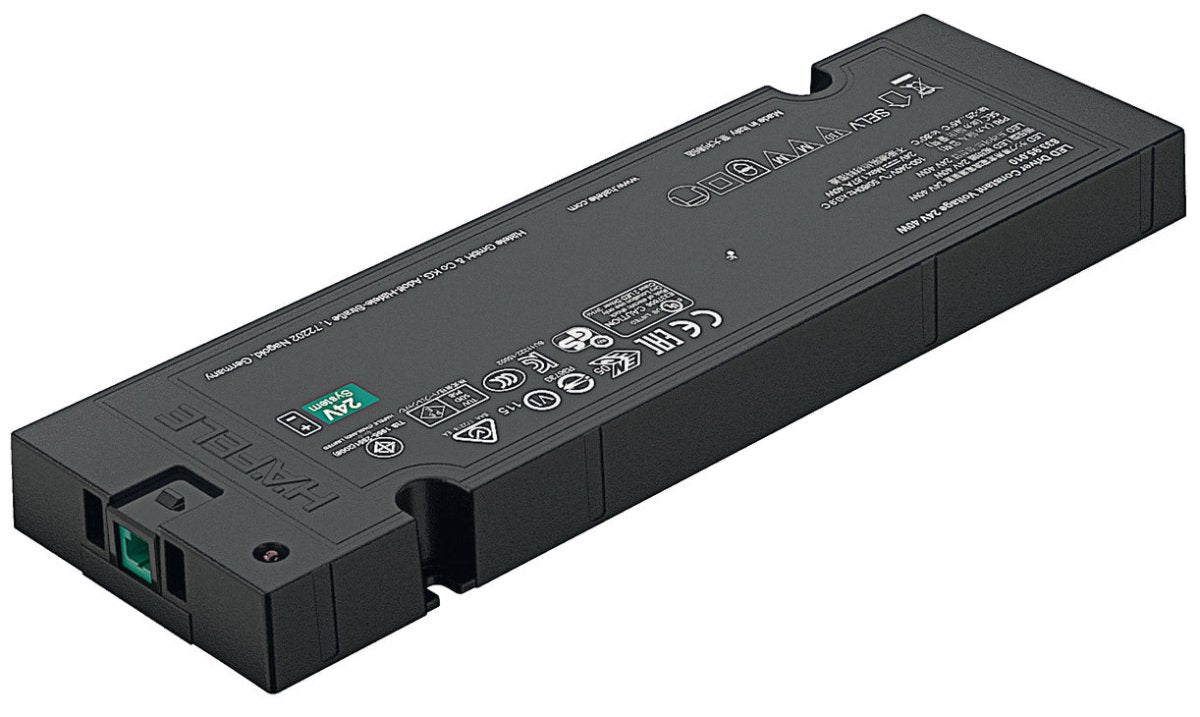

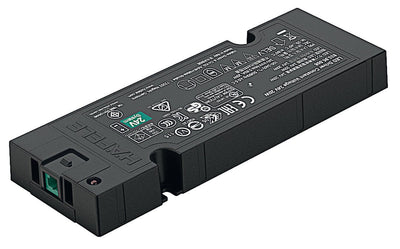

Hafele Loox5 Constant Voltage 24V LED Driver: Power & Precision in a Slim Profile

The Hafele Loox5 Constant Voltage 24V Driver provides a stable and reliable power source for all your 24V LED lighting applications in furniture, cabinets, and display units. Designed for universal compatibility and discreet installation, this driver is the backbone of the Loox5 system.

Key Features & Benefits
  • Multiple Power Options: Available in a range of wattages (20W, 40W, and 90W are the most common options) to perfectly match the power requirements of your lighting load.
  • Extremely Flat Design: With a height of just 16 mm, this driver is exceptionally flat and easily concealed in tight spaces within furniture or millwork.
  • Universal Mains Voltage: Suitable for use worldwide with an input voltage range of 100–240 V AC and a mains frequency of 50–60 Hz.

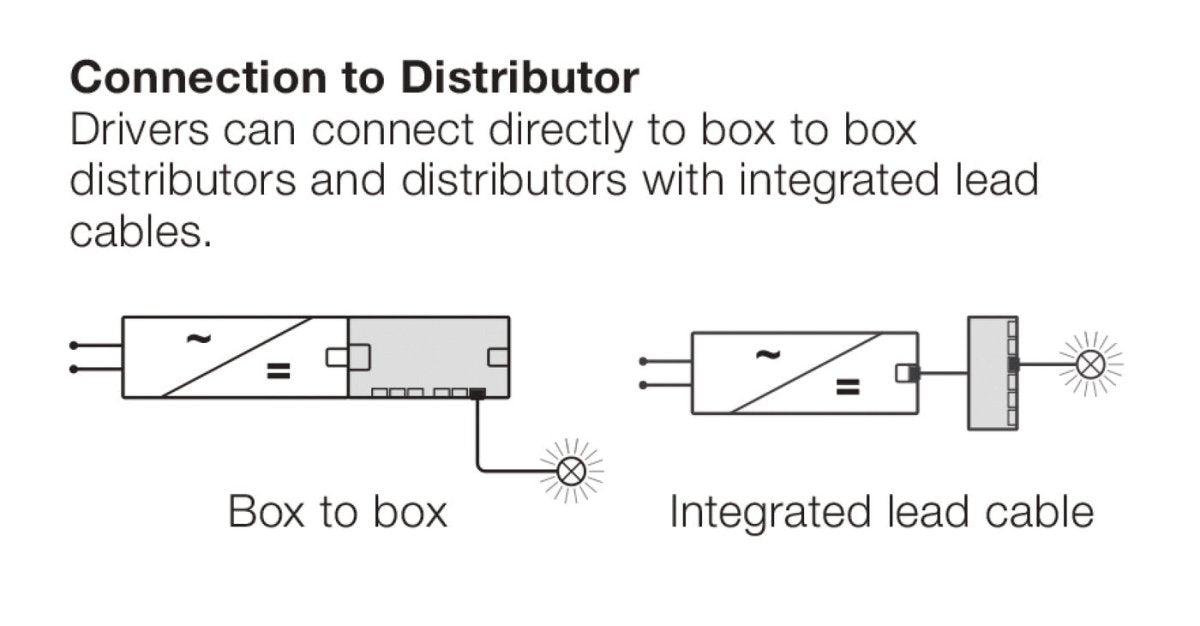

  • Loox5 Plug System: Features the latest Loox5 generation plug system for easy, secure, box-to-box connections to Loox switches, distributors, and lights.
  • Safety & Protection: Built with overload protection and classified as Safety Class 2 with an IP20 degree of protection, ensuring safe, long-term operation.
  • Simple Installation: Designed for installation with screws, it comes supplied with a US power cord and is ready for integration into your project.
Important Installation Information

To ensure the longest service life and reliability, it is essential to mount the driver in a location with sufficient air supply and circulation. Long cable lengths (up to 10 meters / 393 inches) combined with large loads can result in slight voltage losses, which may visibly reduce the brightness of the connected lights. Alternative mains leads with open cable ends or switches are available for purchase separately.

Key Technical Specifications (for various wattage options)
Specification General Driver Details
Output Voltage 24 V DC
Mains Voltage 100–240 V AC
Mains Frequency 50–60 Hz
Extremely Flat Height 16 mm
Protection Overload Protection, Safety Class 2, IP20
Input Port 1 x plug, Small appliances (for mains lead)
Output Port 1 x socket, Loox5 2-pin 24 V box-to-box
Secondary Circuit Parallel connection
Material / Color Plastic / Black
Max Lead Length 10,000 mm (393 11/16")

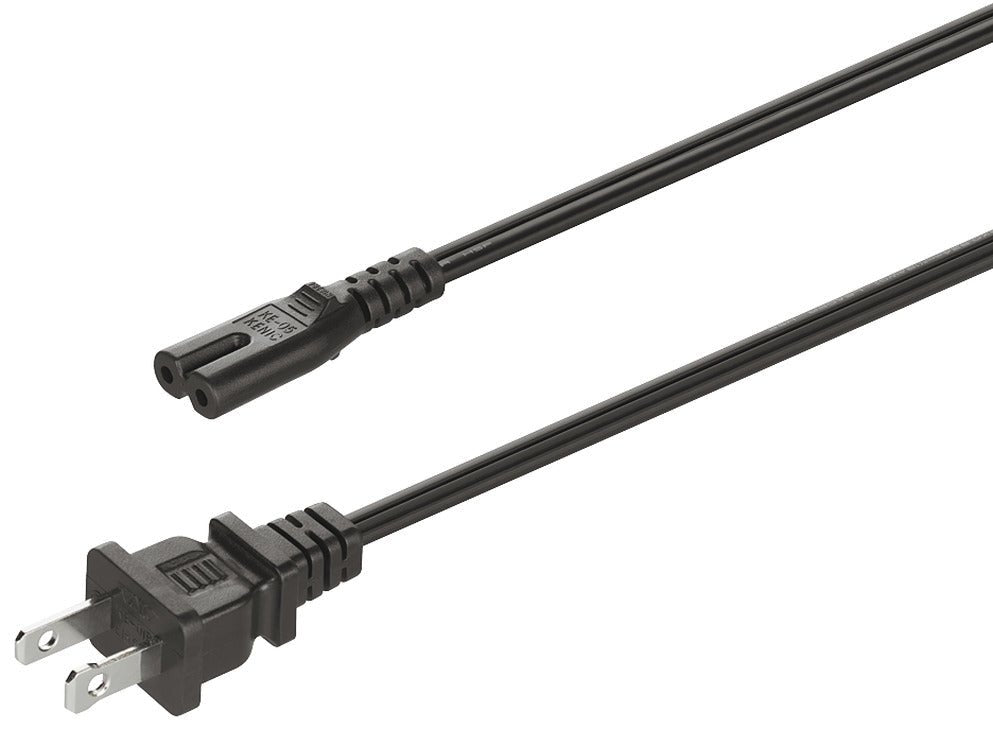

Supplied With 1 driver, 1 2m (78 3/4") US power cord (with C7 socket OR 90° plug and C7)
Wattage Option Cat. No. (Example) Efficiency at 230 V Weight
20 W 833.95.008 88 % 100 g
40 W 833.95.010 88 % 182 g
60 W 833.95.020 89 % 248 g
90 W 833.95.011 90 % 353 g

SKU: HA833.95.008
