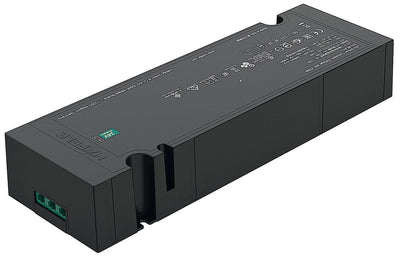

Hafele Loox5 High-Power 270W LED Driver: The Robust Solution for Large-Scale Installations

The Hafele Loox5 270W Constant Voltage Driver is engineered for extensive and high-demand LED lighting projects in North and Central America, Japan, and Taiwan. With its massive power output and regional suitability (100–127 V AC), this driver is ideal for powering multiple long LED strip lights, numerous fixtures, or large-scale commercial and residential cabinetry systems.

Key Features & Benefits

• High-Capacity Power: Delivers a powerful 270 W output (structured as 2 x 120W), enabling it to handle the most demanding lighting loads.
• Multiple Output Ports: Equipped with 3 sockets utilizing the secure Loox5 2-pin 24 V plug system, allowing for the direct connection of up to three independent distributors.
• Regional Compatibility: Specifically suited for 100–127 V AC mains voltage (North America, Japan, Taiwan), ensuring safe and efficient operation in these markets.
• Overload Protection: Features built-in overload protection and is classified as Safety Class 2 with an IP20 degree of protection for reliability and longevity.
• High Efficiency: Operates with a high efficiency of 92% at 115 V full load, minimizing energy waste.
• Robust Design: The driver's larger footprint and robust design are necessary for safely handling the high power output.

Installation & Requirements

Installation is straightforward using screws. Due to the high power output, it is critical to ensure that there is a sufficient air supply and circulation at the mounting location to prevent overheating. An extension lead is required to connect box-to-box distributors with this driver and must be ordered separately.

Key Technical Specifications
