Hafele Loox5 LED Drivers – 20W, 40W, 60W AC to 12V DC Power Supply for Cabinets & Furniture

Hafele Loox5 LED Drivers – 20W, 40W, and 60W Power Options with 12V DC Output

Upgrade your Loox5 LED lighting system with Hafele Loox5 Drivers. Designed to convert AC mains to 12V DC, these drivers come with a 90-degree power cable and are ideal for adjustable or fixed LED lighting in cabinets, furniture, and shelving systems. Available in 20W, 40W, and 60W power options, these drivers ensure reliable performance, overload protection, and long service life.

Models & Specifications

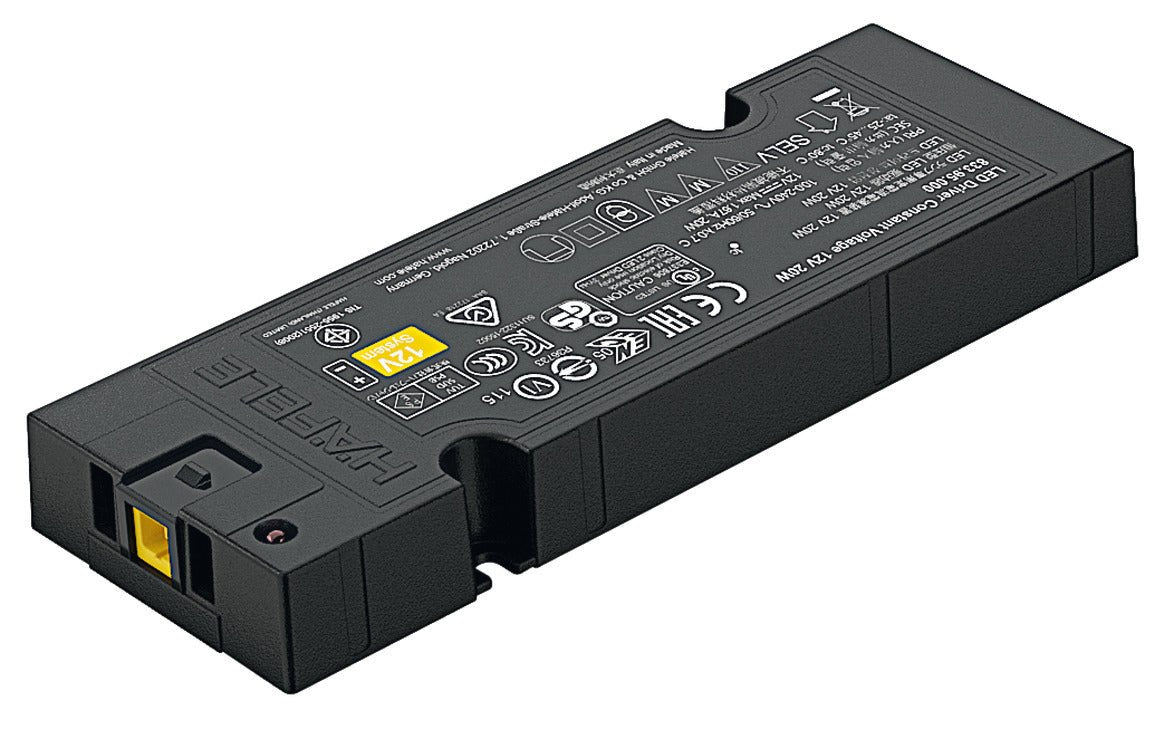

Loox5 20W Driver

• Input Voltage: 100–240 V AC
• Output Voltage: 12 V DC
• Power Output: 20W
• Mains Frequency: 50–60 Hz
• Plug Type: C (flat Euro plug, 2-pin)

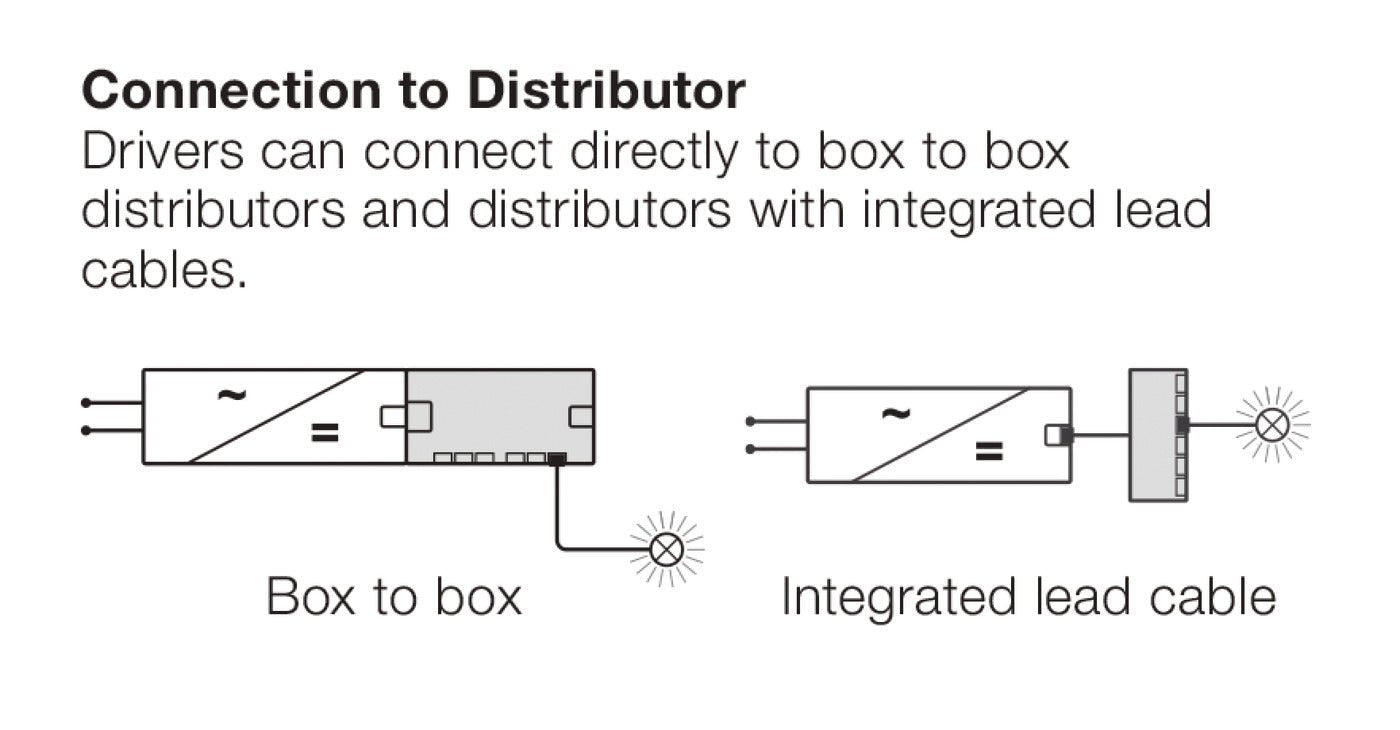

• Connections: 1 x Loox5 2-pin 12V socket (box-to-box)
• Secondary Circuit: Parallel connection
• Color/Finish: Black
• Installation: Screw mount; ensure adequate air supply and inspection opening
• Overload Protection: Yes
• Temperature Range: -25°C to +45°C
• Max Lead Length from Driver to Consumer: 10 m
• Service Life: Doubled if installed below 30°C
• Special Considerations: Long cables may reduce brightness due to voltage drop

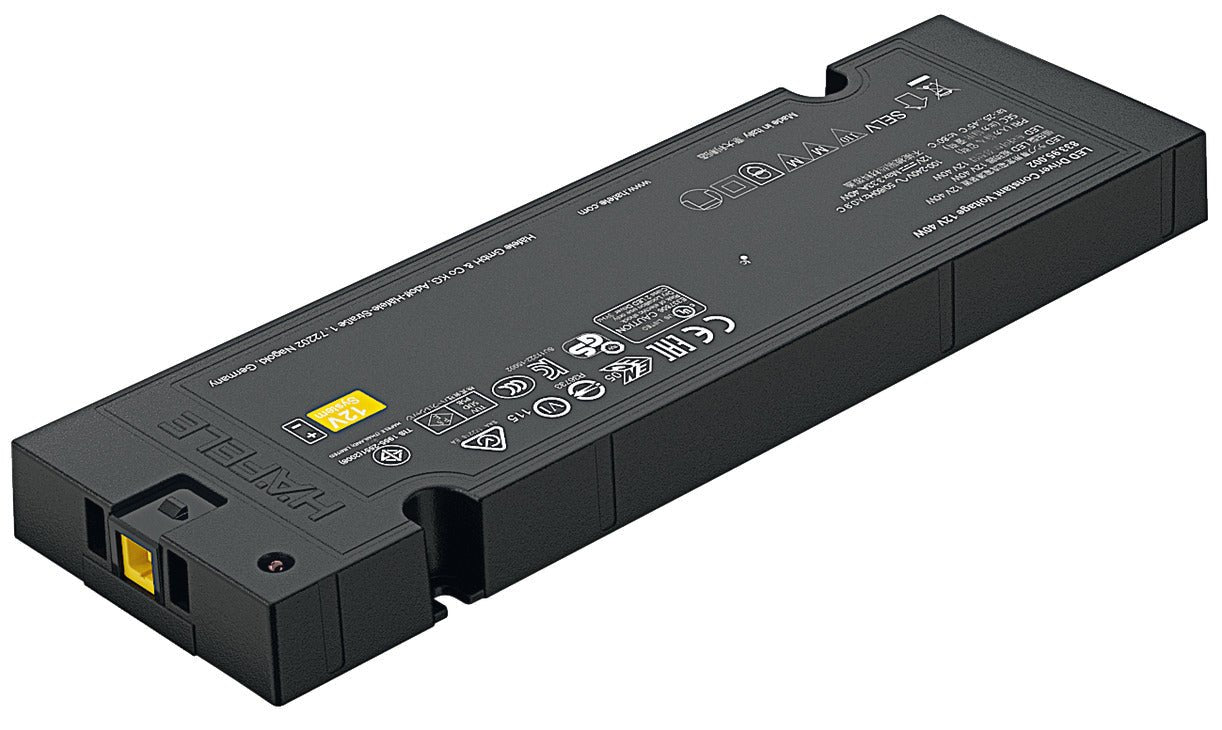

Loox5 40W Driver

• Input Voltage: 100–240 V AC
• Output Voltage: 12 V DC
• Power Output: 40W
• Mains Frequency: 50–60 Hz
• Plug Type: C (flat Euro plug, 2-pin)
• Connections: 1 x Loox5 2-pin 12V socket (box-to-box)
• Secondary Circuit: Parallel connection
• Color/Finish: Black
• Installation: Screw mount; ensure adequate air supply and inspection opening
• Overload Protection: Yes
• Temperature Range: -25°C to +45°C
• Max Lead Length from Driver to Consumer: 10 m
• Service Life: Doubled if installed below 30°C
• Special Considerations: Long cables may reduce brightness due to voltage drop

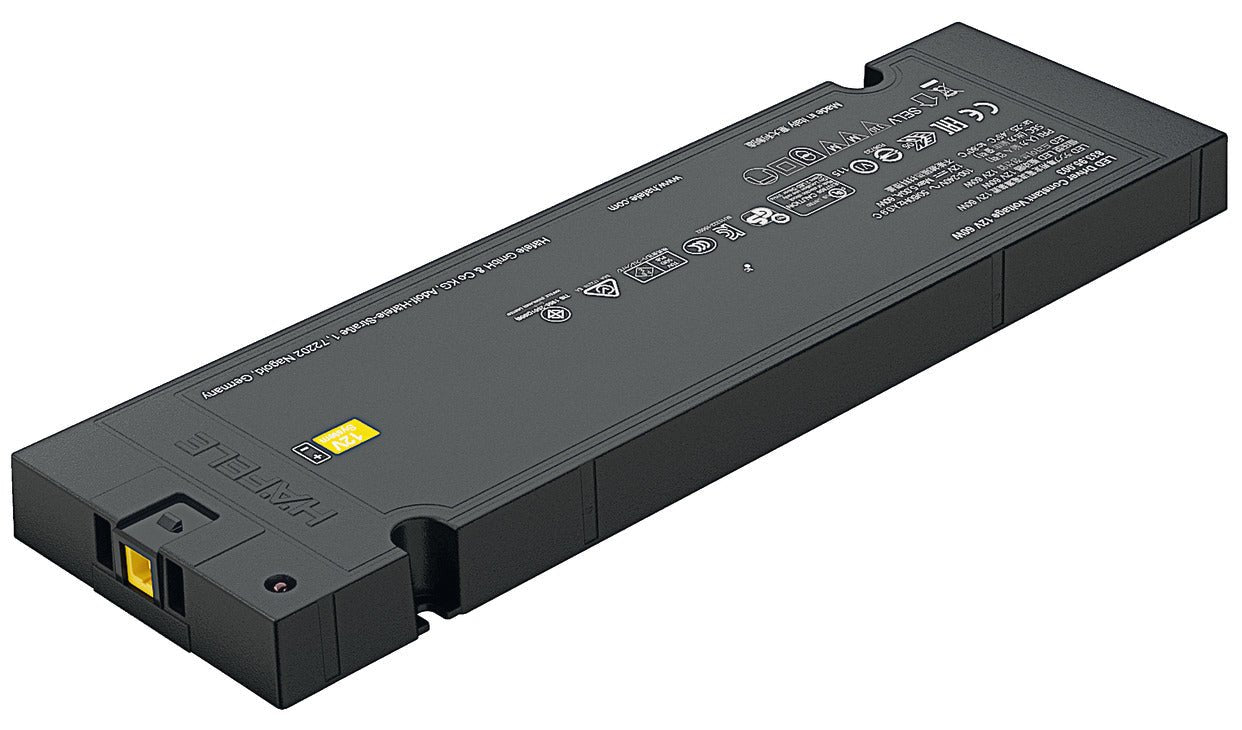

Loox5 60W Driver

• Input Voltage: 100–240 V AC
• Output Voltage: 12 V DC
• Power Output: 60W
• Mains Frequency: 50–60 Hz
• Plug Type: C (flat Euro plug, 2-pin)
• Connections: 1 x Loox5 2-pin 12V socket (box-to-box)
• Secondary Circuit: Parallel connection
• Color/Finish: Black
• Installation: Screw mount; ensure adequate air supply and inspection opening
• Overload Protection: Yes
• Temperature Range: -25°C to +45°C
• Max Lead Length from Driver to Consumer: 10 m
• Service Life: Doubled if installed below 30°C
• Special Considerations: Long cables may reduce brightness due to voltage drop

General Features for All Loox5 Drivers

• Voltage Loss: May occur with long cable lengths, especially for large loads like long LED strips.
• Overload Protection: Built-in for safe operation.
• Installation Requirements: Adequate ventilation and air circulation recommended; inspection opening suggested.
• Order Reference: Alternative mains leads with open cable ends or switches available separately.
• Service Life: Prolonged if installed below 30°C.

Hafele Loox5 Drivers provide a reliable, efficient, and safe solution for powering your Loox5 LED lighting systems in cabinets, furniture, and adjustable shelving. Choose the 20W, 40W, or 60W option to match your lighting load and enjoy precise, high-quality LED illumination.
