Hafele Loox5 Voltage Converter: Seamlessly Bridge 12V and 24V Systems

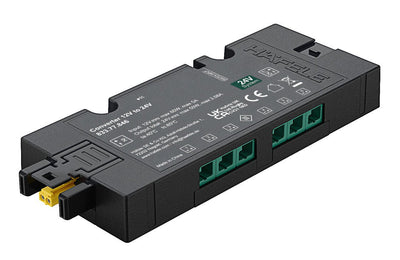

The Häfele Loox5 Converter is the essential link for integrating 24V Loox lighting components (such as LED strips or lights) with your existing 12V Loox drivers. This constant voltage converter allows you to utilize the wider range of 24V Loox devices without upgrading your entire power supply system, offering greater flexibility in your cabinet, furniture, and RV lighting projects.

Key Features & Benefits

• System Compatibility: Specifically designed to connect 12V DC drivers to 24V DC lights and components, maximizing the utility of your Loox system.
• High Output with Switching: Delivers a reliable 50.00 W output from a 60.00 W power consumption, and features 6 output ports with an integrated switching function for connecting multiple lights.
• Built-in Protection: Ensures a long, safe service life with built-in overload and short-circuit protection.
• RV & Mobile Ready: A special feature allows it to operate reliably with a voltage fluctuation from 11–14V, making it an ideal, stable power solution for recreational vehicles (RVs) and other applications with fluctuating voltage.
• Streamlined Installation: Uses the simple, reliable box-to-box plug connection for both the input from the 12V driver and the output to the 24V lights. The connection to the driver can also be made via a 12V extension lead.

Easy Integration

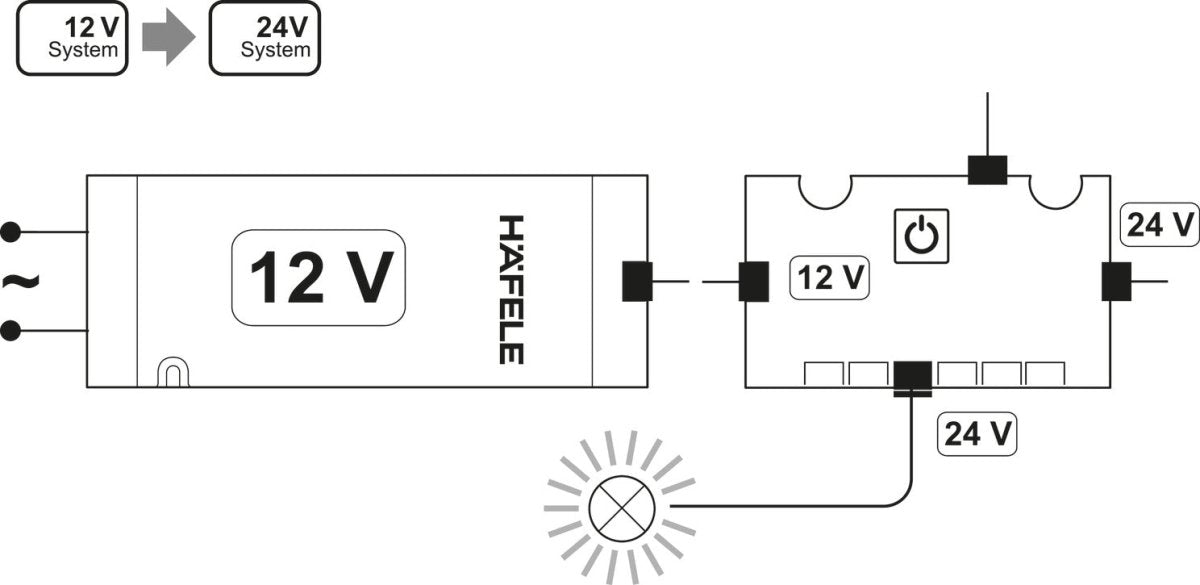

The sleek, compact design ensures it can be discreetly mounted within furniture and cabinets. Simply connect your 12V driver to the input port, and then connect your 24V lights and components to the six 24V output sockets and the single 24V box-to-box output.

Important Note: Ensure the total wattage of all connected 24V lighting devices does not exceed the maximum connected load for the original 12V driver.

Key Technical Specifications
