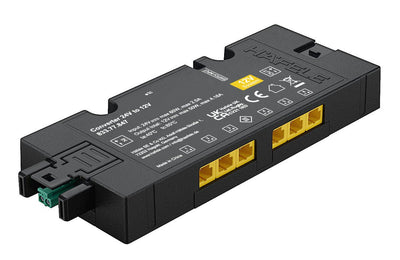

Hafele Loox5 Voltage Converter: Seamlessly Bridge 24V and 12V Systems

The Hafele Loox5 Converter is an essential component for any custom lighting project where you need to power 12V Loox LED components (such as lights, strip lights, or switches) using an existing 24V Loox driver. This constant voltage converter ensures that your 12V devices operate safely and reliably within the higher-voltage 24V system, giving you maximum flexibility in choosing your lighting fixtures.

Key Features & Benefits

• System Compatibility: Specifically designed to connect 24V DC drivers to 12V DC lights and components, allowing you to integrate both voltage systems seamlessly.
• High Output with Switching: Delivers a reliable 50.00 W output (from a 60.00 W power consumption), and features 6 output ports with an integrated switching function for connecting multiple 12V lights.
• Built-in Protection: Features built-in overload and short-circuit protection to ensure the safety and longevity of both the converter and your connected lighting fixtures.
• Easy Installation: Utilizes the simple, reliable box-to-box plug connection for both the input from the 24V driver and the output to the 12V lights. The connection to the driver can also be made via a 24V extension lead.
• Compact Design: With an extremely low profile of just 16 mm (5/8 inch), the converter can be discreetly hidden within cabinet voids, furniture, or closet storage areas.

How it Works

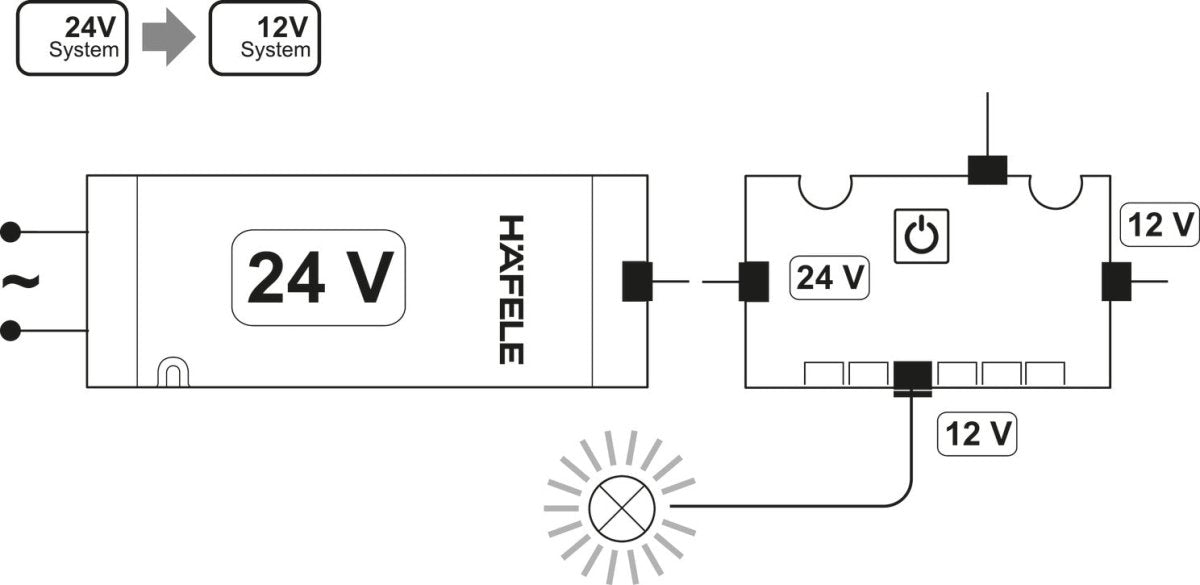

Simply connect your 24V driver to the 24V input port, and the converter automatically transforms the power down to 12V. You can then connect your 12V lights and components to the six 12V output sockets and the single 12V box-to-box output. The dedicated control input port allows for connecting a Loox switch or sensor.

Important Note: Ensure the total wattage of all connected 12V lighting devices does not exceed the maximum connected load for the original 24V driver.

Key Technical Specifications
