Hafele Miter Hinge GS 45/90 – 135° Opening Angle. Crafted in Germany for Precision and Durability

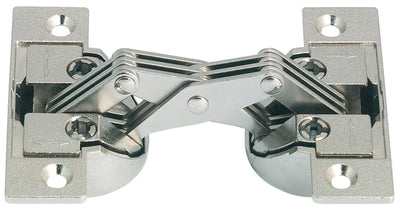

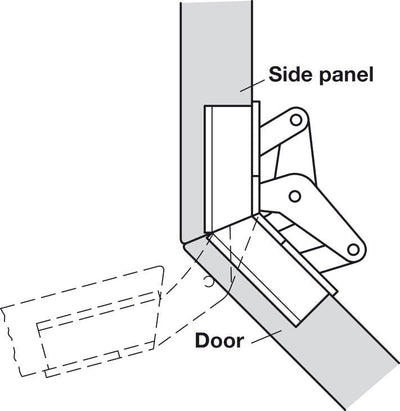

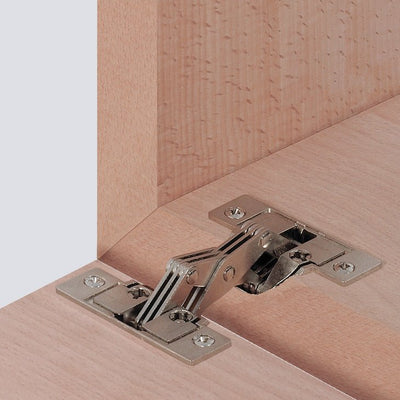

Enhance your cabinetry with the Häfele Miter Hinge GS 45/90, the only concealed hinge designed for furniture structures with mitered cabinet corners and doors. With a 135° opening angle, this hinge ensures seamless functionality and remains completely invisible when the door is closed.

Key Features

• Concealed Design: Remains invisible when the door is closed, maintaining a sleek and clean appearance.
• Versatile Application: Suitable for both doors and flaps, offering flexibility in cabinetry design.

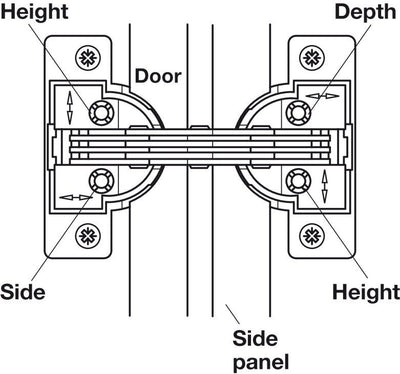

Adjustable Settings

• Side Adjustment: ±1.5mm
• Depth Adjustment: ±1.5mm
• Height Adjustment: ±3mm

Easy Installation
Screw-mounted for secure and straightforward assembly.

Compatible Dimensions

• Door Thickness: 16–22mm
• Side Panel Thickness: 16–20mm

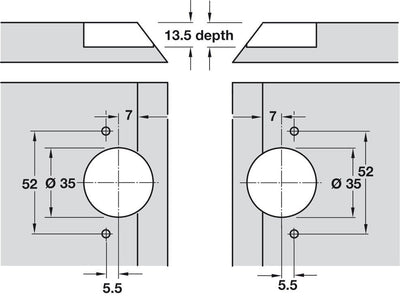

• Cup Drilling Depth: 13.50mm
• Cup Diameter: 35.00mm

Door Material
Ideal for wooden doors with cup drilling for assembly.

Premium Materials

• Cup: Zinc Alloy
• Hinge Arm: Steel
• Finish: Nickel Plated

Specifications

• Opening Angle: 135°
• Cup Fixing: For screw fixing

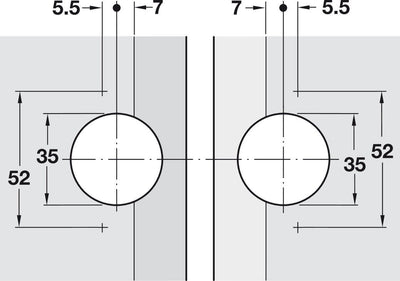

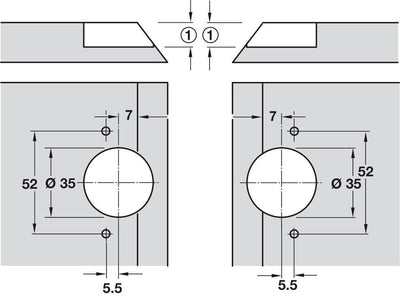

• Drilling Pattern: 52/5.5

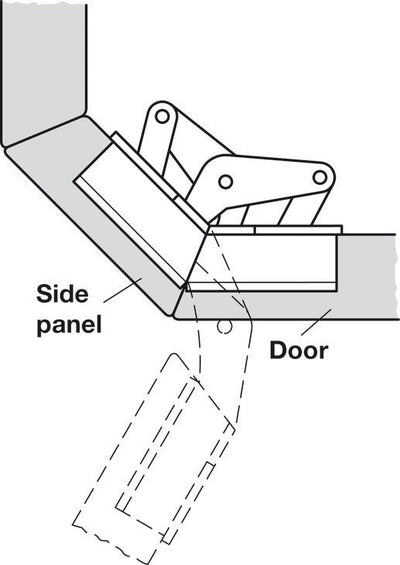

• Chamfer Requirement: 45° chamfer on edges; provide 2mm door gap all around.
• Installation Reference: For side panel thicknesses of 20mm, edges must be chamfered by 3mm.

Recommended Uses for Miter Flap Cabinet Hinge GS 45/90

• Cabinet Doors

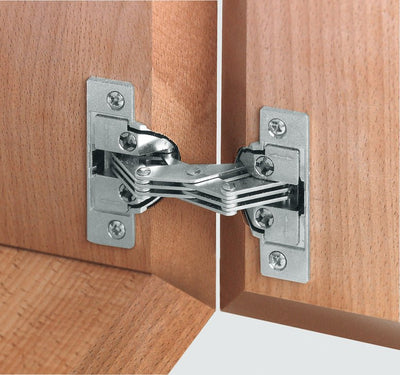

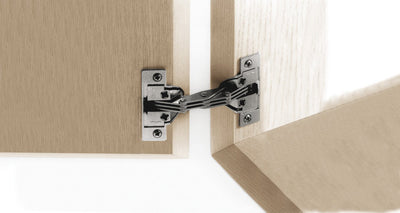

  Perfect for mitered cabinet corners and furniture structures.
• Flap Doors
  Ensures smooth operation for flap and lid-style doors.
• Invisible Integration
  Concealed design for modern and sleek cabinetry.
• Versatile Cabinetry
  Ideal for residential and commercial furniture projects requiring mitered joints.

Why Choose the Hafele Miter Hinge GS 45/90?

• Made in Germany
  Engineered with precision and crafted from premium materials for lasting performance.
• Designed for Professionals
  Built for cabinetmakers and DIY enthusiasts who demand quality and reliability.
• Elegant Aesthetics
  Nickel-plated finish complements a variety of cabinet styles.
• Functional Excellence
  Combines easy installation, adjustability, and seamless integration for flawless cabinetry.

Upgrade your cabinetry with the Hafele Miter Hinge GS 45/90 – the ultimate hinge solution for precise, functional, and visually appealing furniture designs.
