Richelieu Hardware Drawer Cabinet Cam Lock for Panel Thickness up to 23 mm
Richelieu Hardware Drawer Cabinet Cam Lock for Panel Thickness up to 23 mm
Richelieu Hardware Drawer Cabinet Cam Lock for Panel Thickness up to 23 mm
Richelieu Hardware Drawer Cabinet Cam Lock for Panel Thickness up to 23 mm
Richelieu Hardware Drawer Cabinet Cam Lock for Panel Thickness up to 23 mm

Richelieu

Richelieu Hardware Drawer Cabinet Cam Lock for Panel Thickness up to 23 mm

$6.49
Color
Color: Black
Style
Style: Keyed Alike
In stock, ready to ship

Pickup available at Van Alstyne

Usually ready in 4 hours

Pairs well with

Ships within 1-3 business days

Complimentary shipping*

30-day return window

Product details

Richelieu Hardware Drawer Cabinet Cam Lock for Panel Thickness up to 23 mm - Available in Black, Brass, and Chrome Finishes

Secure your cabinet doors and drawers with the Richelieu Hardware Drawer Cabinet Cam Lock. Designed for versatility and ease of use, this cam lock is perfect for enhancing both security and convenience in your home or office.

Key Features:

  • Versatile Security: Suitable for panel thicknesses up to 23 mm, this cam lock provides a secure solution for a variety of applications, including single drawers and cabinet doors.
  • Multiple Finish Options: Available in three stylish finishes - black, brass, and chrome - to match your cabinet hardware and decor.
  • Key Options: Choose between keyed alike (#1, #2, #3) or keyed different options to suit your security needs.
  • Comprehensive Kit: Each set includes 1 housing, 1 stem washer, 1 hexagonal collar nut, 1 straight cam, 1 angled cam (120°), 1 screw, 1 eyelet washer, and 2 keys, ensuring you have everything needed for installation.
  • Convenient Operation: Features a 90-degree opening for easy access and secure locking.
  • Durable Construction: Made from high-quality zinc alloy, ensuring long-lasting durability and reliable performance.

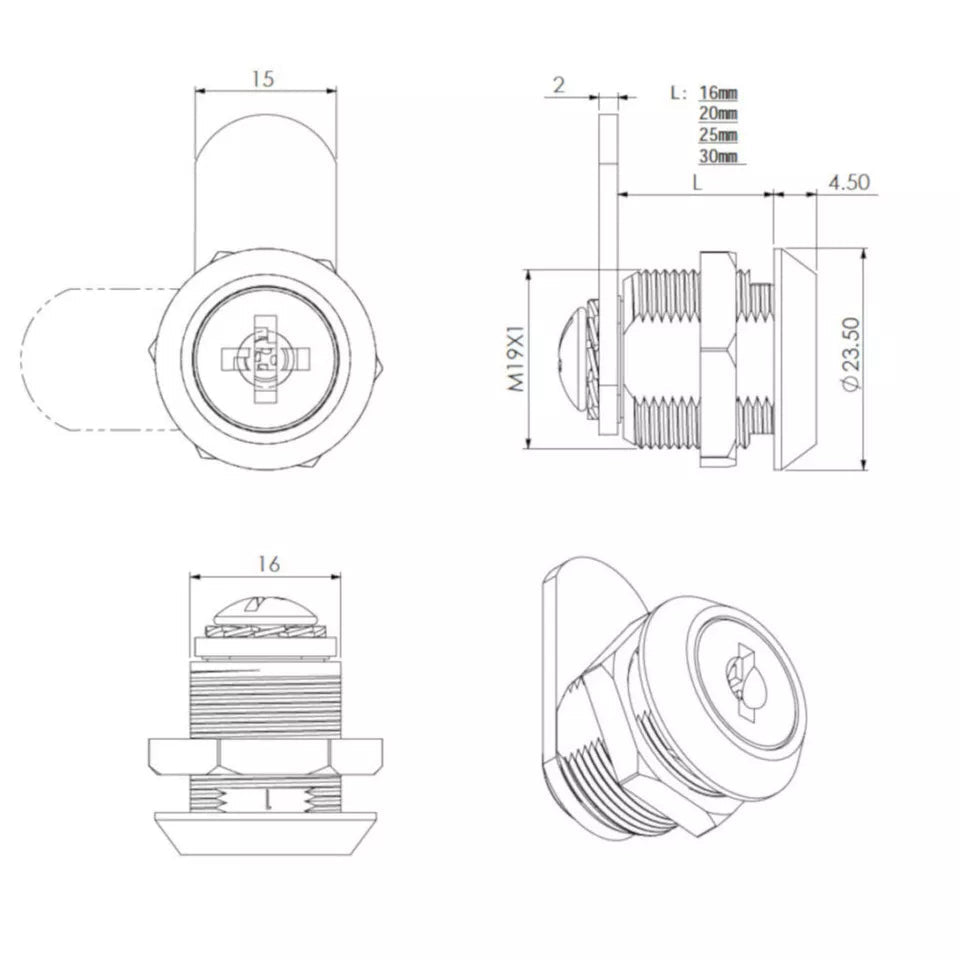

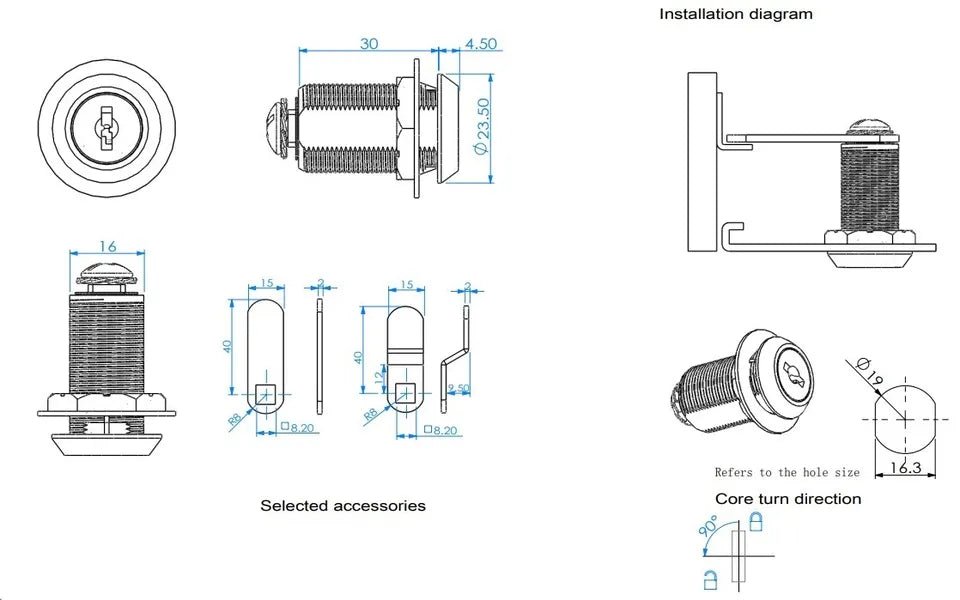

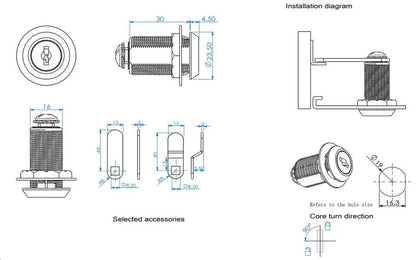

Technical Specifications:

  • Offset Cam - Cranked: 12 mm
  • Panel Thickness: Up to 23 mm
  • Cylinder Diameter: 16 mm
  • Cylinder Length: 30 mm
  • Cam Lock - Length to Axis: 38 mm, 40 mm
  • Offset Cam - Height: 9.5 mm, 14.5 mm
  • Application: Ideal for securing single drawers
  • Material: Zinc Alloy
  • Position: Reversible for flexible installation

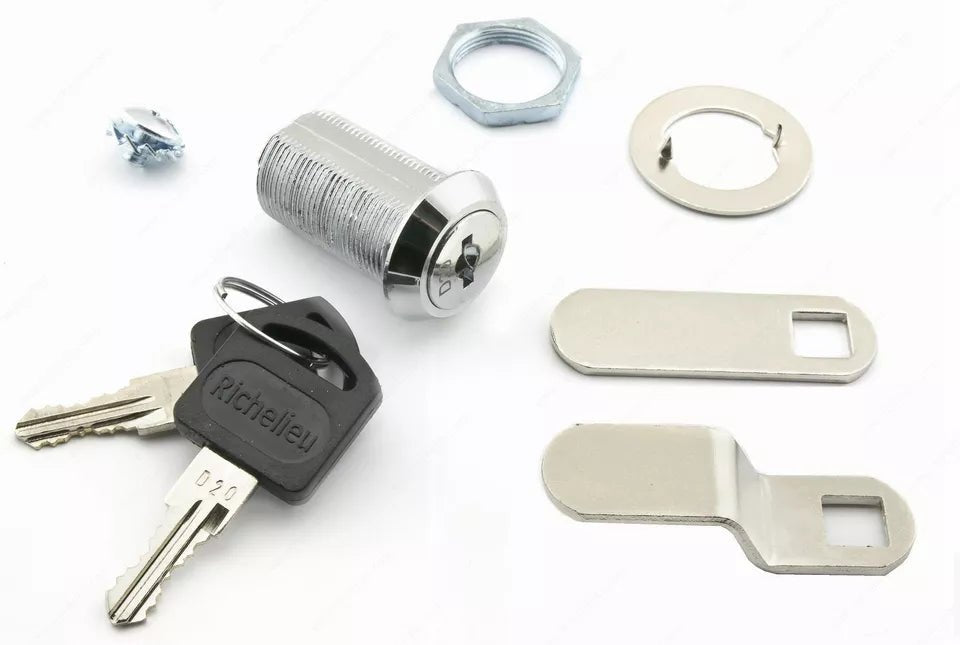

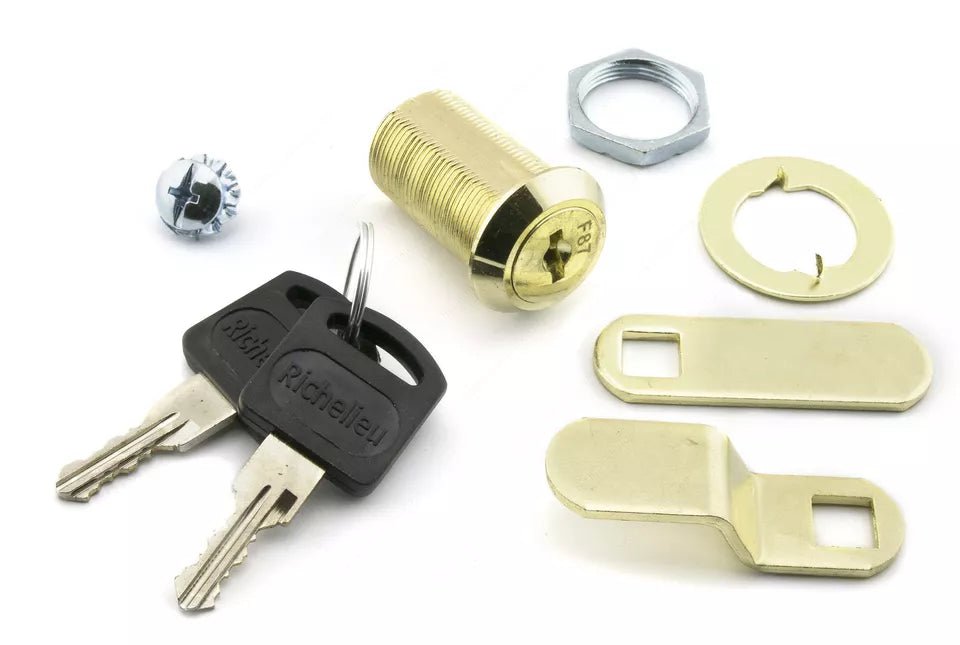

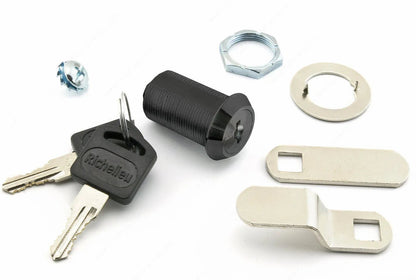

Included Product(s):

  • 1 Housing
  • 1 Stem Washer
  • 1 Hexagonal Collar Nut
  • 1 Straight Cam
  • 1 Angled Cam (120°)
  • 1 Screw
  • 1 Eyelet Washer
  • 2 Keys

This Richelieu cam lock is the perfect combination of security and convenience, providing peace of mind with its reliable construction and versatile design. Upgrade your cabinet and drawer security today with this high-quality cam lock from Richelieu Hardware.
