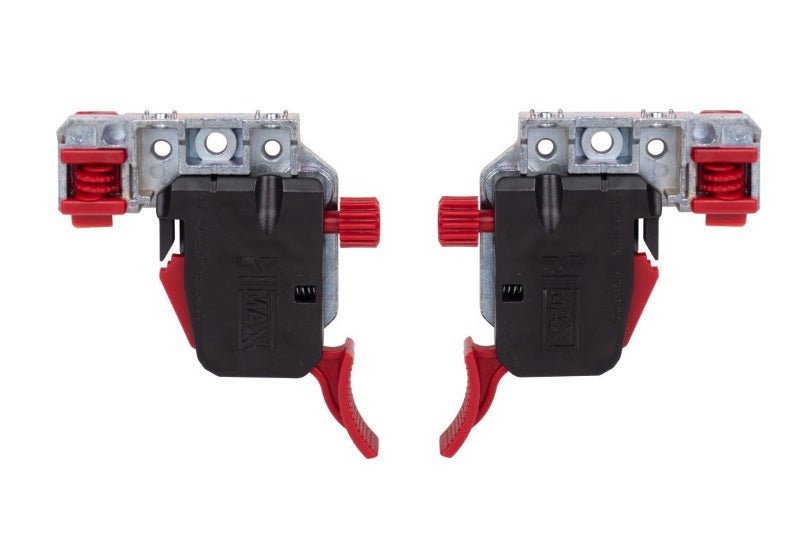

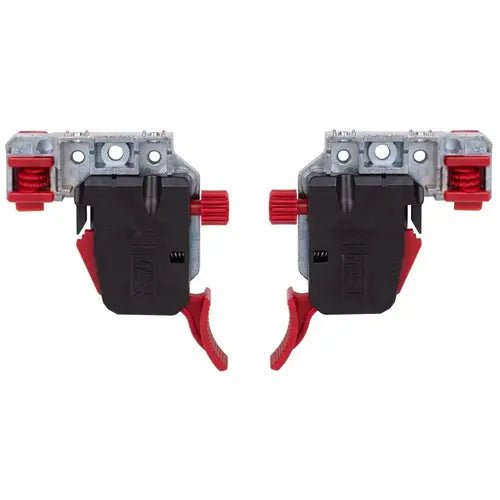

HR MAX 4-Way Adjustable Undermount Clip for USMAX2 Drawer Slides
Introducing the HR MAX 4-way Adjustable Clip—a best-in-class, heavy-duty solution engineered for flawless drawer front alignment. Designed for seamless performance with HR MAX USMAX2 Synchronized and Standard series undermount slides, these clips feature a robust zinc die-cast base and intuitive alignment wheels. They provide superior adjustability for both face frame and frameless cabinetry, ensuring a perfect fit every time.
Key Features:
-

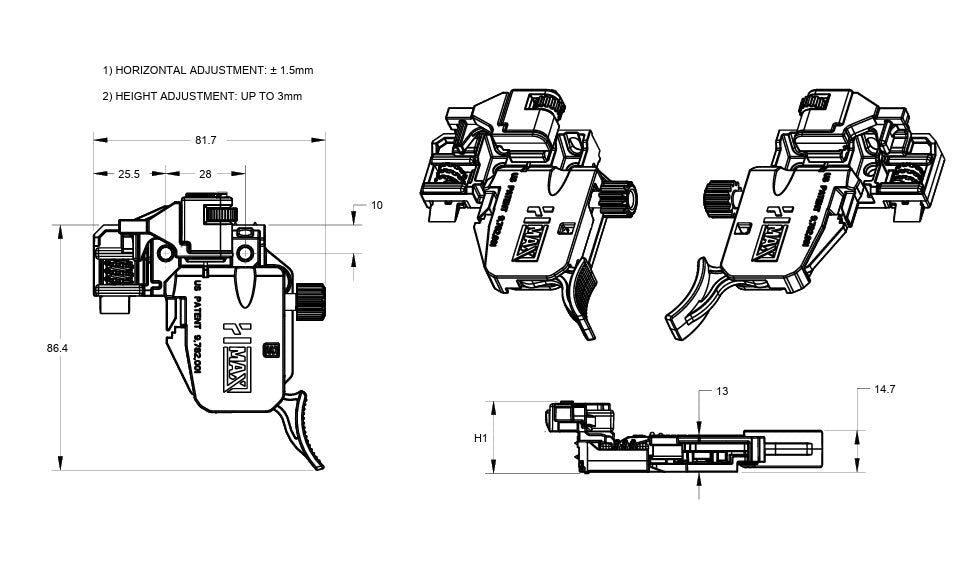

Superior Adjustability (4-Way): Features vertical and horizontal adjustment for perfect drawer front alignment.
- Vertical: Up to 3 mm (1/8")
- Horizontal (Overlay): ±2 mm (5/64")
- Intuitive Alignment: Improved adjustment wheels with a center marker on the left/right wheel provide a convenient neutral starting point for adjustments.
- Enhanced Feedback: Tactile feedback on the left/right adjustment wheel ensures precision during fine-tuning.
- Heavy-Duty Construction: A thick zinc die-cast base creates a robust platform for strength and longevity.
- Easy Installation: Designed for easier installation with strong slide-clip engagement and angled attachment points that help keep the clip flush with the drawer box bottom.
- Aesthetics: All hardware is concealed for a clean, premium look.
- Support & Warranty: Backed by a lifetime warranty and knowledgeable sales and support staff.
- Designed for Hardware Resources undermount drawer slide systems and other compatible undermount slide systems with matching clip geometry. Compatibility with non-Hardware Resources brands may vary.
Specifications
| Attribute | Detail |
|---|---|
| Brand / Series | HR Max / USMAX2 Series |
| Material | Steel / Zinc Die-Cast Base |
| Configuration | 4-Way Adjustable |
| Mount Type | Undermount |
| Load Rating | 75 lbs per pair |
| Drawer Box Side Thickness | 1/2" – 5/8" |
| Sold By | Pair (1 Right, 1 Left) |
| Required Screws (Not Incl.) | Recommended: #6 x 5/8" pan washer head |
Professional Installation Tip
When installing the undermount clips, attach the front screws at a 15–25 degree angle. Angles outside of this range may prevent the clip from sitting correctly and flush with the bottom of the drawer box.
Correct Placement Note
The release clips are an integrated part of the slide mechanism, located toward the front section of the slide (cabinet opening side) where they can be reached when the drawer is fully extended. They are responsible for engaging and disengaging the drawer box from the slide carriage.
Note: Images may show installation from different viewing angles. The release clips are accessed from the front when the drawer is fully extended and are part of the integrated slide mechanism.
