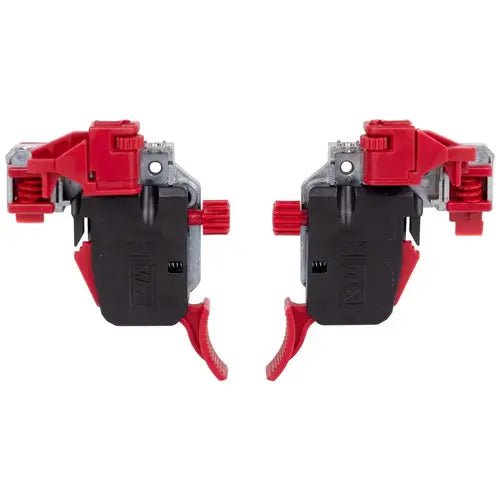

HR MAX 6-Way Adjustable Undermount Clip for USMAX2 Series Slides

Upgrade your cabinet hardware with the HR MAX 6-Way Adjustable Clip, a best-in-class solution for achieving perfect drawer front alignment. This heavy-duty clip series is compatible with HR MAX USMAX2 Synchronized and Standard series undermount slides. The robust zinc die-cast base creates a stable platform, while intuitive alignment wheels and tactile feedback ensure precise control during adjustments.

Designed for easier installation and backed by a lifetime warranty, HR MAX clips provide maximum versatility for face frame, frameless, and essential inset applications.

Key Features & Adjustability

• 6-Way Adjustability: Provides complete control over drawer front placement, including vertical, horizontal, and depth adjustments.
  • Vertical Adjustment: Up to 3 mm (1/8")
  • Horizontal/Overlay Adjustment: ±2 mm (5/64")
  • Depth Adjustment: Up to 3 mm (1/8")
• Superior Precision: Improved adjustment wheels and tactile feedback on the left/right wheel ensure accuracy. A center marker provides a convenient neutral starting point.
• Durable Construction: Built with a zinc die-cast base and steel components for long-lasting performance.
• Easy Installation: Features strong slide-clip engagement and angled attachment points that facilitate screwing and ensure the clip sits flush with the bottom of the drawer box.
• Universal Compatibility: Compatible with HR MAX USMAX2 Synchronized and Standard series undermount slides.
• Lifetime Warranty: Trust in a brand that is Built Around You and backed by a comprehensive lifetime warranty.
• Designed for Hardware Resources undermount drawer slide systems and other compatible undermount slide systems with matching clip geometry. Compatibility with non-Hardware Resources brands may vary.

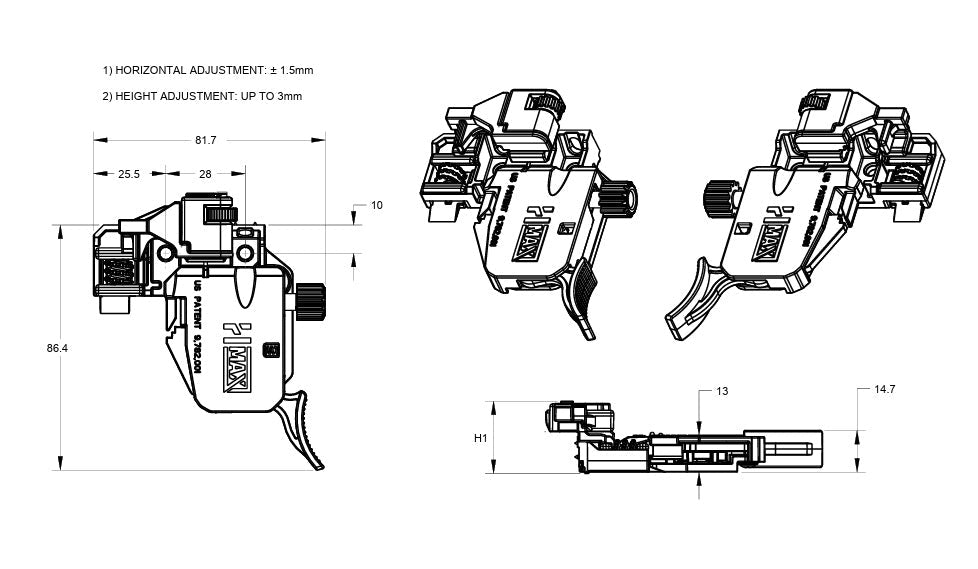

Specifications

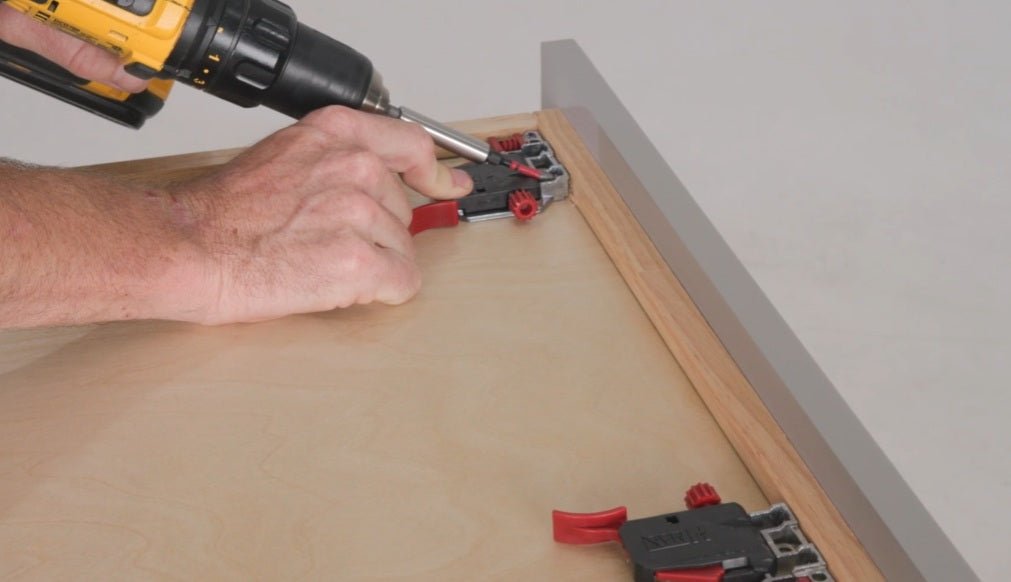

Professional Installation Tip

When installing the undermount clips, attach the front screws at a 15–25 degree angle. Angles outside of this range may prevent the clip from sitting correctly and flush with the bottom of the drawer box.

Correct Placement Note

The release clips are an integrated part of the slide mechanism, located toward the front section of the slide (cabinet opening side) where they can be reached when the drawer is fully extended. They are responsible for engaging and disengaging the drawer box from the slide carriage.

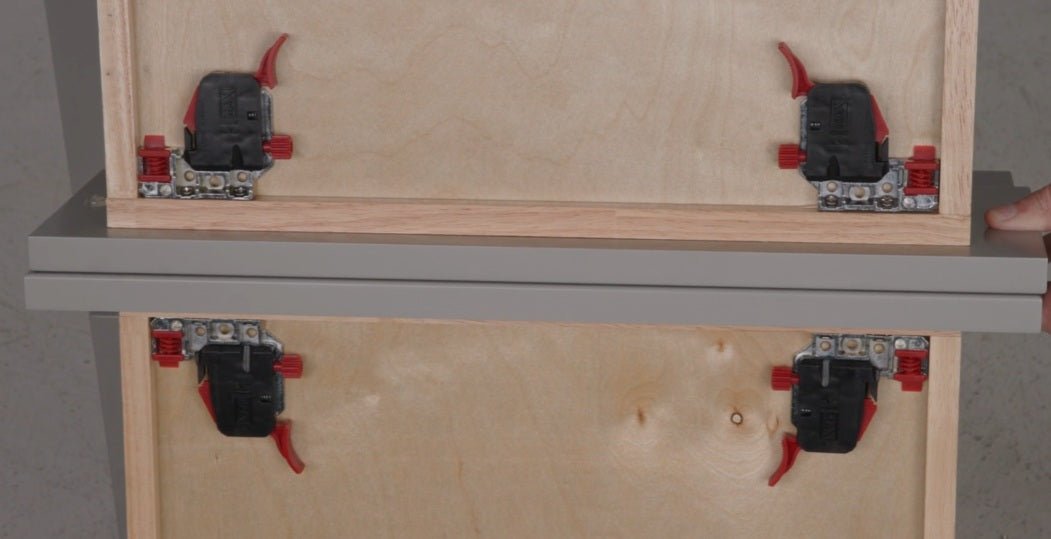

Note: Images may show installation from different viewing angles. The release clips are accessed from the front when the drawer is fully extended and are part of the integrated slide mechanism.
