Name: TAG Hardware Custom Cut-to-Size Premium Concave Closet Rod with End Supports | Made-to-Order Wardrobe Hanging Rod with Insert Plastic Cap (12 - 92 Inches)
Brand: TAG Hardware
Price: 39.42 USD
Availability: InStock
Rating: 5.0 (1 reviews)

Product details

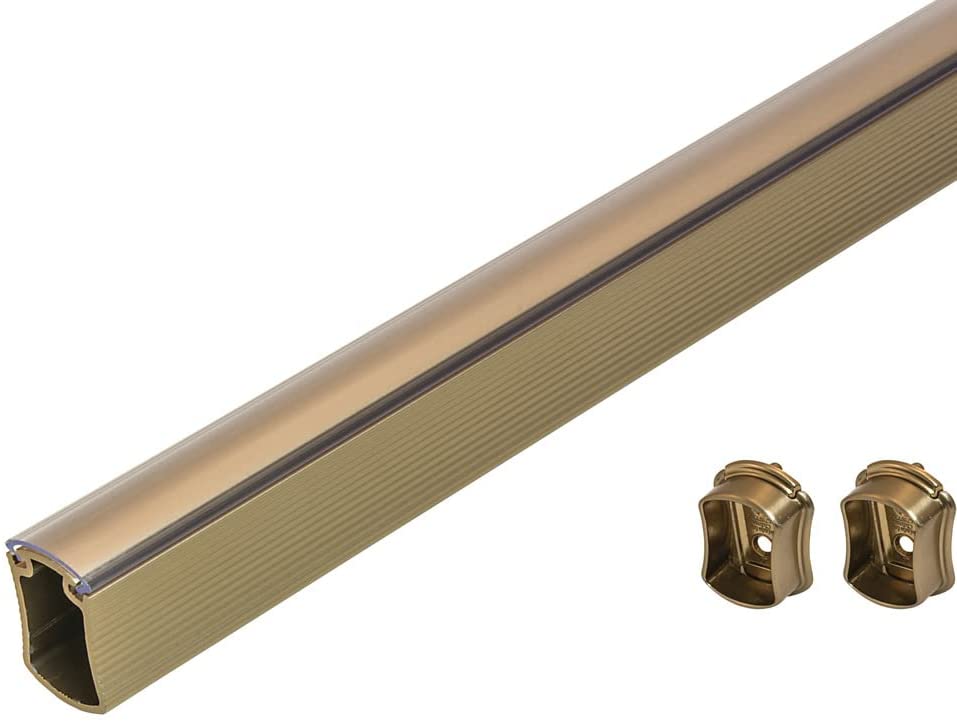

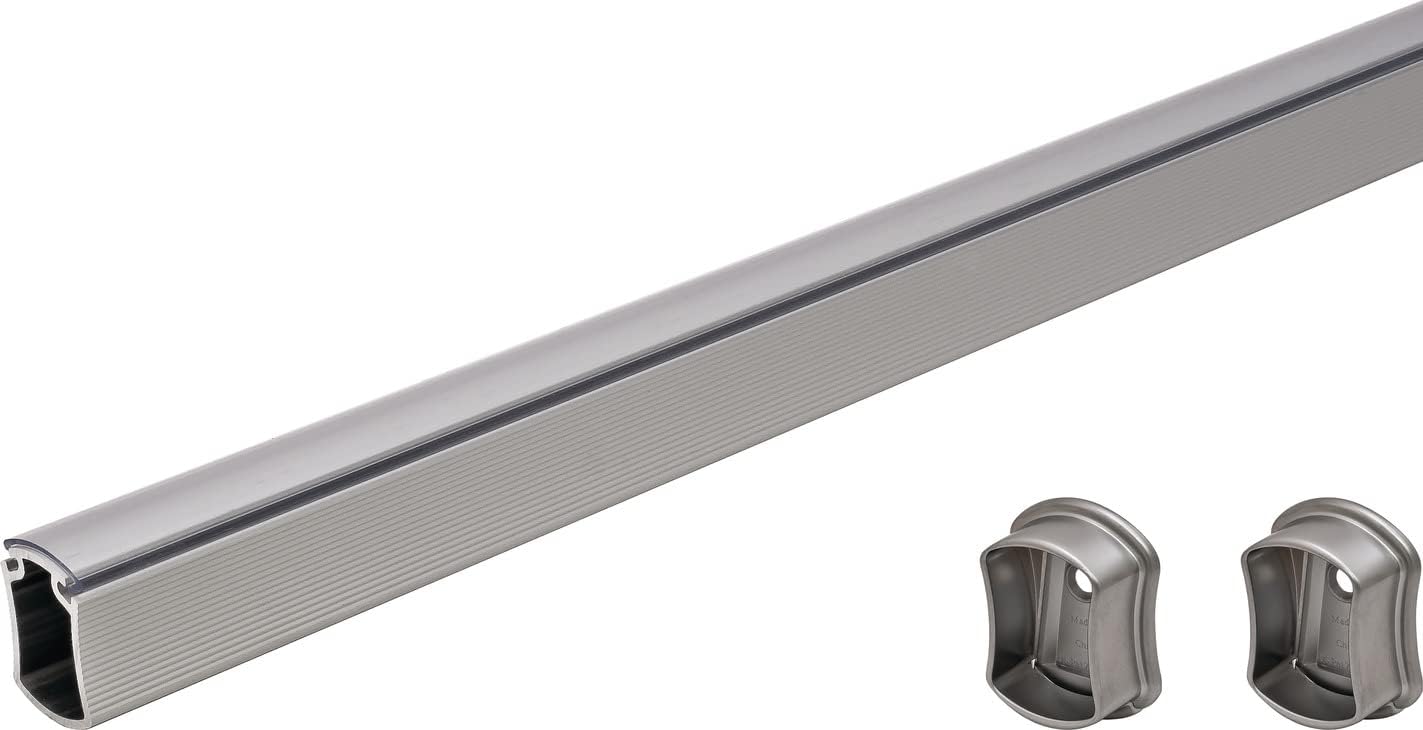

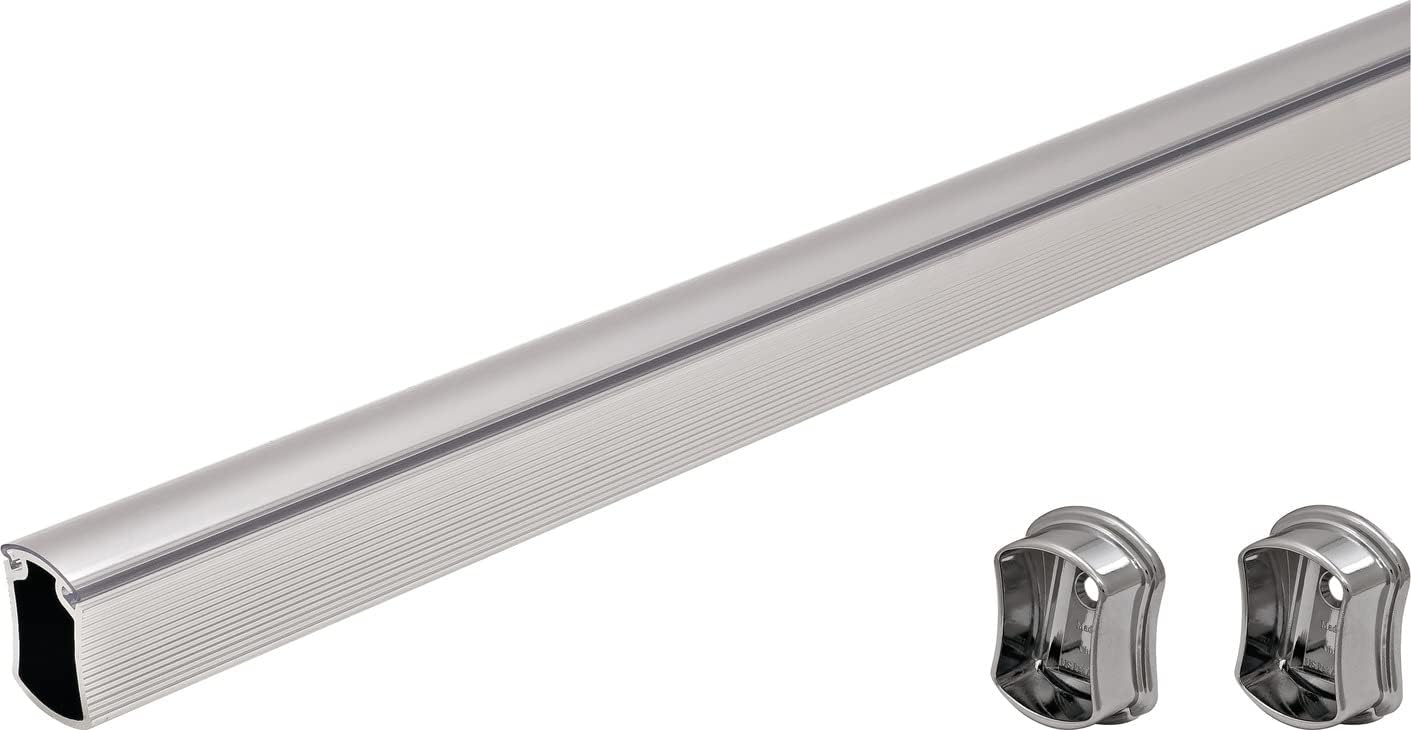

TAG Hardware Custom Cut-to-Size Premium Concave Closet Rod with End Supports and Installation screws | Made-to-Order Wardrobe Hanging Rod with Insert Plastic Cap (12 - 92 Inches). Create a perfect fit with a premium, made-to-order hanging solution for your wardrobe. Constructed from heavy-duty, 14-gauge anodized aluminum, this rod offers superior durability and strength for hanging garments.

Key Features:

Custom Fit: We offer complimentary custom cutting up to 92 inches to ensure a perfect, tailored fit for your specific space.

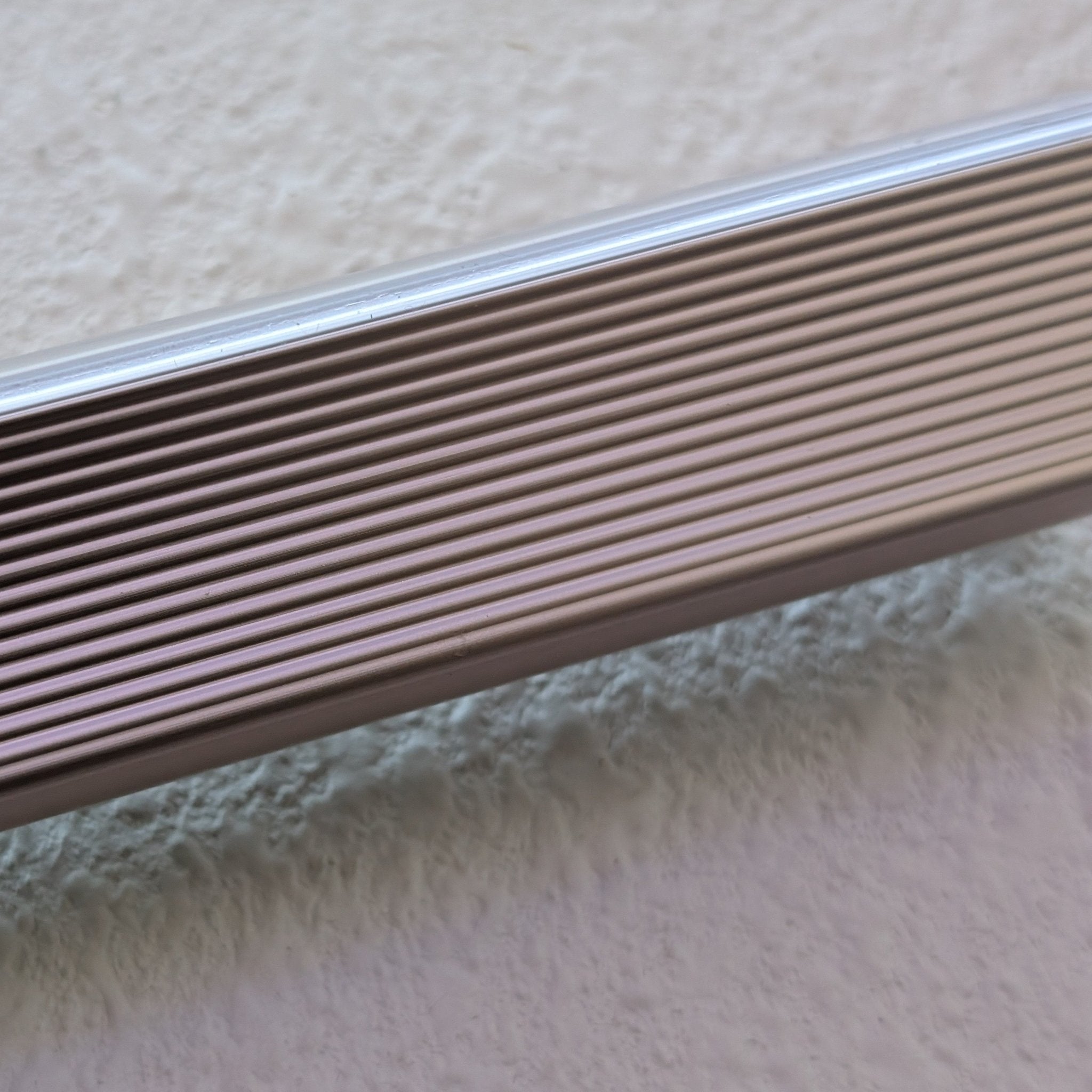

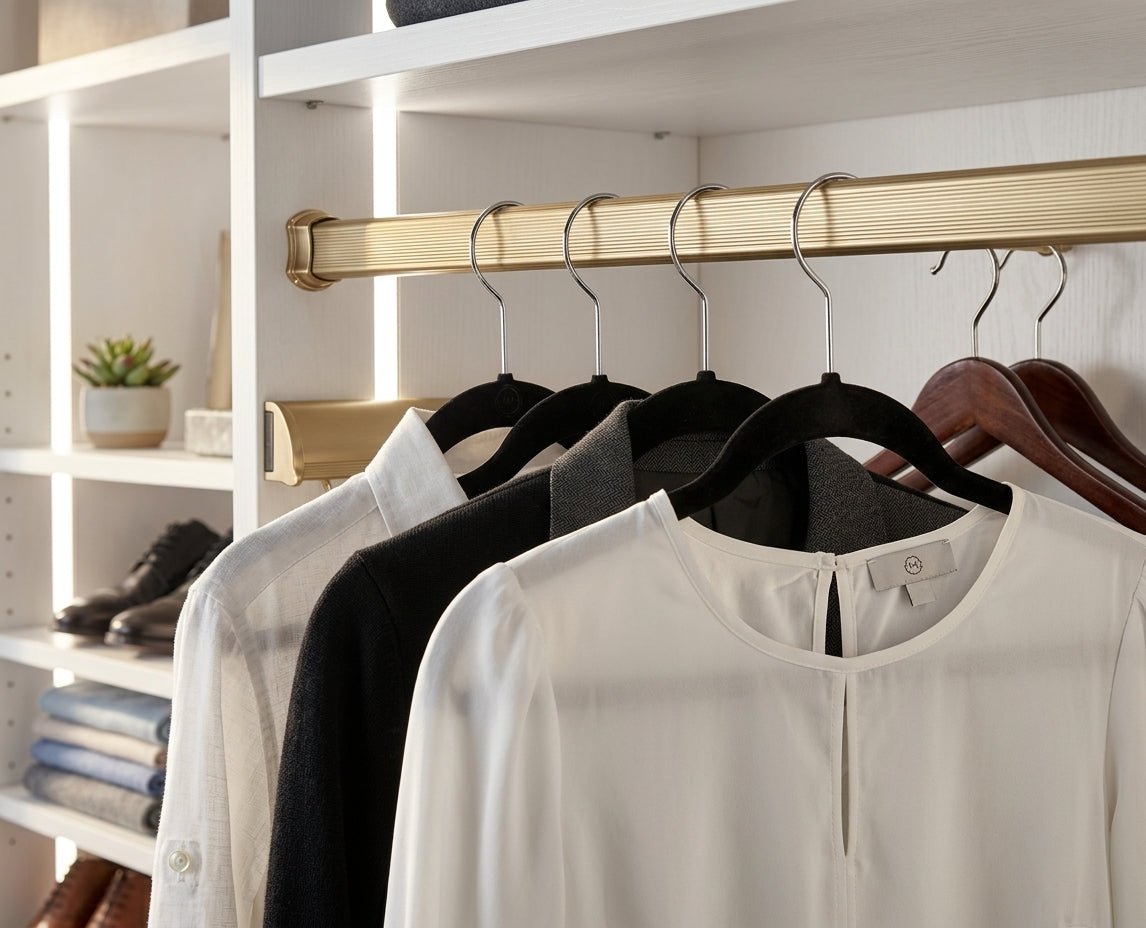

Elegant Design: The unique concave shape and elegant matte finishes add sophisticated, modern touch to any closet, wardrobe, or display.

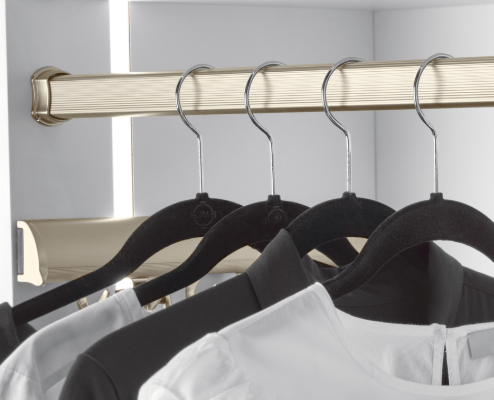

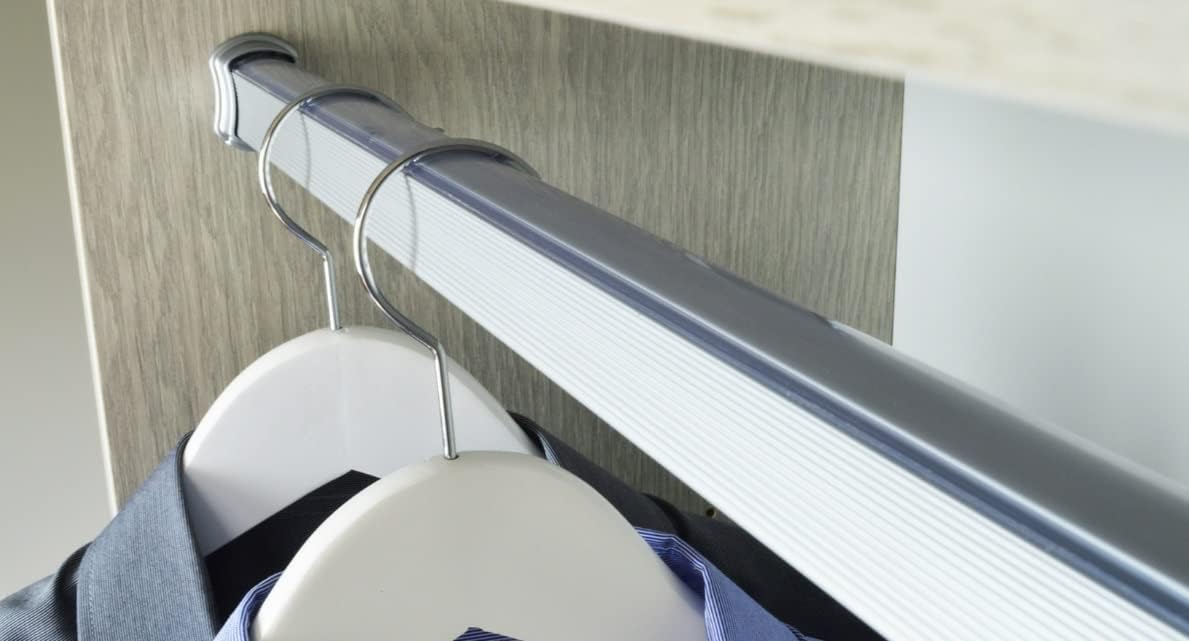

Smooth & Silent: A protective plastic insert cap ensures hangers glide smoothly and quietly, enhancing your daily experience.

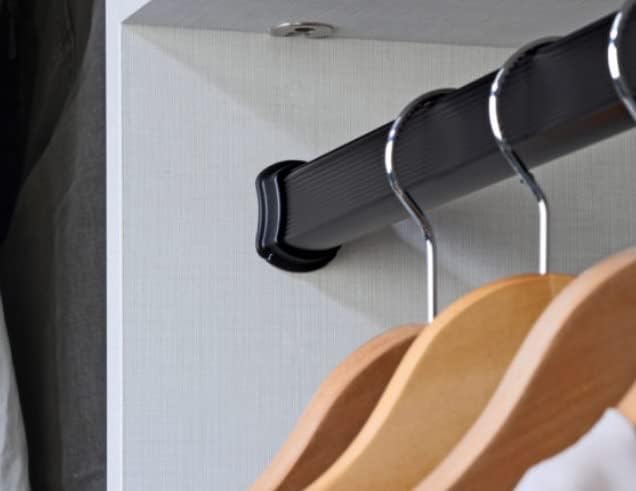

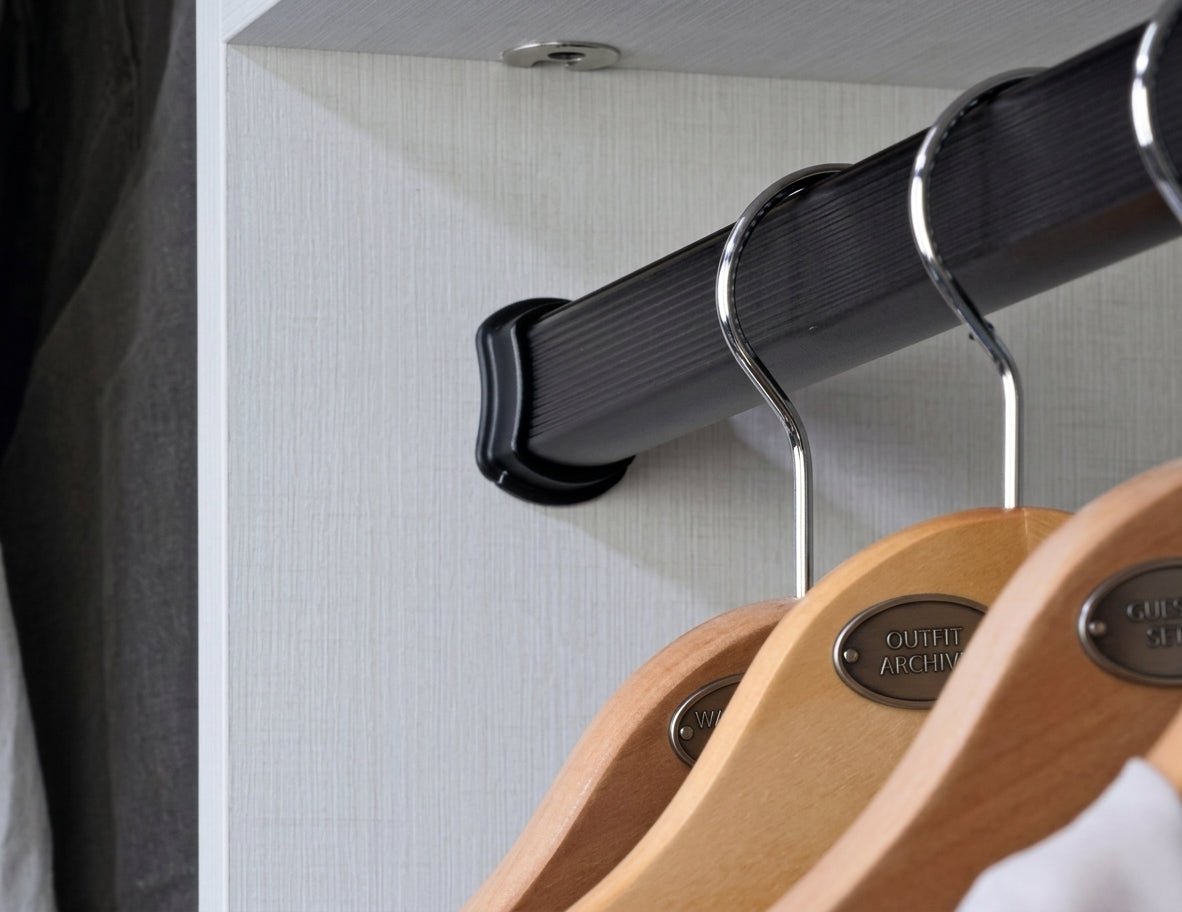

Patented Two-Piece End Support Design: Featuring TAG Hardware's patented two-piece end support design, the rod end is securely enclosed for a clean, finished appearance with no exposed or sharp tube edges. The concealed mounting design provides a secure, professional installation and integrates with standard closet system holes.

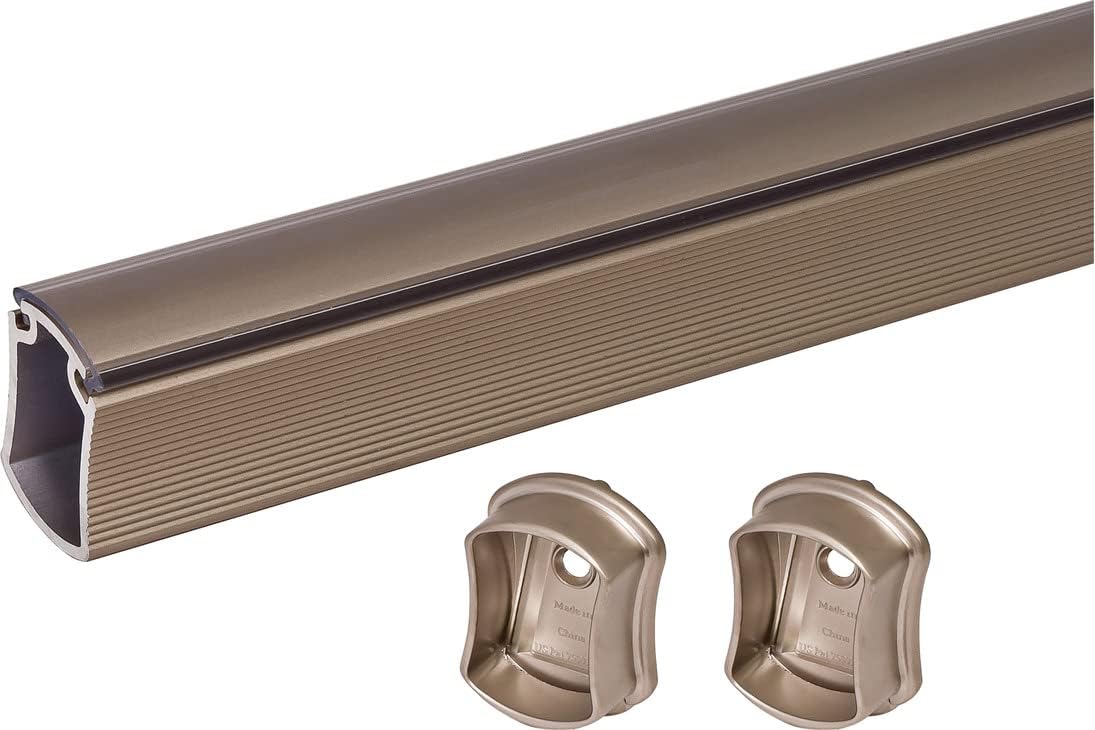

Complete Solution: Each order includes the custom-cut rod and the necessary end supports with patented two-piece end caps, installation screws for a safe, streamlined appearance.

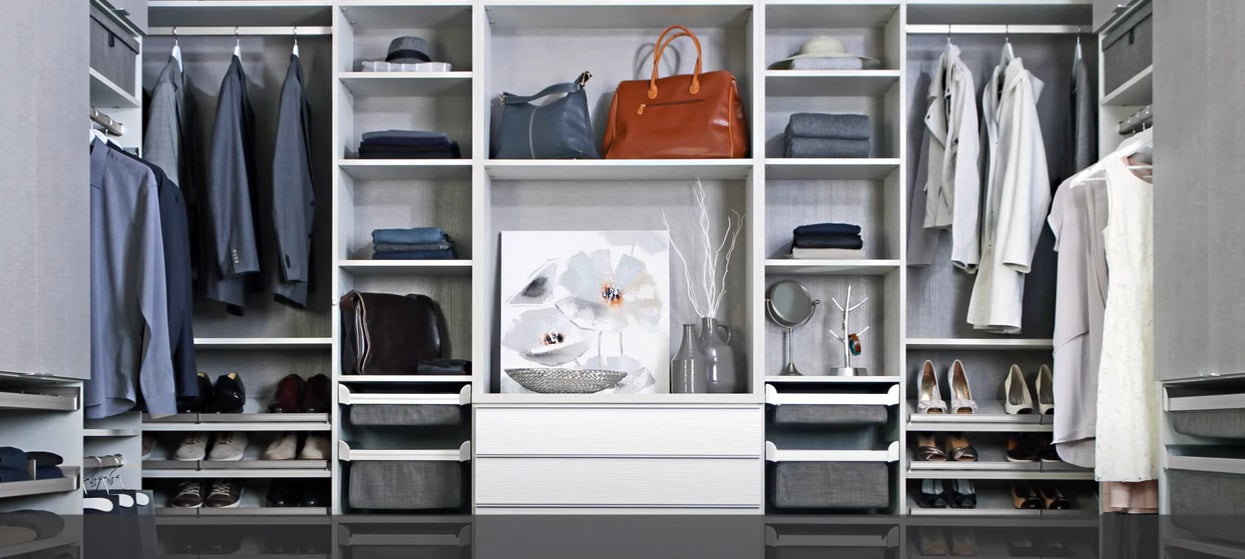

Versatile Applications: Ideal for residential closets, boutique displays, laundry rooms, and office spaces.

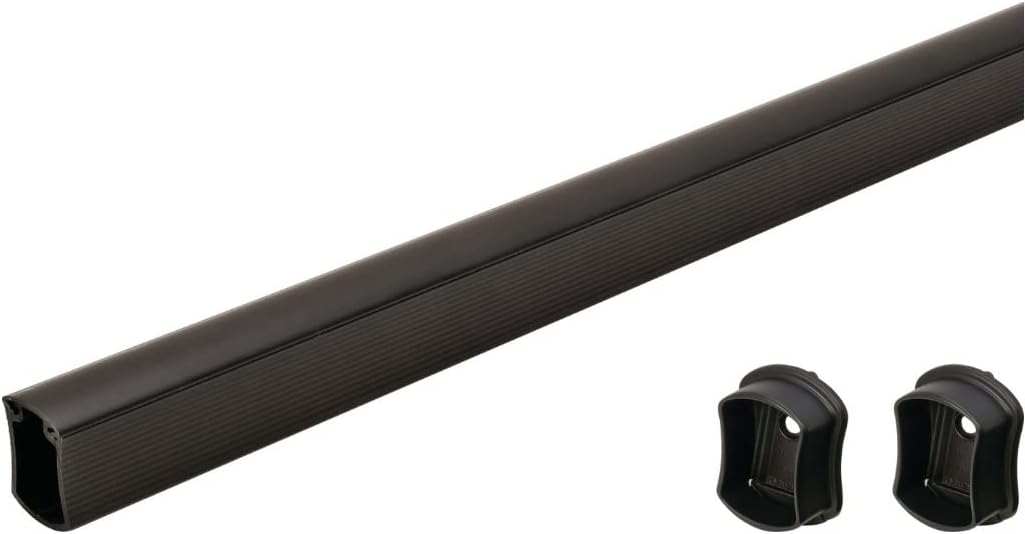

Includes: Each kit comes with 1 (One) Rod, 2 (two) End supports with Installation screws.

For rods over 36", we recommend a center support for additional stability. Actual weight capacity of approximately 75–150 lbs depends on rod length, mounting surface, support configuration, and installation method.

IMPORTANT ORDERING & MEASUREMENT INSTRUCTIONS

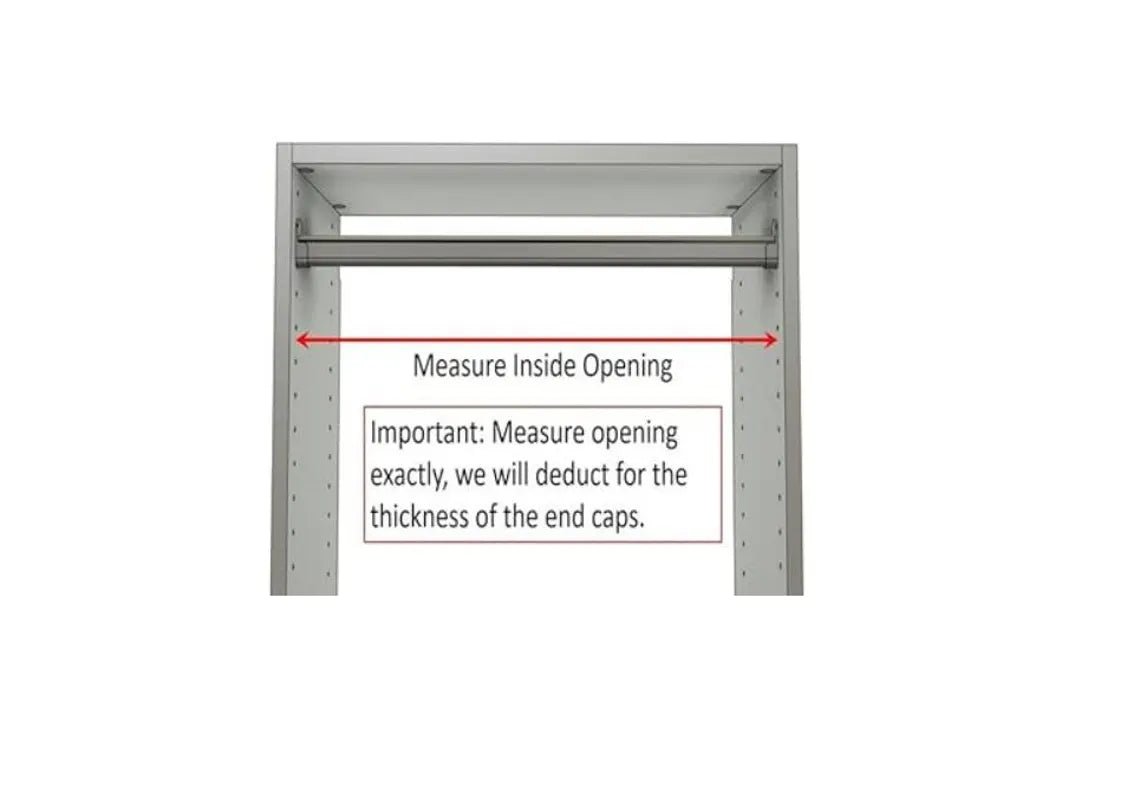

Each rod is fabricated slightly shorter than the stated opening to allow for the thickness of the end supports.
We automatically deduct 1/4 inch from the total length to ensure proper fit once end supports are installed.
Please measure the opening exactly wall-to-wall for best results.
Precision fractional lengths are required.
Example: If your opening is 25 3/4", enter 25 inches and select 3/4 as the fraction (provide these details in customer notes).
These rods are NOT expandable or adjustable.
Each rod is custom cut to the exact length you provide.
Size ranges (example: 12–30 inches, 31–48 inches, etc.) indicate the allowable cutting range only.
They do not mean the rod adjusts within that range.

IMPORTANT NOTE ABOUT PRODUCT FINISH & IMAGES: We make every effort to provide accurate images and color representation of our products. However, slight variations between the product shown online and the actual product may occur due to differences in screen brightness, resolution, color calibration, lighting conditions, and display settings across computers, tablets, and mobile devices.

For a closer representation of the actual finish, we recommend reviewing the product videos and additional images, when available, and ordering samples when offered.

Installation Instructions

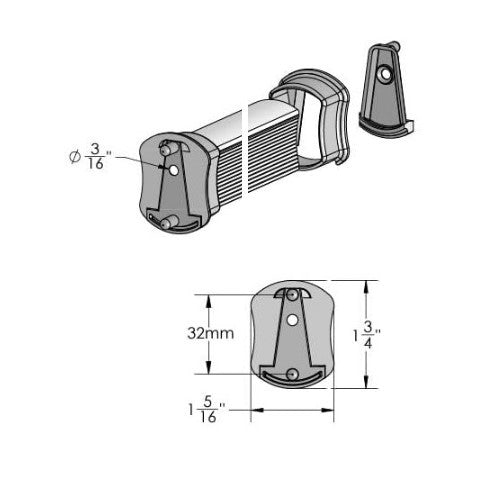

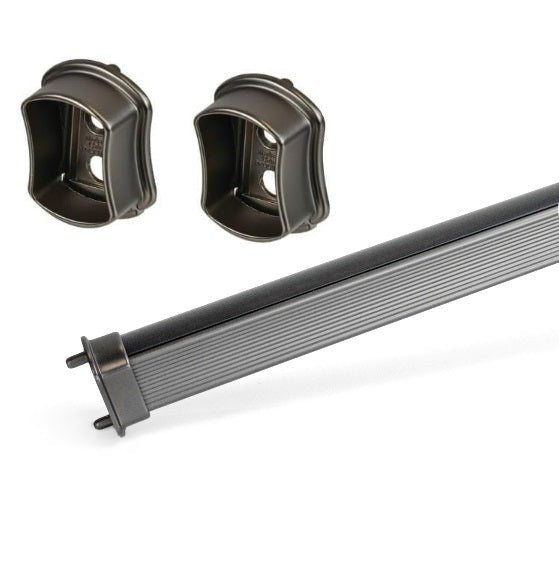

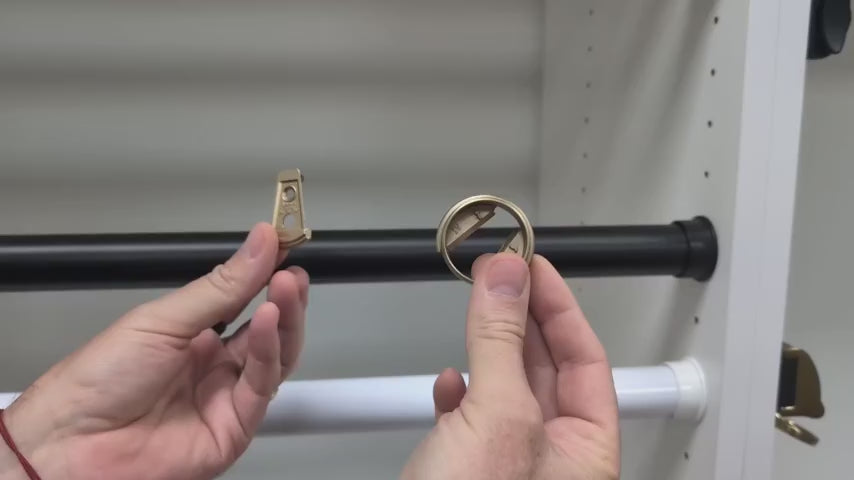

The TAG Hardware Concave Wardrobe Rod features a patented two-piece end-support design. Each support consists of a mounting base and a precision-fit insert that fits into the end of the rod. Together, these components securely hold the rod and provide a clean, finished appearance.

1. Position the End Supports

Determine the desired height and location of the rod.
For standard closet systems with 5 mm (3/16") system holes, align the two mounting pins on each support with the corresponding holes in the side panel.
For other mounting surfaces, position the supports where desired and mark the screw locations.

2. Secure the End Supports

Secure both mounting bases using the included screws when installing into wood or similar materials.
The two mounting pins help keep the support properly aligned and prevent it from rotating.
If installing into drywall, metal, MDF, particleboard, or another material, use screws or anchors appropriate for that specific mounting surface.

3. Install the Rod Inserts

Insert the supplied support insert into each end of the concave rod. Make sure each insert is fully seated inside the rod.
The insert is designed to work with the mounting base and securely support the rod end.

4. Install the Rod

Place the rod between the two mounted end supports and seat both ends fully into the supports.
Make sure the rod is properly aligned and both ends are securely seated before applying any weight.

5. Final Check

Before loading the rod, confirm that:

Both end supports are securely fastened.
Both rod ends are fully seated in the supports.
The rod is level and properly aligned.
The supports are stable and do not move or rotate.

The rod is then ready for normal use.

Important Installation Notes

Patented two-piece design: The mounting base and rod insert work together to securely support the rod while providing a clean, finished appearance.
Dual mounting pins: Help maintain proper alignment and prevent the support from rotating.
Standard closet-system holes: Designed to fit standard 5 mm (3/16") system holes.
Mounting hardware: Included screws are intended for wood or similar materials. For other mounting surfaces, use the appropriate screws or anchors for that material.

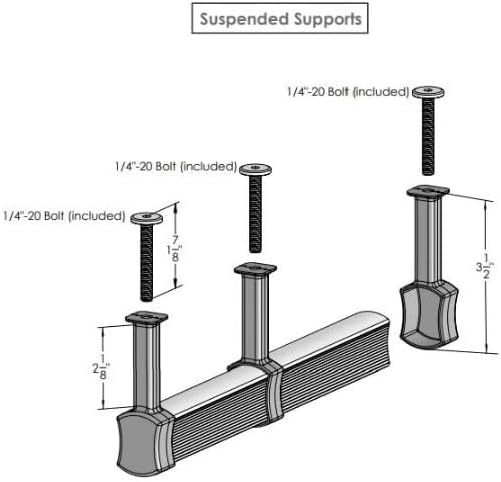

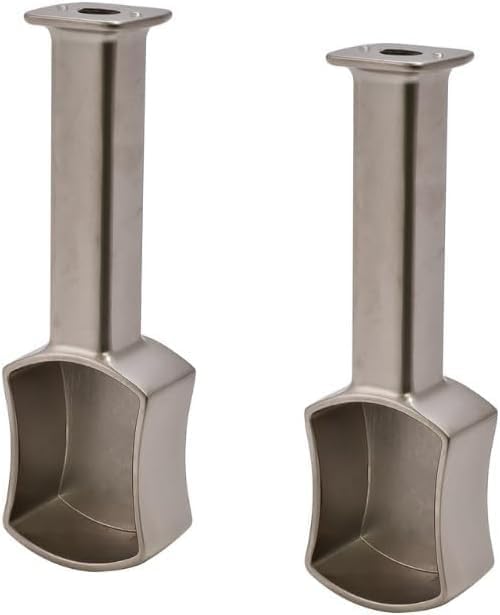

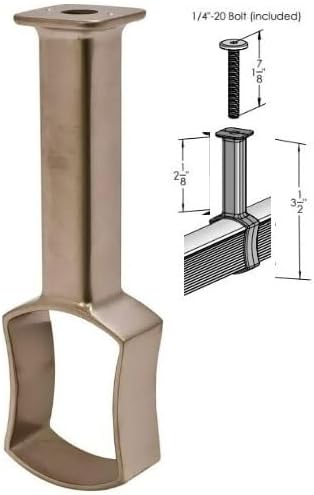

Longer rods: A center support is recommended for longer installations for additional stability.
Installation video: The TAG round-rod installation video demonstrates the same patented two-piece end-support installation system used with the concave rod.
